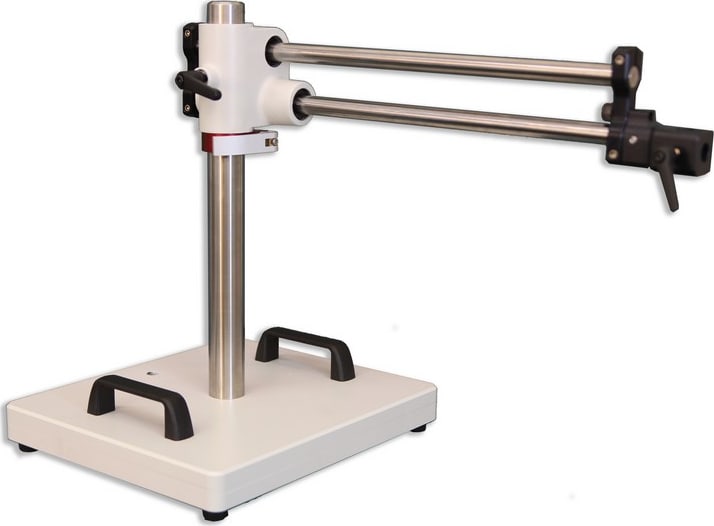

BAS-3 Heavy Duty Dual Boom Stand with 5/8 bonder pin holder for EM Series heavy duty Dual Ball Bearing arm industrial-type boom stand has a 5/8” Bonder Mount socket at the end of the horizontal arm to perfectly accept industry standard focus blocks with a 5/8” bonder pin dowel. The BAS-3 will accept Meiji Techno’s Tilting Special FS (Coarse) and FSC (Coarse and Fine) 5/8” bonder pin focus blocks. The BAS-3 provides complete flexibility for smooth horizontal and vertical movement and adjustment. The BAS-3 uses linear ball bearings to support the horizontal arm, allowing it to glide over the work surface with none of the binding inherent in other boom stands. It is now possible to scan a large flat area, such as a printed circuit board, by simply guiding the microscope with your hands. This is best made heavy Duty Boom stand from U.S.A. There is zero friction motion from precision roller bearings machined into cast housings along with a sturdy solid 80 lbs. metal 13 inch x 13 inch x 1.5 inch base with heavy duty rubber feet and ergonomic handles provides an excellent solution for heavy duty and industrial applications requiring smooth friction free travel.
The BAS-3 Heavy Duty Boom Stand is Meiji Techno America’s most popular Ergonomic boom stand with pillar, crossarm and a 5/8” Bonder Mount socket at the end of the horizontal arm to perfectly accept industry standard focus blocks with a 5/8” bonder pin dowel. The BAS-3 is equipped with a 635mm (25”) vertical pole and a 457.2mm (18”) horizontal pole. The BAS-3 offers minimal space requirement and greatest possible amount stability for EM Series stereo systems up to 35 lbs. There is no loss of stability even at its furthest travel.
The BAS-3 can swing out of the way easily, clearing the workstation for other tasks. The horizontal arm can be moved freely and smoothly left to right or can be securely locked into position with our spring loaded handle knobs. The vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies. Anti-rotation is stabilized by a locking pin on the vertical post. The BAS-3 Heavy Duty Boom stand provides a comfortable amount of space for microscope systems that require tilt when viewing the sample at an angle. It is designed for large biological specimens to large semiconductor and electrical components. The BAS-3 is supported by a 80.00 lbs. base. This boom stand is an affordable; low cost with high quality safety features makes this boom stand unmatched value in its class. This stand has ample height and long reach to work on an inspect small to large parts under the microscope. Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns make this boom stand an excellent choice in labs and production facilities.
Modular Flexibility:
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.
Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.
Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.
Ergonomic Design:
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.
Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!
Includes:
- BAS-3 heavy duty Dual Ball Bearing arm industrial-type boom stand has a 5/8” Bonder Mount socket at the end of the horizontal arm to perfectly accept industry standard focus blocks with a 5/8” bonder pin dowel
- The BAS-3 will accept Meiji Techno’s Tilting Special FS (Coarse) and FSC (Coarse and Fine) 5/8” bonder pin focus blocks
- BAS-3 uses linear ball bearings to support the horizontal arm, allowing it to glide over the work surface with none of the binding inherent in other boom stands
- BAS-3 Heavy Duty Boom stand provides a comfortable amount of space for microscope systems that require tilt when viewing the sample at an angle
- 635mm (25”) vertical pole (Included)
- 457.2mm (18”) horizontal pole (Included)
- Minimal space requirement and greatest possible amount stability for RZ stereo system up to 35 lbs
- No loss of stability even at its furthest travel
- The BAS-3 can swing out of the way easily, clearing the workstation for other tasks
- Vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies
- Anti-rotation is stabilized by a locking pin on the vertical post
- Safety Collar for vertical and horizontal stability
- BAS-3 is equipped by a 80.00 lbs. base
- Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns make this boom stand an excellent choice in labs and production facilities
- High density rubber feet for vibration stability
