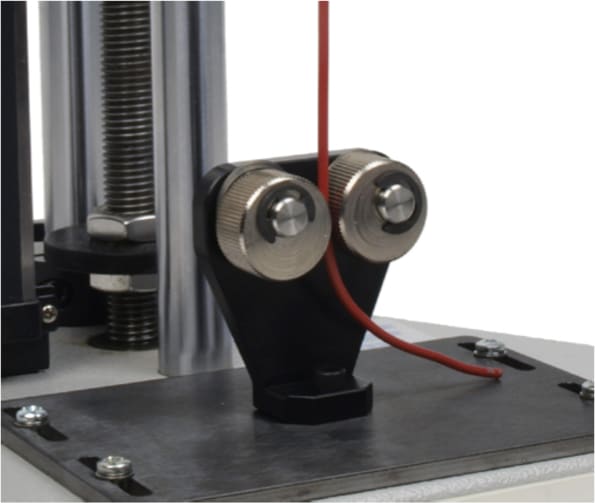

Large Double Cam Grip, 500N, 10-32 UNF Thread
Double cam grips are designed for holding insulated cables and wire. The sample is secured by the cam, which self tightens as the load is applied, minimizing slippage during testing.
Supplied individually.
Applications
Used for tensile testing of:
Double Cam Grips Series Comparison
| Model | Load Capacity | Thread 1 | Max. Sample Thickness | Max. Sample Width | Length |
| 432-387 | 500 N / 50 kgf / 110 lbf | 10-32 UNF | 2 mm (0.08") | 10 mm (0.40") | 36 mm (1.42") |
| 432-378 | 500 N / 50 kgf / 110 lbf | 10-32 UNF | 5 mm (0.20") | 15 mm (0.59") | 62 mm (2.44") |
