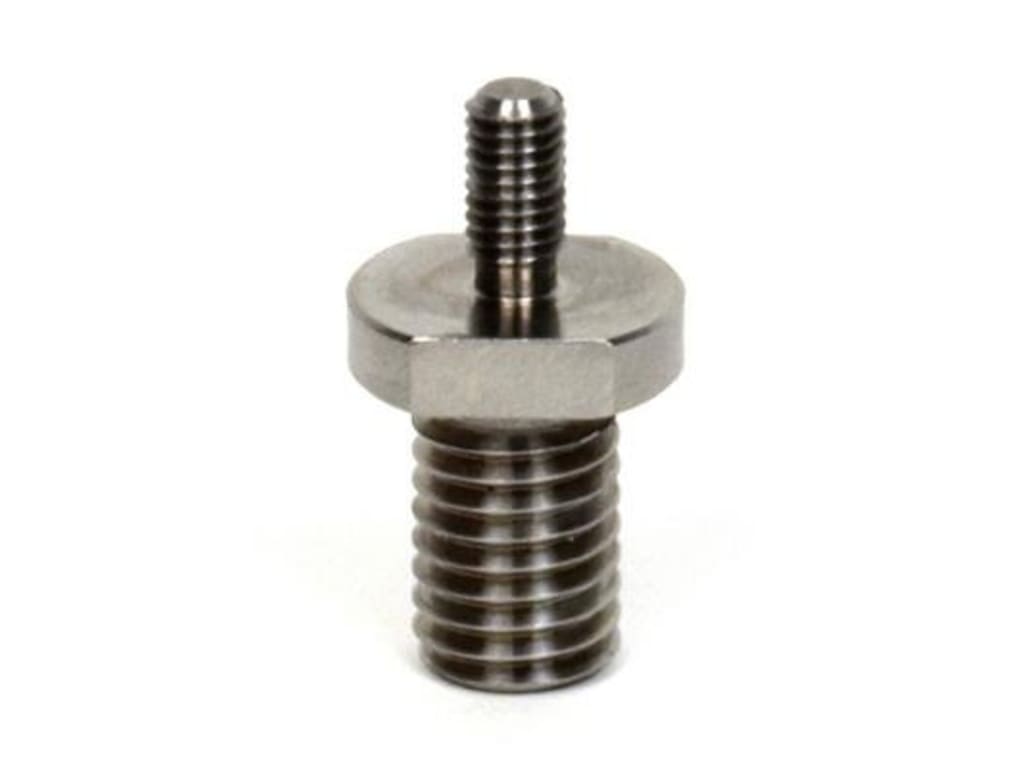

Adapter, 1 kN, 10-32 UNF to M10, M to M
Male-to-male Adapter
Allows a grip to be connected to a force gauge/loadcell or test stand where thread connections are different.
Thread Adapters Series Comparison
| Model | Load Capacity | Thread | Length |
| 432-328 | 1 kN / 100 kgf / 225 lbf | 10/32 F to 10/32 F | 30 mm / 1.18" |
| 432-329 | 1 kN / 100 kgf / 225 lbf | 10/32 F to 5/16 F | 25 mm / 0.98" |
| 432-417 | 1 kN / 100 kgf / 225 lbf | 10/32 F to M6 F | 25 mm / 0.98" |
| 432-193 | 1 kN / 100 kgf / 225 lbf | 10/32 M to M6 F | 25 mm / 0.98" |
| 432-364 | 1 kN / 100 kgf / 225 lbf | 10/32 M to M10 M | 29 mm / 1.14" |
| 432-293 | 5 kN / 500 kgf / 1100 lbf | 5/16 F to 5/16 F | 35 mm / 1.38" |
| 432-330 | 5 kN / 500 kgf / 1100 lbf | 5/16 F to M6 F | 25 mm / 0.98" |
| 432-331 | 5 kN / 500 kgf / 1100 lbf | 5/16 M to M12 M | 29 mm / 1.14" |
| 432-332 | 5 kN / 500 kgf / 1100 lbf | 5/16 M to M12 F | 34 mm / 1.34" |
| 432-333 | 5 kN / 500 kgf / 1100 lbf | 5/16 M to M10 M | 29 mm / 1.14" |
| 432-334 | 1 kN / 100 kgf / 225 lbf | M6 F to M6 F | 25 mm / 0.98" |
| 432-335 | 10 kN / 1000 kgf / 2200 lbf | M10 M to M12 M | 29 mm / 1.14" |
