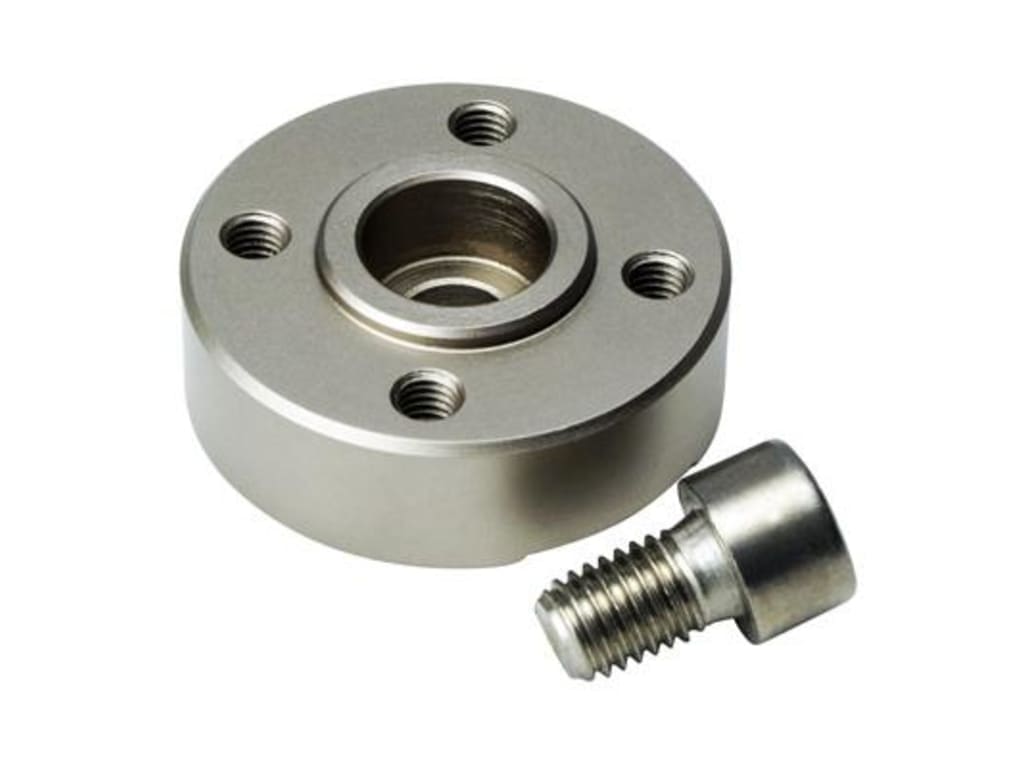

Mecmesin 432-285 - QC Type D Loadcell Mounting Plate, 19 mm Slot, c/w M6 Bolt

Name: Mecmesin 432-285 - QC Type D Loadcell Mounting Plate, 19 mm Slot, c/w M6 Bolt
Brand: Mecmesin
SKU: MecMesin432-285
Price: 140.00 USD
Availability: InStock

0 reviews | Model: Mecmesin 432-285

Compare

QC Type D Loadcell Mounting Plate, 19 mm Slot, c/w M6 Bolt

QC Type D Loadcell Mounting Plate
Fitted with 19 mm wide slot
With M6 bolt for 500 N S-beam loadcells
2 year warranty

View Product Details

Available Options

Your Price: $140.00

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Mecmesin 432-285 QC Type D Loadcell Mounting Plate, 19 mm Slot, c/w M6 Bolt	Mecmesin 432-452 QC Type M Loadcell Mounting Plate, 13 mm Slot, c/w M6 Bolt	Mecmesin 432-286 QC Type E Loadcell Mounting Plate, 19 mm Slot, c/w M10 Bolt	Mecmesin 432-287 QC Type F Loadcell Mounting Plate, 25 mm Slot, c/w M12 Bolt	Mecmesin 432-288 QC Type G Loadcell Mounting Plate, 25 mm Slot, c/w M16 Bolt
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Mecmesin 432-285

QC Type D Loadcell Mounting Plate
Fitted with 19 mm wide slot
With M6 bolt for 500 N S-beam loadcells

QC Type D Loadcell Mounting Plate, 19 mm Slot, c/w M6 Bolt

QC Type D Loadcell Mounting Plate c/w M6 bolt.

Fitted with 19 mm slot to suit 500 N S-beam loadcells. The M6 bolt is used to secure the mounting plate onto the loadcell so that a QC type C Male Post (432-284) can be affixed to the loadcell.

QC Mounting Plates Comparison

Model	Slot	Bolt included
432-452	13 mm wide slot	M6 bolt for 100 N & 200 N S-beam loadcells
432-285	19 mm wide slot	M6 bolt for 500 N S-beam loadcells
432-286	19 mm wide slot	M10 bolt for 1000 N S-beam loadcell
432-287	25 mm wide slot	M12 bolt for 2500 N, 5000 N & 10 kN S-beam loadcells
432-288	25 mm wide slot	M16 bolt for 25 kN S-beam loadcell

Tech Specs

Test Equipment General Attributes
Unique Features	QC Type D Loadcell Mounting Plate Fitted with 19 mm wide slot With M6 bolt for 500 N S-beam loadcells
Warranty	2 YEARS
Shipping Weight	0.50 LBS
