• Load capacity: 100 N / 10 kgf / 22 lbf
• Max load (to maintain tension): 0.5 N
• Made from aluminum
• Designed for tensile testing up to 100 N of delicate
• Fitted with a QC-20mm female hole for connection to the base of a test stand or loadcell

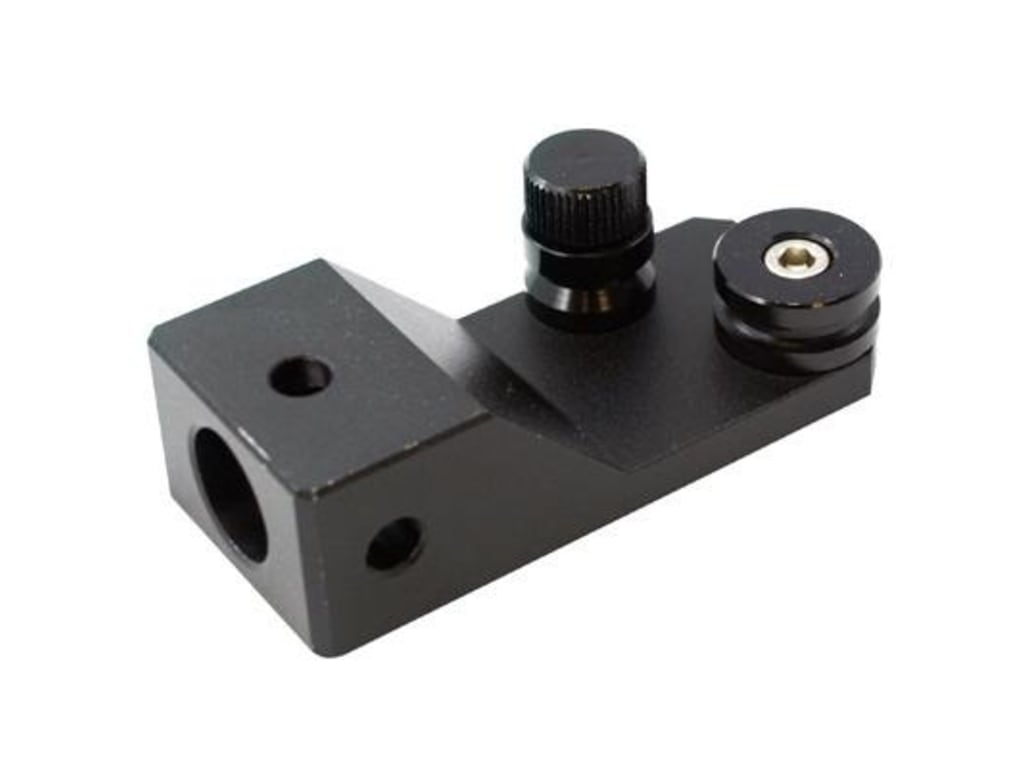

The Small Circular Bollard Grips is made from aluminum and is designed for tensile testing up to 100 N of delicate, flexible specimens such as fine threads, wires and yarns, which may break easily when clamped.

The specimen is wrapped around the bollard and the free end is clamped tightly in place using a pair of friction washers and a thumbscrew. The bollard has a single 5 mm wide smooth groove to align the specimen centrally and has a diameter of 25 mm around which it can be wound. This minimizes the chance of slippage within the grip, or of premature failure of the sample occurring due to stress concentrating at one point.

Fitted with a QC-20mm female hole for connection to the base of a test stand or loadcell.
