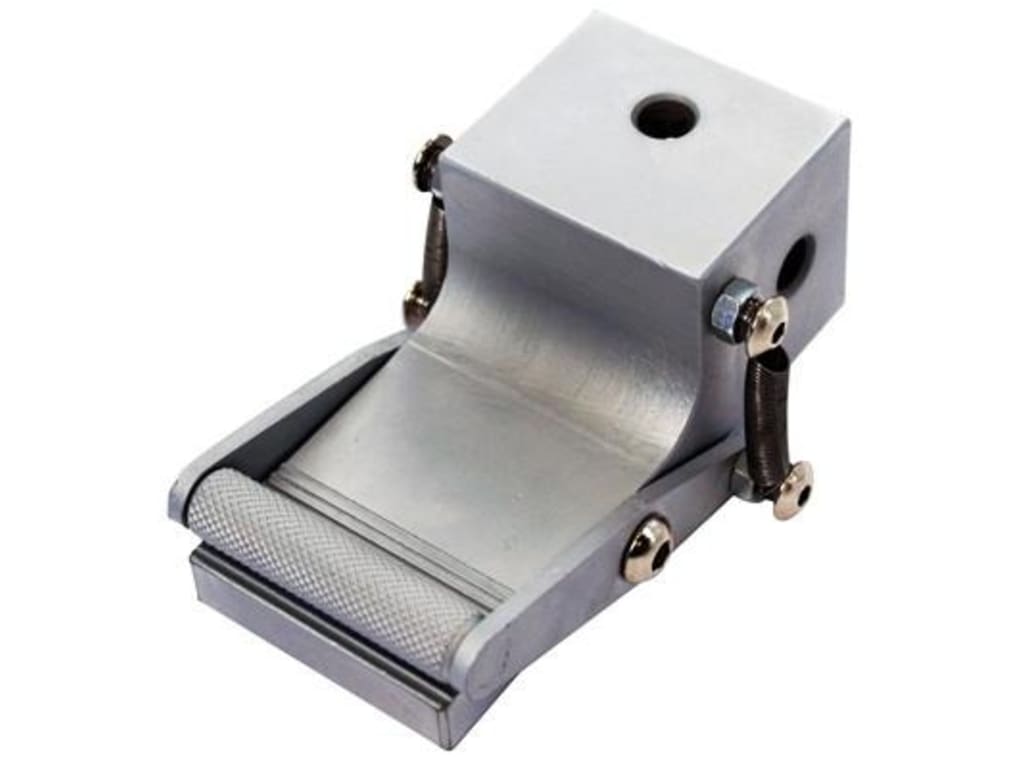

Spring-Loaded Fold Grip, 2 kN, QC-20 Fitting
Fitted with a 45mm wide roller cam having a cross-hatch knurled surface. The roller closes onto a serrated contact face of the grip body.
The specimen is folded around the knurled roller to give maximum contact area. As a load is applied to the specimen the cam self-tightens, spreading the load evenly around the cam and against the serrated body of the grip.
Used for slippy specimens where a serrated surface is necessary to bite into the material and prevent slippage.
Knurled roller, 10mm Ø
The serrated surface on the contact face of the grip body
Clamping width 45mm
Specimen thickness 0 – 5 mm
Maximum load: 2 kN
Fitted with a QC-20mm female hole for connection to the base of test stands and to loadcell
