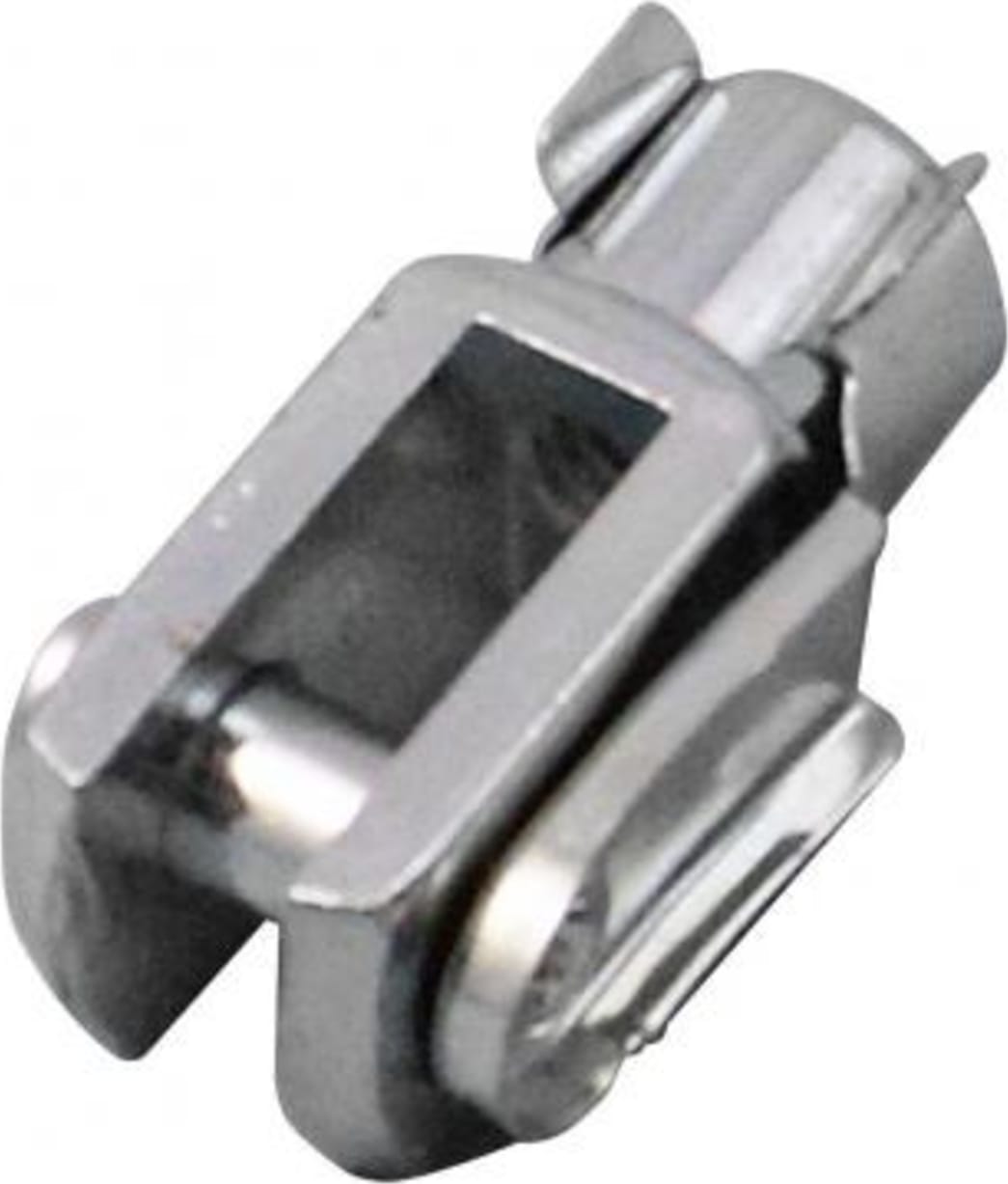

Small Clevis Grip, 500 N, M6 Thread
Small Clevis Grip fitted with female M6 thread and supplied with male grub-screw. Used for securing odd-shaped parts for testing tensile forces below 500N.
Clevis Grips custom series comparison table
| Model | Load Capacity | Thread 1 | Width | Pin Diameter | Length |
| 432-403 | 500 N / 50 kgf / 110 lbf | 10-32 UNF | 5 mm (0.20") | 5 mm (0.20") | 26 mm (1.02") |
| 432-216 | 500 N / 50 kgf / 110 lbf | M6 | 6 mm (0.24") | 6 mm (0.24") | 31 mm (1.22") |
| 432-400 | 2.5 kN / 250 kgf / 550 lbf | M8 | 8 mm (0.31") | 8 mm (0.31") | 42 mm (1.65") |
| 432-443 | 5 kN / 500 kgf / 1100 lbf | M12 | 12 mm (0.47") | 12 mm (0.47") | 62 mm (2.44") |
