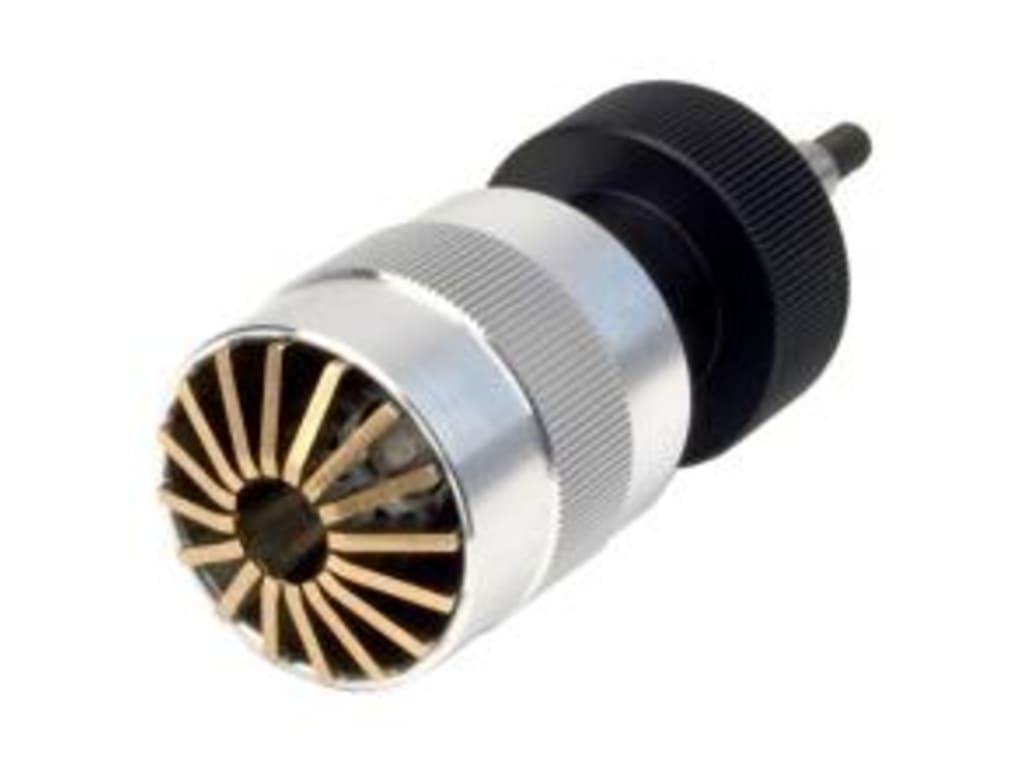

Multi-Jaw Grip, 500 N, M6 Thread
Used in tension tests the Multi-Jaw Grip is for holding round and irregularly shaped specimens by clamping on the outer surface or under a 'head'.
By turning the body of the grip the claw-type jaws can be opened and closed to get a secure grasp on a specimen when conducting tensile tests below 500 N.
Fitted with a female M6 threaded hole.
Applications:
Used for tensile testing of:
- Fasteners
- Small Components
- Textiles
432 Multi-Jaw Grips Series Comparison Table
| Model | Load Capacity | Thread 1 |
| 432-420 | 500 N / 50 kgf / 110 lbf | 10-32 UNF |
| 432-215 | 500 N / 50 kgf / 110 lbf | M6 |
