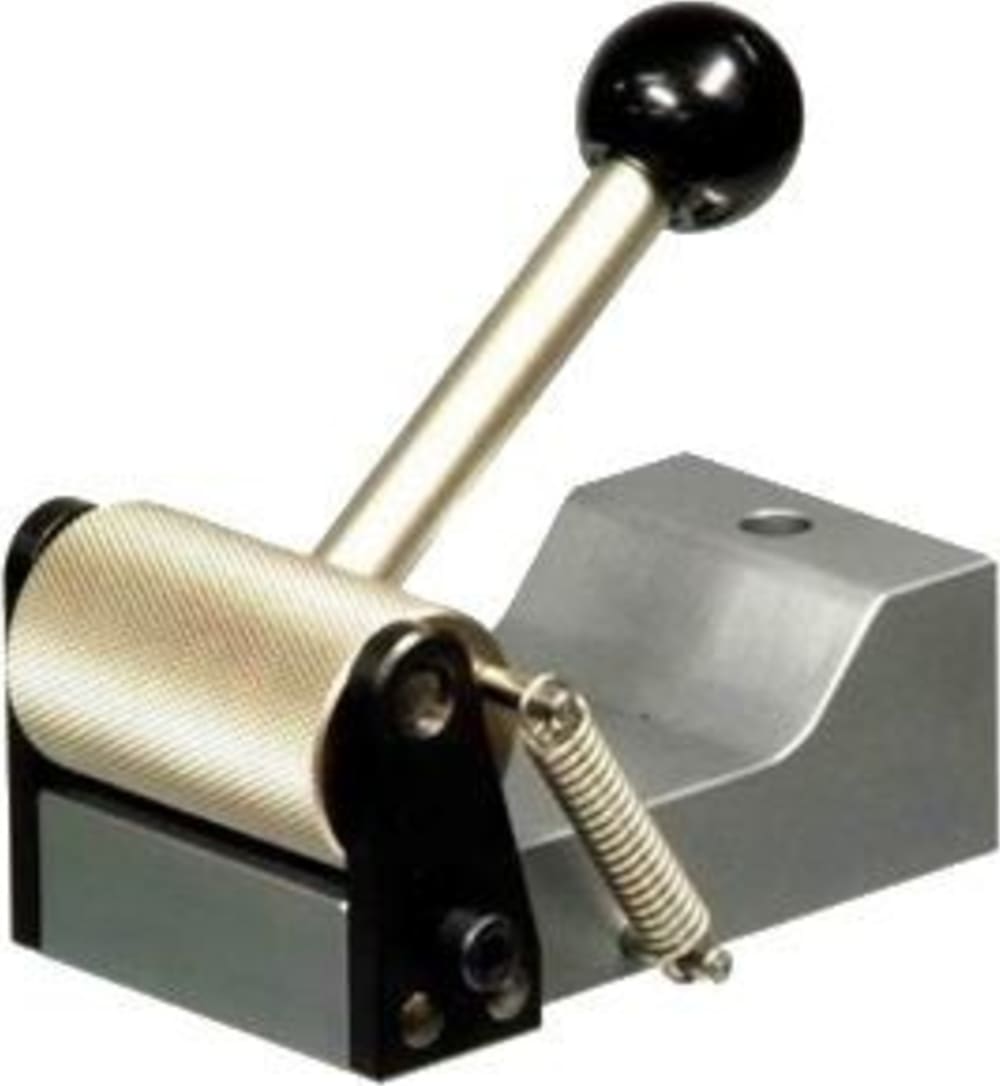

Eccentric Roller Grip, Pyramid (Serrated) Roller, 5 kN, QC-20 Fitting
Eccentric Cam Grip fitted with a pyramid-faced serrated 50mm wide roller cam. As a load is applied to a specimen the cam self-tightens, spreading the load evenly.
The lever allows for quick insertion and release of specimens to reduce testing time and facilitate ease of use for the operator.
Pyramid (serrated) faced roller, 30mm Ø
Clamping width 50mm,
Specimen thickness 0 – 7 mm
Maximum load: 5 kN
Fitted with a QC-20mm female hole for connection to the base of test stands and to loadcells
MEC7 series comparison table
| Model | Tensile Force | Type | Clamping Width | Specimen Thickness |
| MEC7-1 | 1 kN | Pyramid (serrated) faced roller, 25mm Ø | 50mm | 0 - 7 mm |
| MEC7-1-SR | 1 kN | Smooth roller, 25mm Ø, rubber base plate | 50mm | 0 - 7 mm |
| MEC7-5 | 5 kN | Pyramid (serrated) faced roller, 30mm Ø | 50mm | 0 - 7 mm |
| MEC7-10 | 10 kN | Pyramid (serrated) faced roller, 50mm Ø | 60mm | 0 - 8 mm |
