Eccentric Roller Grip, Smooth Roller, 1 kN, QC-20 Fitting

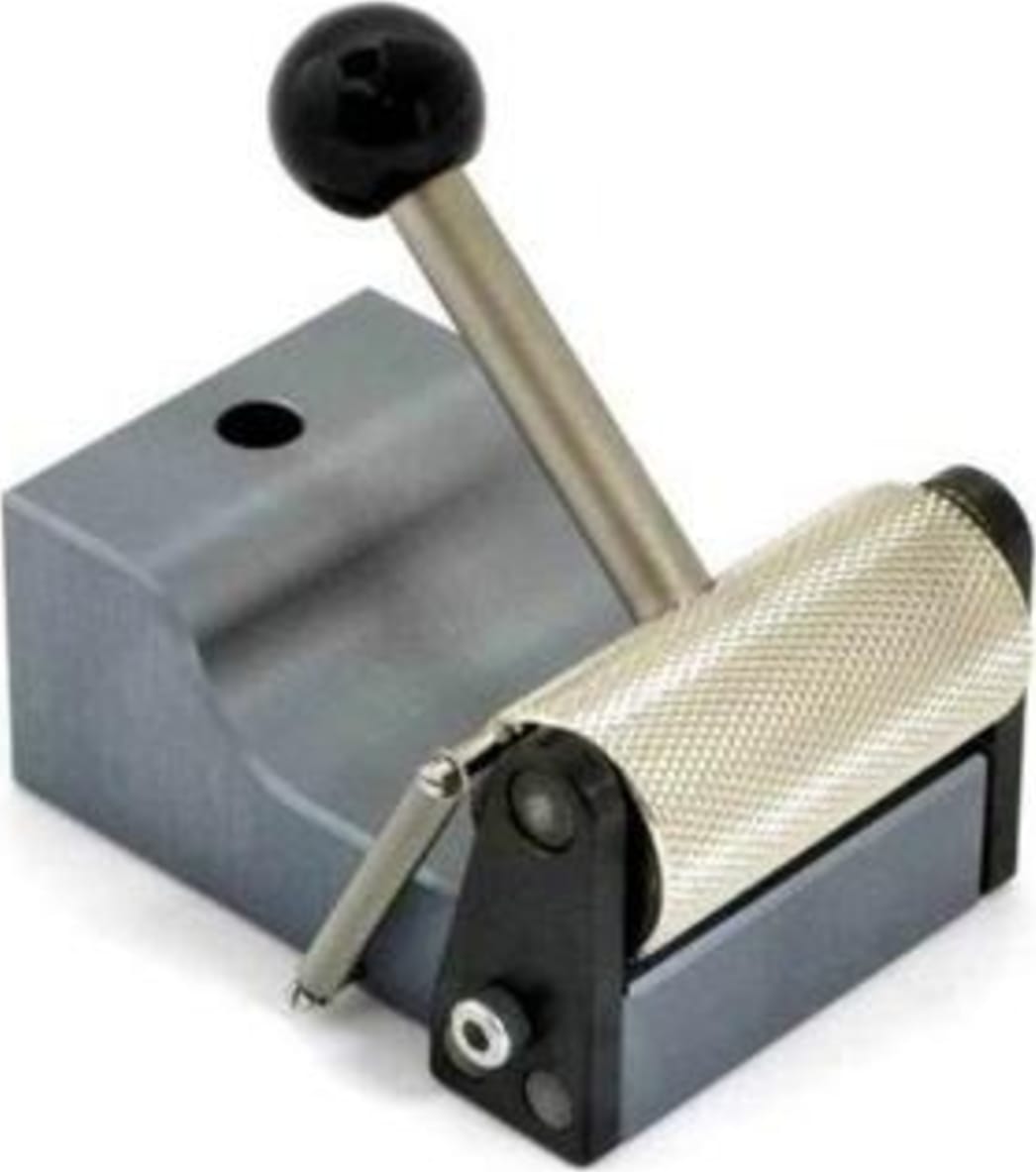

MEC7-1-SR Eccentric Cam Grip
Fitted with a smooth-faced 50mm wide roller cam and a rubber coating on the contact face of the grip body. As a load is applied to a specimen the cam self-tightens, spreading the load evenly. Used for specimens where a serrated surface may weaken the material and induce a break at the contact point.
The lever allows for quick insertion and release of specimens to reduce testing time and facilitate ease of use for the operator.
Suitable for testing of flexible and soft materials like films, plastics, rubbers etc.
Smooth-faced roller, 25mm Ø
Rubber coating on the contact face of the grip body
Clamping width 50mm,
Specimen thickness 0 – 7 mm
Maximum load: 1 kN
Fitted with a QC-20mm female hole for connection to the base of test stands and to loadcells.
MEC7 comparison table
| Model | Tensile Force | Type | Clamping Width | Specimen Thickness |
| MEC7-1 | 1 kN | Pyramid (serrated) faced roller, 25mm Ø | 50mm | 0 - 7 mm |
| MEC7-1-SR | 1 kN | Smooth roller, 25mm Ø, rubber base plate | 50mm | 0 - 7 mm |
| MEC7-5 | 5 kN | Pyramid (serrated) faced roller, 30mm Ø | 50mm | 0 - 7 mm |
| MEC7-10 | 10 kN | Pyramid (serrated) faced roller, 50mm Ø | 60mm | 0 - 8 mm |
