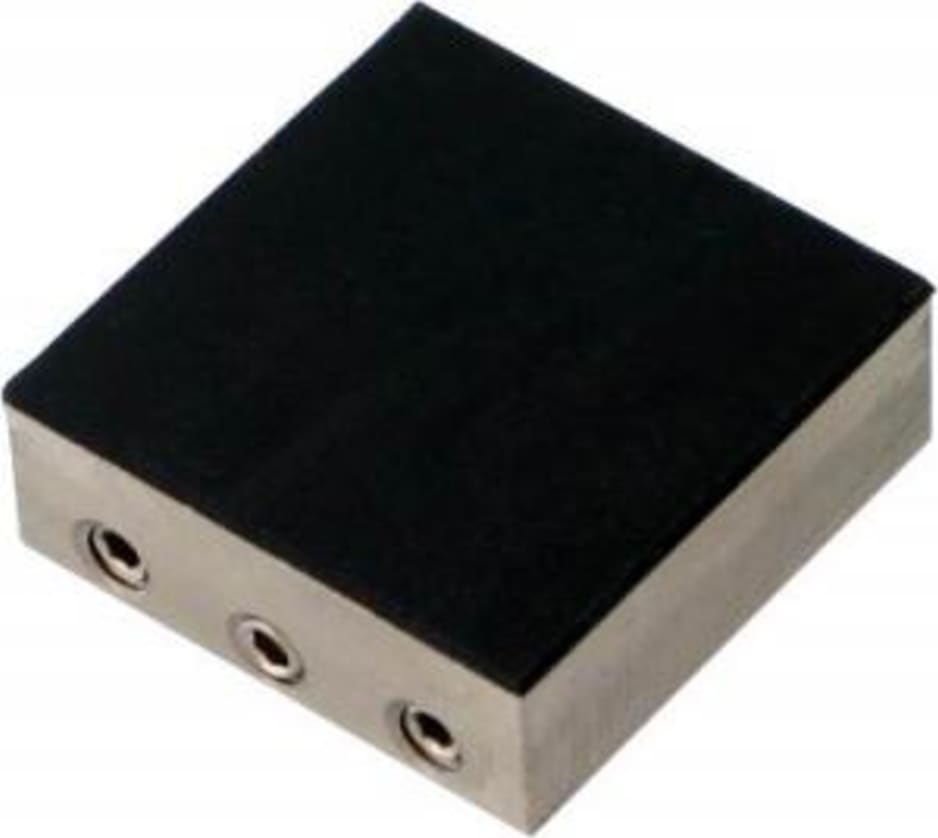

Rubber Jaws for MEC240K Medium Vice Grips, 30 mm Wide
Rubber-faced Jaws (30mm x 30mm) - nickel-plated having a 1mm thick layer of nitrile rubber coating.
Opening span = see datasheet for various spans according to the grip body selected.
For fragile samples, which may get weakened by pinching at the contact edge of the grip. (e.g. thin films, filaments, fibres and thin aluminum)
Supplied as 0.5 set = 2 jaws (left & right). Order any combination of 2 half sets of jaws to fit into a pair of any Mec240k Medium Vice grips (upper & lower)
Mechanical Vice Grips apply a clamping force by manually tightening parallel jaw faces directly onto the specimen. Single-action vice grips allow one jaw to be set in position to align the specimen around the central axis and the other jaw to be freely adjustable to clamp it in place. Consequently, they are best suited for tensile testing of symmetrical specimens which do not vary greatly in thickness.
The Mec240k Medium Vice Grips are rated between 1 – 2.5 kN and available in 4 sizes with jaw openings ranging from 0-10mm right up to 0-50mm depending on the jaw types selected. An extensive collection of interchangeable, high-performance jaws with differing surface profiles provide excellent gripping characteristics to ensure that a variety of materials and components can be securely held.
Ideal for tension tests below 2.5kN on flat strips of metal and plastic, thin sheets and tapes plus non-woven and general fabrics.
MEC240K Jaws Series Comparison Table
| Model | Surface | Clamping Surface (HxW) | Opening for MEC240K | Opening for MEC240K-S20 | Opening for MEC240K-S30 | Opening for MEC240K-S50 |
| MEC240K-B | Blank jaws | 30 x 30 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BG | Rubber jaws | 30 x 30 mm | 0 - 8 mm | 0 - 18 mm | 0 - 28 mm | 0 - 50 mm |
| MEC240K-BP | Pyramid jaws | 30 x 30 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BV2 | V-jaws | 30 x 30 mm | Ø 2 - 10 mm | Ø 2 - 20 mm | Ø 2 - 30 mm | Ø 2 - 52 mm |
| MEC240K-BV3 | V-jaws | 30 x 30 mm | Ø 3 - 10 mm | Ø 3 - 20 mm | Ø 3 - 30 mm | Ø 3 - 52 mm |
| MEC240K-BW | Wave jaws | 30 x 30 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BD | Diamond jaws | 30 x 30 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
|
|
|
|
|
|
|
| MEC240K-B50 | Blank jaws | 30 x 50 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BG50 | Rubber jaws | 30 x 50 mm | 0 - 8 mm | 0 - 18 mm | 0 - 28 mm | 0 - 50 mm |
| MEC240K-BP50 | Pyramid jaws | 30 x 50 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BW50 | Wave jaws | 30 x 50 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BD50 | Diamond jaws | 30 x 50 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
|
|
|
|
|
|
|
| MEC240K-B80 | Blank jaws | 30 x 80 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BG80 | Rubber jaws | 30 x 80 mm | 0 - 8 mm | 0 - 18 mm | 0 - 28 mm | 0 - 50 mm |
| MEC240K-BP80 | Pyramid jaws | 30 x 80 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BW80 | Wave jaws | 30 x 80 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BD80 | Diamond jaws | 30 x 80 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
|
|
|
|
|
|
|
| MEC240K-B100 | Blank jaws | 30 x 100 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BG100 | Rubber jaws | 30 x 100 mm | 0 - 8 mm | 0 - 18 mm | 0 - 28 mm | 0 - 50 mm |
| MEC240K-BP100 | Pyramid jaws | 30 x 100 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BW100 | Wave jaws | 30 x 100 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
| MEC240K-BD100 | Diamond jaws | 30 x 100 mm | 0 - 10 mm | 0 - 20 mm | 0 - 30 mm | 0 - 52 mm |
