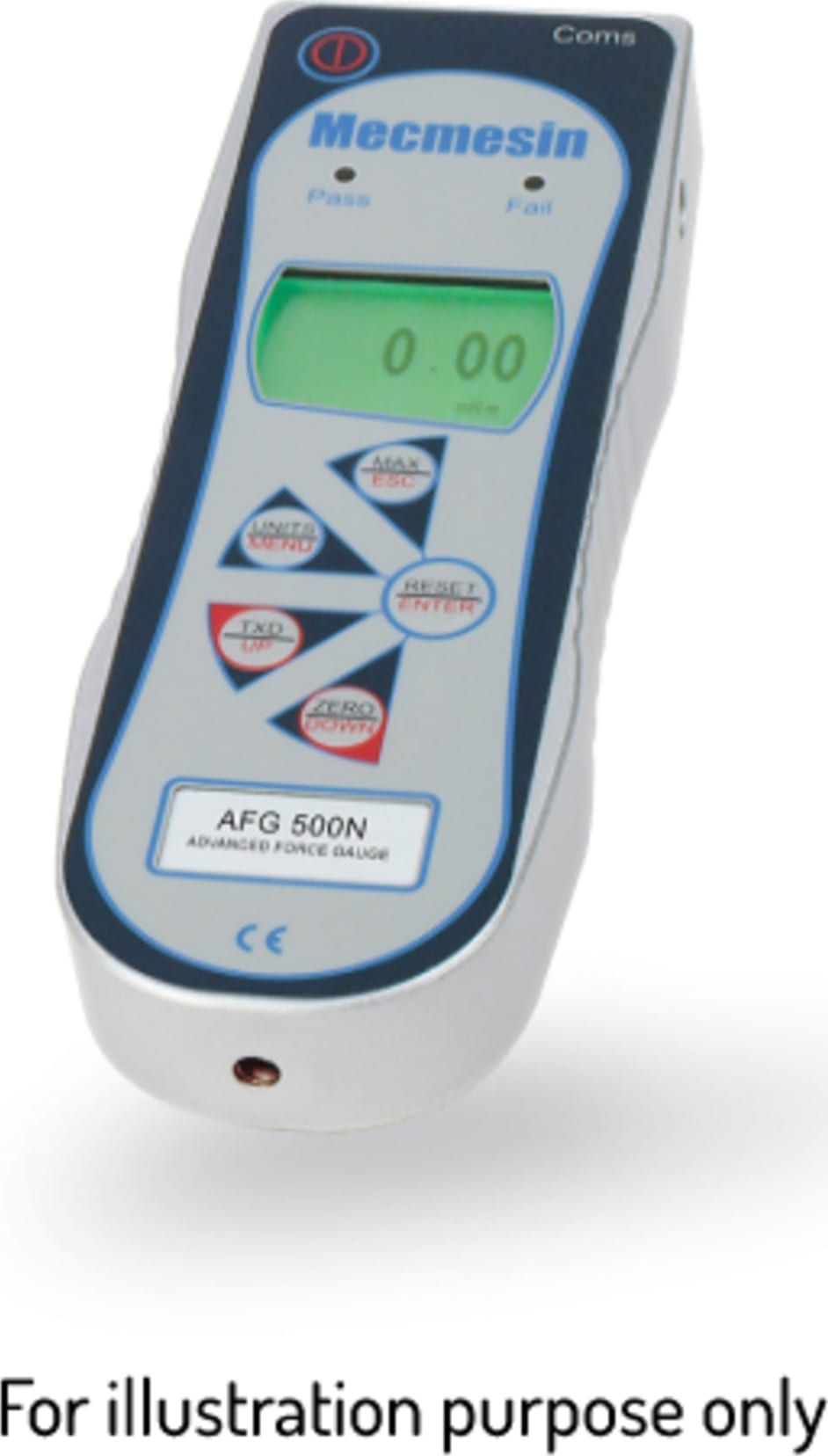

Advanced Force Gauge, 250 x 0.05 N
The Advanced Force Gauge (AFG) is a highly versatile, fully-featured digital instrument from Mecmesin.
Accurate to an outstanding ±0.1% f.s. with models from 2.5 to 2500 N, it is ideal for mounting to a test stand or use as a hand-held device.
Full of useful features to help you solve almost any tension and compression measurement problem.
Advanced Force Gauge (AFG)
With ever-increasing demands for improved quality, durability, and ease of use of all products, there is a growing need for more physical testing during the manufacturing processes. The Advanced Force Gauge (AFG) is a powerful instrument packed full of innovative features designed to suit a breadth of tension and compression tests.
The AFG is available in 10 models with capacities ranging from 2.5 to 2500 N, catering to a diverse range of industrial applications. All models are accurate to ± 0.1% of full-scale with readings in a variety of measurement units; N, kN, mN, gf, kgf, lbf, and ozf.
Whilst most commonly employed for push and pull tests using its internal loadcell, the AFG also acts as a universal display for a selection of external ‘smart’ force and torque transducers. This means you can expand an AFG to perform tests of all capacities for tension, compression, and torsion all with a single display unit.
The AFG offers enhanced test features and data analysis capabilities:
- Max and 1st Peak mode - identify critical load points from the test
- Fast data-acquisition speed - captures break-force readings accurately
- Audible and visual pass/fail alarms - alerts operators immediately when testing
- Overload warning with trend bar - to minimize accidental damage to loadcell
- In-built storage for up to 500 readings - test rapidly now and download results later
- Data transfer via RS232, digimatic or analog - output data to PC or printer for further analysis
- Connection capability to external load cells and torque sensors - becomes a versatile display for many different applications
