• Maximum usable range: 510 mm (20.08")
• Axial contact ‘clip-on’ extensometer
• The adjustable, counter-balanced arm features knife-edge profile jaws
• Can be configured to suit the needs of your application
• Suitable for mounting to the OmniTest 5 kN and OmniTest 7.5 kN materials testers

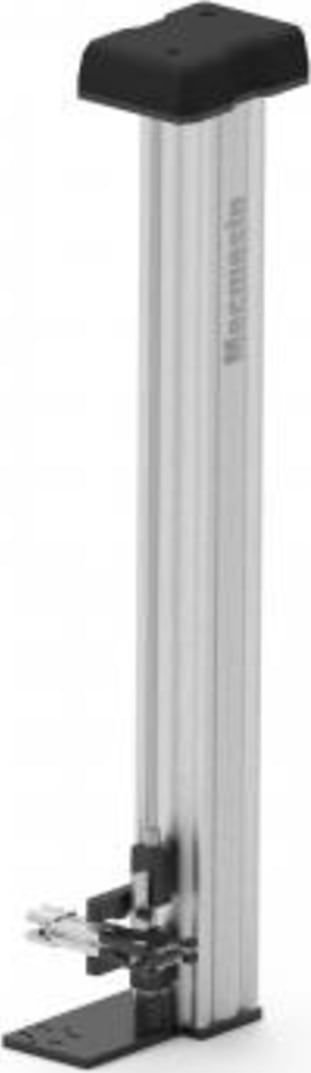

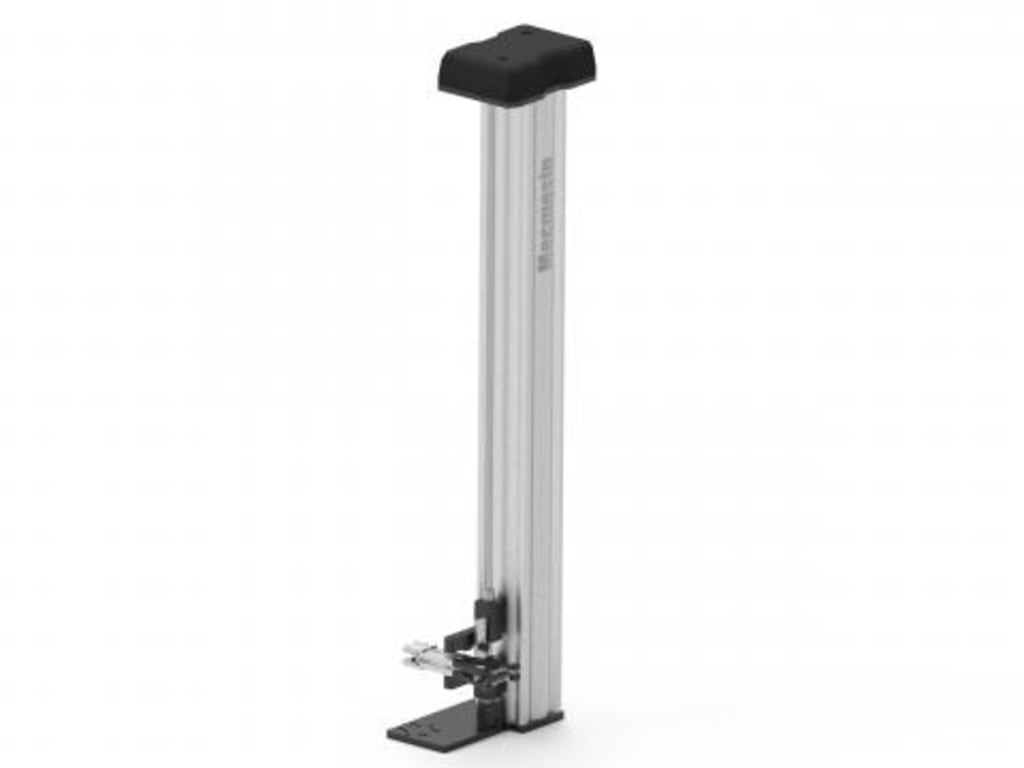

The LTE 700 Long Travel Extensometer is designed to be used with Mecmesin test systems when running VectorPro MT materials testing software. It accurately measures strain directly from the test specimen to enable the most accurate calculation of the physical properties of highly extensible materials such as elastomers, semi-rigid plastics and films. It is suitable for mounting to the OmniTest 5 kN and OmniTest 7.5 kN materials testers.

Applications

Precision tensile testing of highly extensible materials such as elastomers, flexible and semi-rigid plastics and films.

VectorPro MT plug-and-play compatibility

VectorPro MT is Mecmesin’s dedicated materials testing software, used for the programming, control and acquisition of data from OmniTest and MultiTest-dV systems. It captures at high-speed the signals from load cells and extensometers graphically display stress/strain data and perform common materials testing calculations with the flexible transfer of raw data and results to Excel™ or a PDF™ report.

MLTE Series Comparison Table
