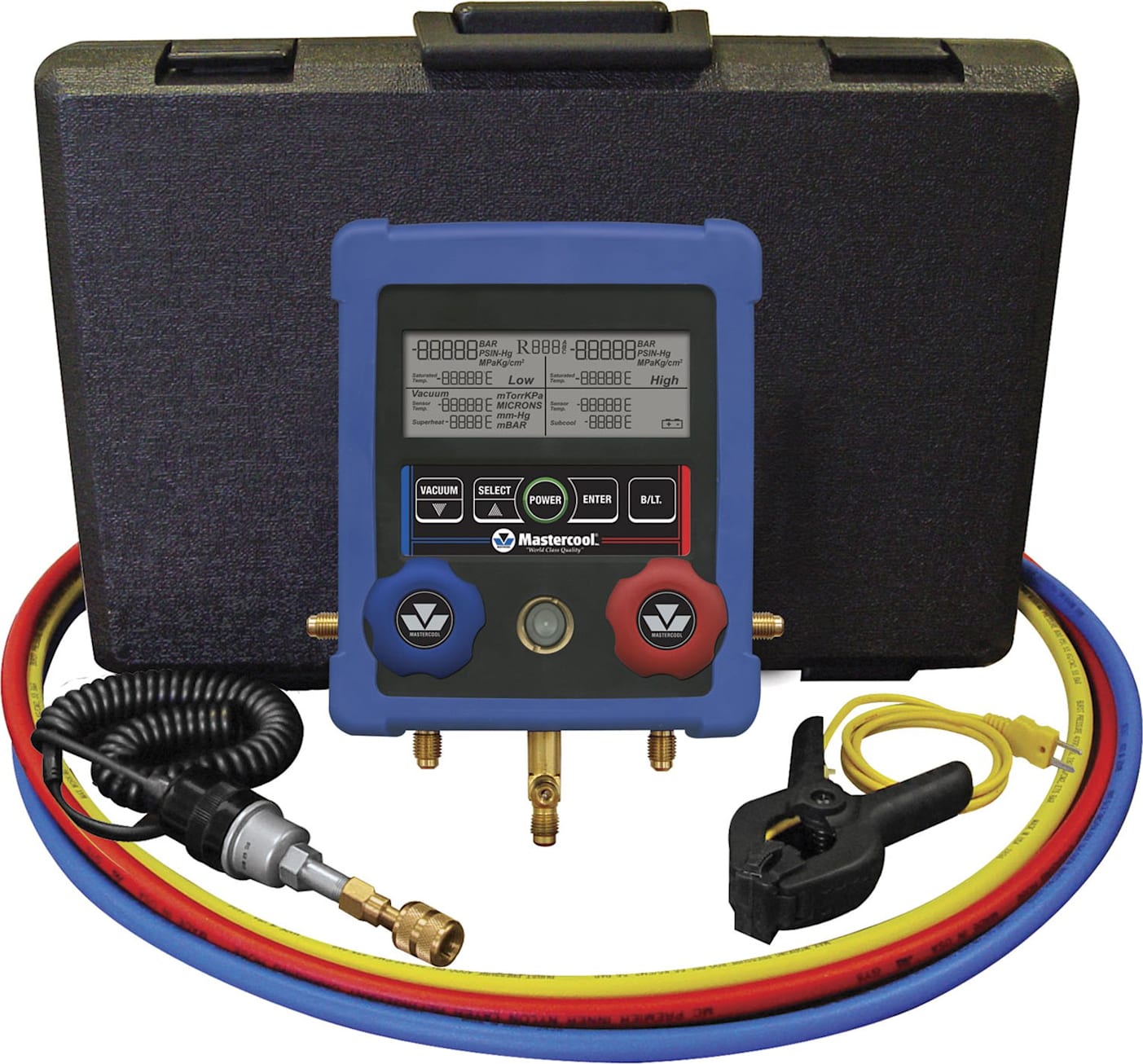

Mastercool 99661-AR HVAC 2-Way Digital Manual Manifold Kit

Name: Mastercool 99661-AR HVAC 2-Way Digital Manual Manifold Kit
Brand: Mastercool
SKU: Mastercool99661-AR
Price: 413.37 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: Mastercool 99661-AR

Compare

Digital HVAC Manifold w/thermocouple vacuum sensor and 3-60 manual shut-off valve hoses

Low battery indicator
Displays 63 refrigerants
Displays corresponding saturation, dew or bubble point temperature for current pressure
Displays sensor/thermocouple temperature, superheat/subcool temperature and deep vacuum when connected
Includes back-lit display for easy reading in darker areas
9V DC battery with optional AC/DC adapter
Free floating piston seal seat aluminum block with sight glass
Auto-Off with disabling capability

View Product Details

List Price: $426.50

In Stock:

View Payment Options

Recommended for you

Accessories

In Stock!

Add to Cart

99661-AR HVAC 2-Way Digital Manual Manifold Kit

This manifold offers a large easy to read LCD that displays Pressures, Saturated Temperatures, Actual temperatures, Superheat and Subcooling temperatures for over 60 refrigerants. When used with the Clamp-on Thermocouple connector it will display the actual temperature and automatically calculate the superheat or subcool temperature. When the vacuum sensor cable is attached to the manifold it will display deep vacuum. To insure lasting performance and durability the manifold case is constructed of ABS material and protected by a rugged rubber boot.

The technician now has a fully functional manifold with the intelligence to quickly access and deliver the accurate information needed to do the job right!

Mastercool HVAC DIGITAL MANIFOLD Parts

Gauge Reading	Class 1.0 standard gauge reading
Pressure Display	PSI, INHg, Bar, MPa, Kg/cm2
Temperature Display	°F or °C
Deep Vacuum Display	Micron, mBar, KPa, mmHg, Pa, Torr, mTorr
Sensing Resolution	1 psi (.07 Bar, .007 MPa, .07 Kg/cm2)
Sensing Accuracy	±1 psi or 1% of reading (whichever is greater)
Working Pressure	0 to 750 psi (52 Bar, 5 MPa, 52 Kg/cm2)
Proof Pressure	1000 psi (70 Bar, 7 MPa, 70 Kg/cm2)(Tolerable pressure without internal damage)
Refrigerant Temperature Range	-40 to 200°F (-40 to 93°C)
Operating Temperature	32 to 122°F (0 to 45°C)
Temperature Accuracy	±1˚F (±0.5˚C) between 32 to 160˚F (0 to 71˚C)
Storage Temperature	10 to 120˚F (-12 to 49˚C)
Connections	1/4” M-Flare
Power	9V DC battery with optional AC/DC adapter
Battery Life	30-36 hours pressure and temperature mode only(continuous use) 25-30 hours vacuum and backlight mode (continuous use)
Auto-Off	15 min. with disabling capability
Refrigerants	Refrigerants Included: R11, R12, R13, R21, R22, R23, R32, R113, R114, R115, R116, R123, R124, R125, R134, R134a, R141B, R142B, R143, R143A, R152A, R176, R218, R290, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R417A (ISCEON MO59), R422A (ISCEON MO79), R422D (ISCEON MO29), R427A (FX100), R501, R502, R503, R504, R507A, R508B, R509A, R600, R600A, R601, R601A

Tech Specs

Test Equipment General Attributes
Unique Features	Auto-Off with disabling capability Displays 65 refrigerants Low battery indicator 3-60" manual shut-off valve hoses Vacuum Sensor & Cable Clamp-On Thermocouple
Warranty	1 YEARS
Warranty Details	MASTERCOOL Inc.® warrants this product against defects in material and workmanship for a period of one year (exceptions listed below) from date of purchase to original user. This warranty does not cover failure due to abuse, improper usage, neglect or progressive wear and tear. Warranty becomes valid to the original user when this form and proof of purchase is submitted within 30 days of purchase. Warranty service is provided through the factory only. Please contact the service department toll free for parts, service concerns, or to obtain a return authorization number for warranty repair.
Product Height	5.50 IN
Product Length	17.25 IN
Product Width	14.50 IN
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	United States
Shipping Height	5.50 IN
Shipping Length	17.25 IN
Shipping Width	14.50 IN

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Great device For HVAC

5.0

We purchased this device because we have multiple types of Freon and it allows us to measure each type for every device that uses whatever type of Freon we need to measure.

Verified Purchase Anonymous on Mar 18, 2019
