• Manifold with gauges, 60-inch high-pressure hoses (x3), carry case
• Pressure Range: -14.5 - 500 psi (-0.1 - 3.4 MPa); High-Pressure Range: -14.5 - 800 psi (-0.1 - 5.5 MPa)
• Compact black anodized aluminum block with matte chrome fittings offers an extremely portable solution to fit the needs of every busy technician
• Easily perform pressure/temperature calculations for up to 91 different refrigerants including R134a, R410a and R22 refrigerants
• Unit conversion between MPa, kPa, bar, psi, kg/cm2, inHg

COMPACT MANIFOLD WITH FRONT-MOUNTED HOSE HOLDERS ALLOWS FOR PRECISE CALCULATIONS IN THE PALM OF YOUR HAND

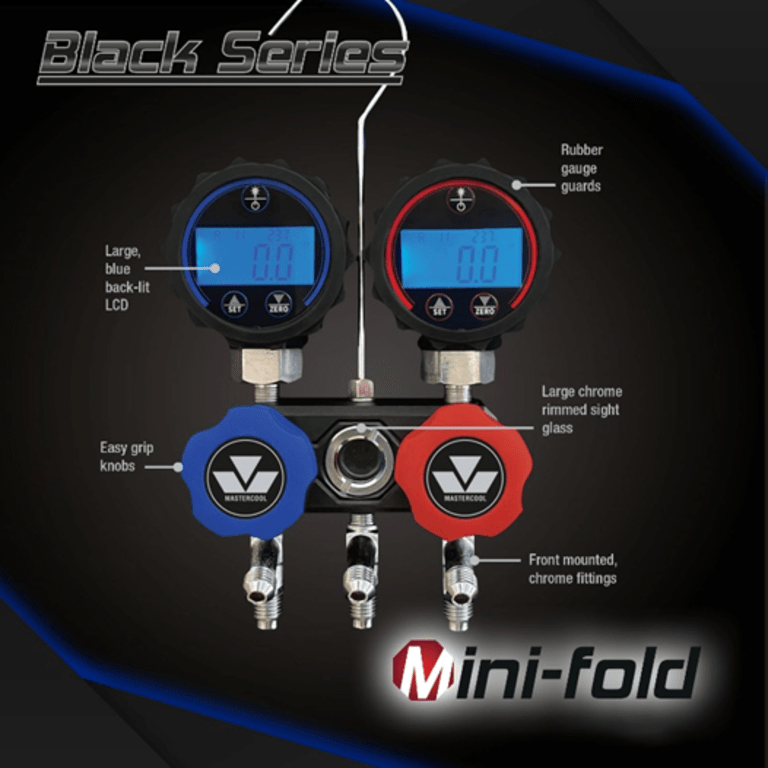

Mastercool’s Black Series Compact 2-Way Digital Manifold Gauge Set effortlessly performs pressure and temperature calculations and displays them on a large blue backlit LCD display. Constructed of the finest materials and machined with precision to the highest quality standards, this compact manifold provides automatic shut-off, unit conversion, over-range alarm, max and min values, and refrigerants selection providing a powerful tool for the hard-working technician.

R11, R113, R114, R115, R116, R12, R123, R1234yf, R1234ze, R124, R125, R13, R134a, R14, R141B, R142B, R413A, R152A, R161, R170, R21, R218, R22, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R408A, R409A, R409B, R41, R410A, R410B, R412A, R413A, R414A, R414B, R415B, R416A, R417A, R419A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R423A, R427A, R437A, R441A, R442A, R443A, R444A, R448A, R449A, R449B, R450A, R452A, R455A, R50, R500, R502, R503, R504, R507A, R508A, R508B, R509A, R513A, R600, R600a, R601, R601a, R740, R744

HVAC Compact 2-Way Manifold

R134a Compact 2-Way Manifold

R1234yf Compact 2-Way Manifold
