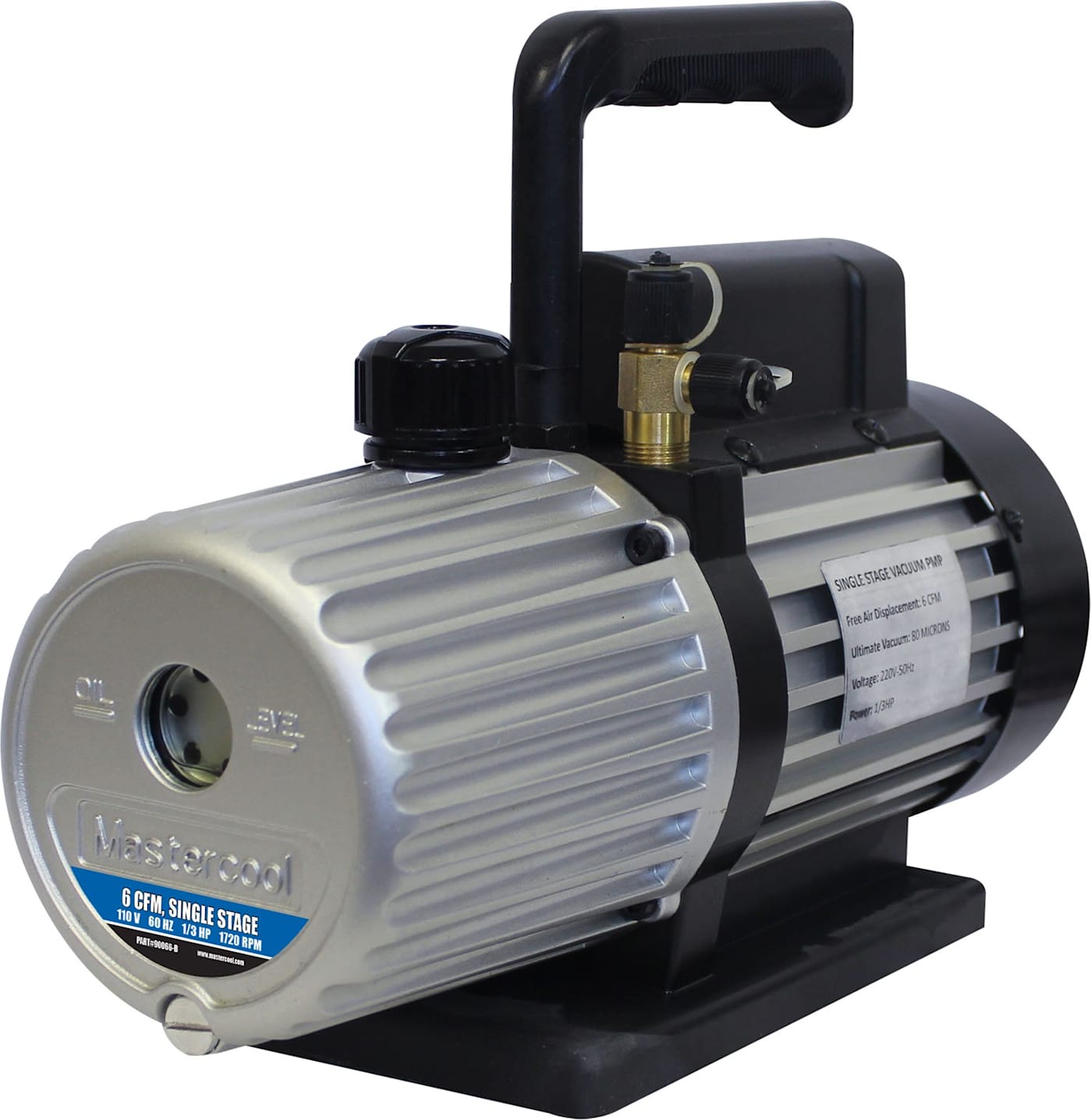

Mastercool 90066-B - 6 CFM Vacuum Pump (Single Stage)

Name: Mastercool 90066-B - 6 CFM Vacuum Pump (Single Stage)
Brand: Mastercool
SKU: Mastercool90066-B
Price: 193.50 USD
Availability: InStock

0 reviews | Model: Mastercool 90066-B

Compare

6 CFM Vacuum Pump (Single Stage)

High volume fan provides cool air motor and pump
Vapor discharge/oil fill port, easily removable, contains internal check valve to prevent escape of liquid oil
Internal check valve to prevent oil back flow
Cooling fins to keep temperature cooler during extended motor operation
Thermally protected motor with on/off rocker switch
Large, lightweight reinforced base for stable positioning
Easily accessible oil drain valve
Large oil level sight glass with max/min oil level indicator

View Product Details

List Price: $201.24

Your Price: $193.50

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Mastercool 90066-B 6 CFM Vacuum Pump (Single Stage)	Mastercool 90062-B 3 CFM Vacuum Pump (Single Stage)
Price
In Stock
Number of Stages (Pumps)	1	1
Vacuum (Vacuum Pumps)	6 CFM	3 CFM
Line Power (Pumps)	110-120 VAC	110-120 VAC
Compare	Add to compare	Add to compare

Recommended for you

Mastercool 90066-B

No. of Stages: 1
Free Air Displacement: 6 CFM
Ultimate Vacuum: 80 Microns
Pump Motor: 1/3 HP
Pump Speed: 1720 RPM

6 CFM Vacuum Pump (Single Stage)

A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time-tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.

REPAIRABLE PARTS BREAKDOWN (90066-B)

REF. #	DESCRIPTION	PART #
1.	T-FITTING	90052-31
2.	FAN COVER	90066-B-FC
3.	ON/OFF SWITCH	90066-B-SW
4.	BASE PLATE	90066-B-BP
5.	OIL DRAIN FITTING WITH O-RINGS	90062-B-28
6.	EXHAUST FITTING	90066-10-B
7.	HANDLE	90062-B-H

Mastercool 90066-B General Specifications
No. of Stages	1
Free Air Displacement	6 CFM
Ultimate Vacuum	80 Microns
Pump Motor	1/3 HP
Pump Speed	1720 RPM
Electrical Specs	110/120 V/60 Hz
Dimensions	15 x 6.5 x 11″
Shipping Weight	20.5 lbs
NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	1
Vacuum (Vacuum Pumps)	6 CFM
Line Power (Pumps)	110-120 VAC
Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	MASTERCOOL Inc.® warrants this product against defects in material and workmanship for a period of one year from date of purchase to original user. This warranty does not cover failure due to abuse, improper usage, neglect or progressive wear and tear. Warranty becomes valid to the original user when this form and proof of purchase is submitted within 30 days of purchase. Warranty service is provided through the factory only. Please contact the service department toll free for parts, service concerns, or to obtain a return authorization number for warranty repair.
Shipping Weight	20.5 LBS
Power Supply Voltage	120V 50/60 Hz Power Supply Voltage 110/120 V/60 Hz
Country of Origin	United States
Other Information	Dimensions: : 15 x 6.5 x 11 inch
