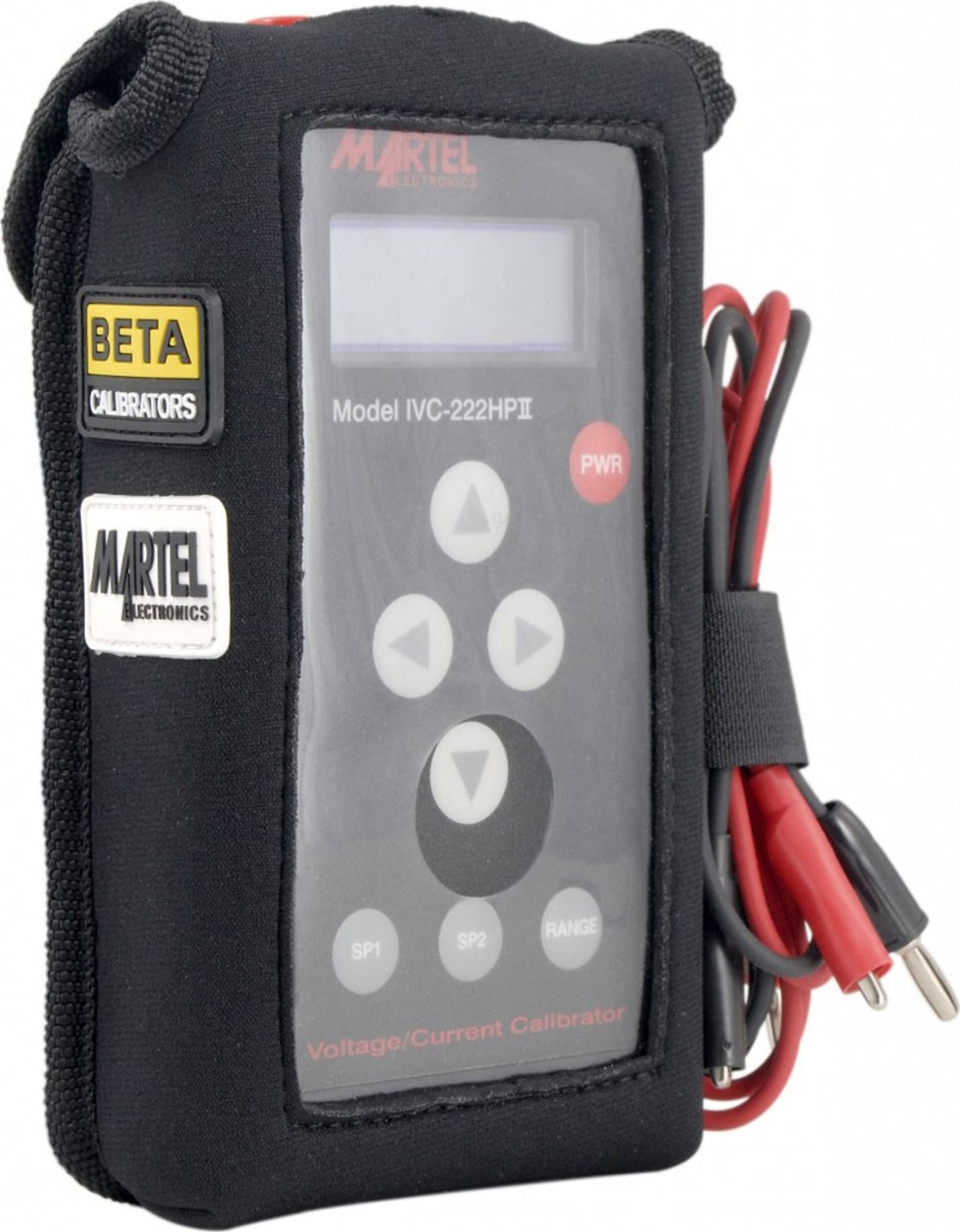

Martel Electronics IVC-222HPII Voltage Current Calibrator

Name: Martel Electronics IVC-222HPII Voltage Current Calibrator
Brand: Martel
SKU: MartelIVC222HPII
Price: 1209.29 USD
Availability: InStock
Rating: 4.00 (1 reviews)

4 (1 Review) | Catalog: 19D1991 | Model: Martel IVC222HPII

Compare

IVC222HPII Portable Voltage/Current Calibrator Source

Remarkable 0.015% of reading accuracy
Four ranges: 200 mV, 2V, 20V, and 24 mA
Intuitive, easy-to-use controls
RS-232 interface allows computer control
Built-in 24V supply can drive 4 to 20 mA loops over 1,000 Ohms
Rugged, lightweight, hand-held unit
Includes test leads, carrying case, 9V battery, NIST certificate

View Product Details

List Price: $1,399.99

In Stock:

View Payment Options

Recommended for you

The Voltage/Current Calibrator is a general purpose current and voltage source that can be used in engineering, manufacturing, test, and process control application. It combines both digital and analog circuitry to achieve its rated specifications in a small, reliable package.

This voltage current calibrator has the capability to store and recall up to two setpoint values, the SP1 and SP2 keys. An RS-232 port accessed via a custom cable (available from Martel) allows the calibrator to be computer controlled for automated testing.

Specifications
Output	Five current steps; 4, 8, 12, 16, and 20 mA
Accuracy	±0.075% of FS
Voltage Compliance
Source	Internal 9 V battery
Simulate	External supply; up to 30 VDC
Power Supply	9 Volt alkaline battery
Battery Life	50 Hours @ 4 mA output
Temperature Range
Operating	0 °C to +50 °C
Storage	-25 °C to +60 °C
Mechanical Dimensions
Size	3.8" x 2.4" x 1.0"
Weight	6 ounces
Output Terminations	Two (2), 8" leads with alligator clips
Output Range
Voltage	200 mV, 2 V, 20 V
Current	24 mA
Resolution
Voltage	0.01 mV, 0.0001 V, 0.001V
Current	0.001 mA
Accuracy	±0.015% of reading, ±2 count; 18 °C to 28 °C
Temp. Stability	±.005% FS/°C
Load Capability
Voltage	±1 mA for rated accuracy
Current	1,000 Ohms
Capacitive	no limitations (voltage mode only)
Output Protection	current limited internal RESET
Power Supply	9 Volt alkaline battery or optional NiCd/AC Charger (80007 + 80000)
Mechanical Dimensions
Size	1.43" x 3.15" x 5.7"
Weight	12 ounces

Tech Specs

Test Equipment General Attributes
Product Height	3.25 IN
Product Length	9.75 IN
Product Width	7.00 IN
HTS/Schedule B Number	9030.39.0100
ECCN Number	3A992
Country of Origin	China
Shipping Height	3.25 IN
Shipping Length	9.75 IN
Shipping Width	7.00 IN
