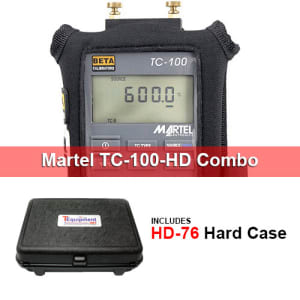

Martel TC100-HD Precision Thermocouple Calibrator with Multipurpose Hard Case

Name: Martel TC100-HD Precision Thermocouple Calibrator with Multipurpose Hard Case
Brand: Martel
SKU: MartelTC100-HD
Price: 896.99 USD
Availability: InStock
Rating: 4.75 (4 reviews)

5 (4 Reviews) | Catalog: 1919084 | Model: Martel TC100-HD

Compare

TC-100 Precision Thermocouple Calibrator with Multipurpose Hard Case

Includes HD-76 Multipurpose Hard Case
High accuracy ±0.3 °C (Type J T/C - all errors combined)
Ten(10) common T/C Types plus mV
Accepts both T/C mini-plug and bare T/C wires
Simple decade control of output
Three setpoints for each T/C type
MIN/MAX recall in measure mode
Input protection to 240VAC
Supplied in full rubber boot; optional carrying case available

View Product Details

List Price: $1,045.98

In Stock:

View Payment Options

Recommended for you

Martel TC100-HD Precision Thermocouple Calibrator with Multipurpose Hard Case

Includes HD-76 Multipurpose Hard Case
High accuracy ±0.3 °C (Type J T/C - all errors combined)
Ten(10) common T/C Types plus mV
Accepts both T/C mini-plug and bare T/C wires
Simple decade control of output

The TC-100 Thermocouple Calibrator provides high accuracy source and measurement of ten common thermocouples, as well as mV. The TC-100’s accuracy of ±0.3°C for Type J T/Cs includes all errors, at resolutions of ±0.01°C or °F in measure mode and ±0.1°C or °F in source mode. Features including MIN/MAX re-call in measure mode, three setpoints per thermocouple range, a large knob for decade control of the output in source mode, and the ability to accept bare T/C wires in addition to mini-plug inputs, makes the TC-100 an accurate, easy-to-use instrument for all your thermocouple calibration needs.

Set-Up Basic/Advanced?

10.25" X 6.5" X 3.4"
Hard Plastic Exterior
Pick and Pack Foam Interior
Convenient Carrying Handle

Pick & Pack Foam

The HD-76 has been designed to fit a wide variety of items securely. In order to accommodate this, we have designed this case with pick & pack foam. This easy to customize Pick and Pack foam creates a snug and safe place for any contents. Foam can also be reinserted in case you ever need to change the case configuration.

Versatility

Give real protection to your tools. The IWH HD-76 offers convenience and expedience, merging form with function. This easy carrying case adds professionalism at an affordable cost. It provides enough space for most devices including accessories.

TC-100 Specifications (1 year at 23 °C ±5 °C; % of reading unless otherwise noted)
Output Voltage
Range	-10 to +75.000 mV
Resolution	1 µV
Accuracy	±0.007 % of rdg, ±10 µV
Output Impedance	≤1 Ohm
Input Voltage
Range	-10 to +75.000 mV
Resolution	1 µV
Accuracy	±0.007 % of rdg, ±10 µV
Input Impedance	> 1 MegOhm
Thermocouple Source/Measure
Types	J, K, T, E, R, S, B, L, U, C
Range	mV
Resolution
Source	±0.1°C or °F
Measure	±0.01°C or °F
Accuracy
J	±0.5 °C; -210 °C to -100 °C ±0.3 °C; -100 °C to +1,200 °C
K	±0.6 °C; -200 °C to -100 °C ±0.35 °C; -100 °C to +1,000 °C ±0.5 °C; +1,000 °C to +1,372 °C T ±0.7 °C; -200 °C to -150 °C ±0.3 °C; -150 °C to +400 °C
E	±0.5 °C; -200 °C to -100 °C ±0.3 °C; -100 °C to +1,000 °C
R	±1.8 °C; 0 °C to 250 °C ±1.0 °C; 250 °C to +1,767 °C
S	±1.8 °C; 0 °C to 250 °C ±1.0 °C; 250 °C to +1,767 °C
B	±1.7 °C; 600 °C to 1,000 °C ±1.2 °C; 1,000 °C to 1,820 °C
L	±0.5 °C; -200 °C to -100 °C ±0.4 °C; -100 °C to +900 °C
U	±0.7 °C; -200 °C to 0 °C ±0.3 °C; 0 °C to +600 °C
C	±0.4 °C; 0 to °C 1,000 °C ±0.7 °C; 1,000 °C to +1,800 °C ±1.2 °C; +1,800 °C to +2,316 °C
CJC Temp. Offset	±0.05 °C/°C outside of 23±5 °C
Warm-up Time	1 minute to specification
Environmental
Operating Temperature	-10 °C to +55 °C
Storage Temperature	-20 °C to 70 °C
Power Requirements	9 VDC
BatterY	9 V alkaline; 006P/ IEC 6F22/NEDA1604 Optional NiCad Optional AC adapter/charger
Mechanical
Dimensions	5.7” H x 3.15” W x 1.43” D(144.7 x 80.0 x 36.3 mm)

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 6 reviews

Most Helpful First | Newest First

Recommend to a Friend

Foam Lined Case

5.0

I bought one for my FLIR IR thermometer and got an extra one for my Fluke hand held and clamp meter. Easy to pull the foam squares out to fit pretty much any shape. The foam squares are ~1/2 square, but run the full depth. But, it is easy to cut to the depth you want. I had to double back tape the top foam liner because it always fell out when you opened the box. But not a big deal. A whole lot better than letting my instruments bang around in a drawer or tool box.

Verified Purchase Larry on Oct 05, 2020

Recommend to a Friend

Plastic Case

3.0

The case is fine; mine was a free add-on when I purchased a Fluke clamp meter. For occasional use; it's fine. If you are a pro and do this all day long; you may need something more durable. Of course it has the TEquipment logo on it.

Rob on Jul 12, 2020

Recommend to a Friend

Storage Case

5.0

Great Case. Carry my C3 in it. Protects against drops and collisions while transporting. Plenty of room for charger, C3, and other small tools.

Verified Purchase David H on Jun 23, 2020

Recommend to a Friend

Great case!

5.0

I love how the foam is pre cut and can be removed to fit the item you're storing in it (in my case, a fluke 325). This was great because I was able to fit the fluke and an AC line splitter in the case. Very durable case as well, it can definitely withstand bumps and drops.

Verified Purchase Beth on Aug 24, 2019

Recommend to a Friend

Pretty good case

4.0

I was going to use this for my Fluke 773, but decided to use it for something else instead. Quality of the case is good, but the meter had several sets of leads, plus instructions and fitting it all in was a challenge.

Verified Purchase Jess on Nov 28, 2017

Recommend to a Friend

Handy little meter case

5.0

The IWH HD-76 came free with my pneumatic calibrator, and I love it. I was actually able to fit two testing devices in it at the same time. I usually carry these in my hand and under my arm, but now I have the ability to carry them conveniently, and at the same time protect them. Thanks Tequipment!

Anonymous on Nov 08, 2016
