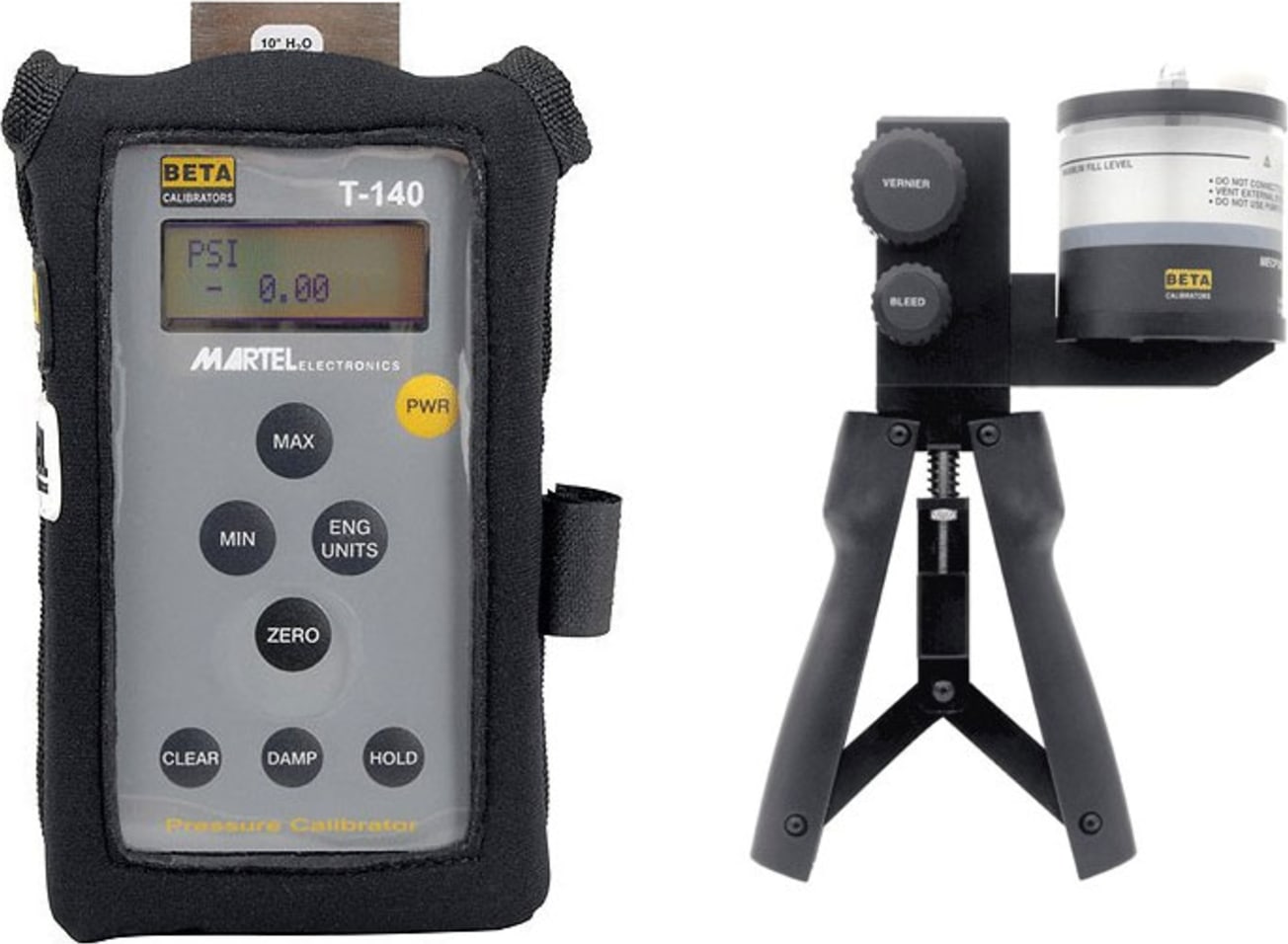

Martel T-140-3000 KIT Pressure Calibrator 3000 PSIG Kit with MECP10K pump

Name: Martel T-140-3000 KIT Pressure Calibrator 3000 PSIG Kit with MECP10K pump
Brand: Martel
SKU: MartelT-140-3000 Kit
Price: 2332.21 USD
Availability: InStock

0 reviews | Catalog: 1919098 | Model: Martel T-140-3000 Kit

Compare

T-140-3000 KIT Pressure Calibrator 3000 PSIG Kit with MECP10K pump

Pressure Calibrator 3000 PSIG Kit with MECP10K pump
Designed to give technicians laboratory-grade accuracy in a rugged, easy-to-use instrument
High accuracy gauge and differential capability
Rugged, dust tight, water-resistant case
Isolated SS sensors on 300 psi and 3,000 psi units
Easy to read Super-Twist LCD
Intuitive controls make operation easy, even for infrequent users
Powered by a common 9 Volt alkaline battery
Supplied in neoprene sleeve; optional carrying case available

View Product Details

List Price: $2,699.99

In Stock:

View Payment Options

Recommended for you

Martel T-140-3000 KIT Pressure Calibrator 3000 PSIG Kit with MECP10K pump

The pressure manometer is part of the Martel Electronics Tuff-Tools line of calibrators and is designed to give technicians the laboratory-grade accuracy in a family of rugged, easy-to-use instruments.

The Martel T-140 Pressure Calibrator is available in several ranges; 10″ H₂O, 200″ H2O, and 30, 100, 300, and 3,000 psi. Operation of this calibrator is made easy through the use of a sealed membrane keypad with simple controls. When combined with a Martel MECP100, MECP500, or MECP10K pump, the T-140 kit makes a great package to handle your pneumatic or hydraulic calibration requirements.

(1) T-140 Pressure Calibrator in selected range
(1) MECP10K Calibration Pump
(1) Black Hard Sided Carrying Case with Foam Insert
(1) Protective Sleeve Case
(3) 1/4 MNPT to M16X2.0 Fitting
(1) 1/4 inch FNPT x 1/4 INCH BSP Male Adapter
(1) 1/8 inch MNPT to Quick Connect Fitting
High Pressure Hose 10k psi with M16X2.0 Quick Fittings
(1) Hex Key, 3/16 inch
(1) Roll of Teflon Tape, 0.5 inches wide x 260 inches long
(1) 9V Alkaline Batteries
(1) NIST Calibration Certificate
(1) Instruction Manual

Specifications (18 °C to 28 °C unless otherwise noted)
Accuracy:	± 10" H2O ±0.1% FS All other ranges ±0.05% FS
Resolution:	± 10" H2O...0.001" H2O ± 200" H2O...0.01" H2O 30 PSI ...0.001 PSI 100 PSI ...0.01 PSI 300 PSI ...0.01 PSI 3000 PSI ...0.1 PSI
Temperature Stability:	±0.01% FS per °C; 0°C to 18°C, and 28°C to 50°C
Maximum Overpressure:	Ranges >= 100 PSI 2X Ranges <= 30 PSI 3X
Standard Engineering Units:	PSI, Bar, inH2O, cmH2O
	mH2O, ft H2O, mBAR
	inHg, mmHg, cmHg, kg/cm2, TORR, ATM, KPa
Media Compatibility:	10" inH2O, 200" inH2O, 30 psi, 100 psi ... Clean Dry Air or Gas Only
Media Compatibility:	300 psi, 3000 psi ... All media compatible with 316SS
Environmental
Operating Temperature:	-10 °C to +55 °C
Storage:	-20 °C to +70 °C (-4 °F to +158 °F)
Mechanical:
Dimensions:	5.7" H x 3.5"W x 1.43"D
Input Port(s):	1/8" female NPT
Power:
Battery:	one 9V alkaline battery

Tech Specs

Process / Calibration/Pressure Calibration/Pressure Calibrators Template
Accuracy	± 0.05% of F.S
Gauge Pressure	Yes
Test Equipment General Attributes
ECCN Number	EAR99
Calibration Included	NIST Calibration
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	China

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

When initially pumping pressure, there will be a settling time do to temperature generated from the pressure. Allow 5 minutes for the system to settle after pumping to the high pressure. Then continue pumping to the desired pressure.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
