Mark-10 RG10 Series RG Force Measurement Module

Name: Mark-10 RG10 Series RG Force Measurement Module
Brand: Mark-10
SKU: Mark-10RG10
Price: 707.75 USD
Availability: InStock

0 reviews | Model: Mark-10 RG10

Compare

Force measurement module, 10 lbF / 5 kgF / 50 N

Measures tension and compression forces
Dedicated force limit outputs for direct hardware control (relays, etc)
RS-232 and Mitutoyo outputs
GCL-Gauge Control Language for full computer control
Averaging mode for average readings over time
External trigger for contact or switch testing and data capture
General purpose I/O for external device control
Programmable analog and digital filters
Selectable units of measurement
Programmable default configuration
Peak memory for tensile and compressive forces
Power via 9 - 12 VDC
Ultra-rugged, reversible aluminum housing
Same housing size for all capacities
Optional cable with bare leads for integration with PC/PLC and external power supply
Accuracy: ± 0.5% of full scale ±1 digit
Safe overload: 150% of capacity
Weight: 0.55 lbs (0.25 kg)
Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty: 3 years
CE mark

View Product Details

List Price: $745.00

In Stock:

View Payment Options

Recommended for you

The RG smart load cell is a plug-and-play force measurement building block designed for integration within assembly systems, weighing systems, and other process automation and testing automation applications. All functions are controlled by commands sent from a PC or PLC via its RS-232 connector. The RG's ASCII command library allows for peak force recall, set points, data averaging, data filtering, calibration, and many other functions. A rugged aluminum housing makes the RG durable enough to withstand the rigors of manufacturing environments. Capacities are available from 2 lb to 200 lb (10 N to 1000 N).

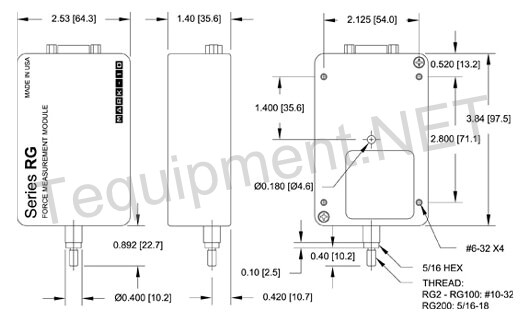

Dimensions
