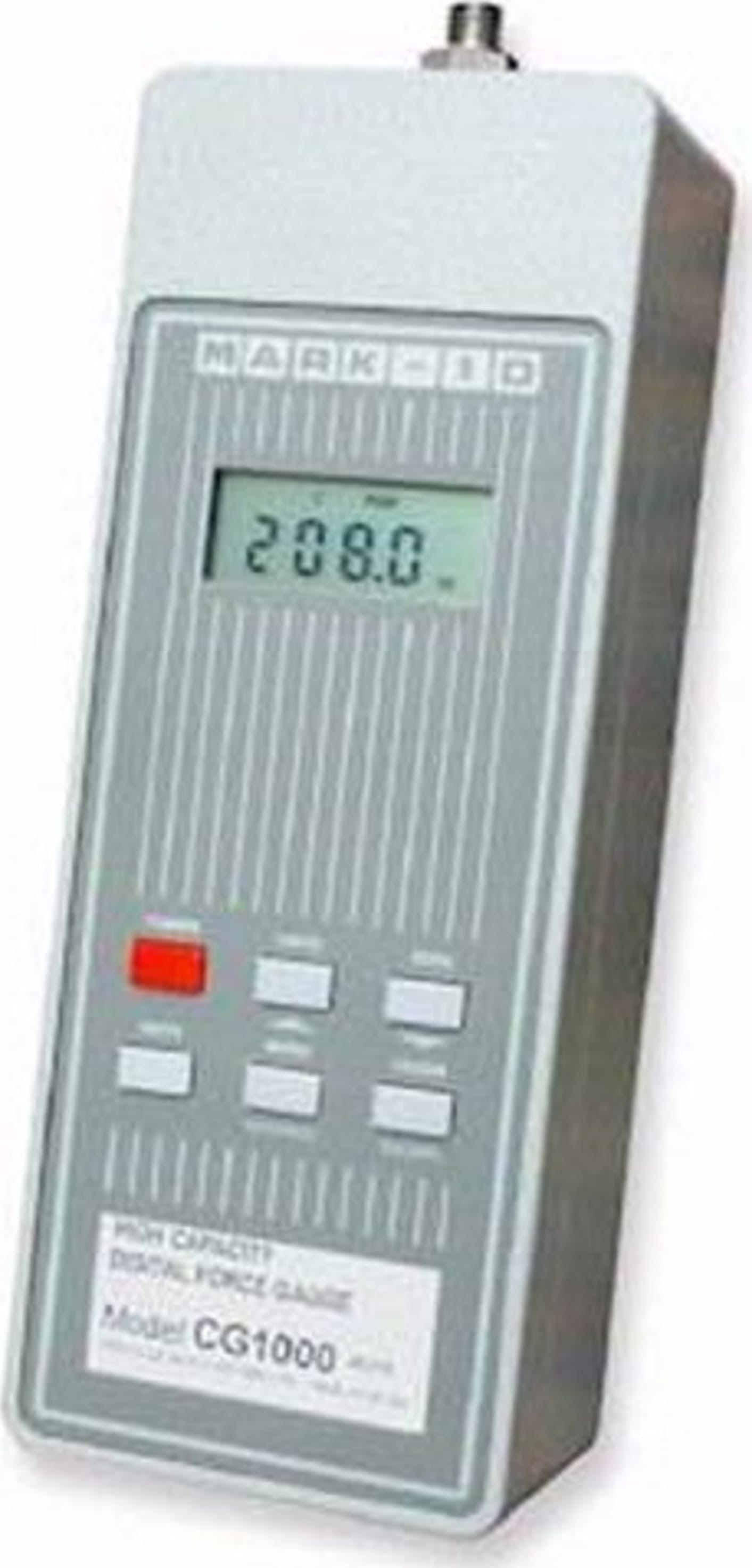

Mark-10 Series CG1000 High Capacity Force Gauges

Name: Mark-10 Series CG1000 High Capacity Force Gauges
Brand: Mark-10
SKU: Mark-10CG1000
Price: 1420.25 USD
Availability: InStock

0 reviews | Model: Mark-10 CG1000

Compare

Force gauge, 1000.0 x 0.5 lb, 500.0 x 0.2 kgF, 5000 x 2 N, 110V

RS-232, Mitutoyo and analog outputs
GCL-Gauge Control Language for full computer control
Automatic timed output on RS-232
Dual set points with outputs
Averaging mode for average readings over time
External trigger for contact or switch testing and data capture
General purpose I/O for external device control
Programmable analog and digital filters
Selectable units of measurement
Programmable default configuration
Peak memory for tensile and compressive forces
Push-button calibration
Battery or AC operation
Programmable automatic shutoff
Ultra-rugged, reversible aluminum housing
Same housing size for both capacities (500 lb and 1,000 lb)
Compatible with test stand models TSF, TSFH,TSA, TSC, and TSCH and grips
Accuracy: ± 0.2% of full scale ±1 digit
Sampling rate: 65 readings/sec
Safe overload: 150% of capacity
Battery life: 8-10 hours per charge
Weight: 1.8 lbs (0.8 kg)
Environmental requirements: 40°F - 100°F [5°C - 45°C], < 96% humidity (non-condensating)
Warranty: 3 years
CE mark

View Product Details

List Price: $1,495.00

In Stock:

View Payment Options

Recommended for you

Force gauge, 1000.0 x 0.5 lbF, 500.0 x 0.2 kgF, 5000 x 2 N

he Series CG500 / CG1000 High Capacity Digital Force Gauge is ideal for heavy duty spring testing, destructive testing, and other force measurement applications requiring up to 1,000 lb of tensile or compressive force. These force gauges include all the advanced features of the Series BG, and are housed in ultra-rugged reversible aluminum housings for years of use in laboratory or factory environments.

For 220V operation add suffix E to model number. Example: CG1000E.

Series CG force gauges are supplied in a cushioned carrying case with AC adapter/charger, user's manual, NIST-traceable certificate of calibration, and attachments (chisel, cone, V-groove, hook, flat, extension rod, and thread adapter).

Optional equipment

A wide range of test stands and gripping fixtures
Hi / lo limits indicator - Set limit conditions for a test - the indicator will display red lights for high and low limits, and a green light to indicate passing.
Overload protection module - Protects the force gauge against overloads during motorized tests, adjustable from 20 - 110% of gauge's full capacity. For use with Mark-10 motorized test stands.
Set point cable - Stops test stand travel at programmable high and low set points for tension and compression forces. For use with Mark-10 motorized test stands.
Output cable - Send test data to a PC, statistical printer, or other data collector for further analysis.

Dimensions
