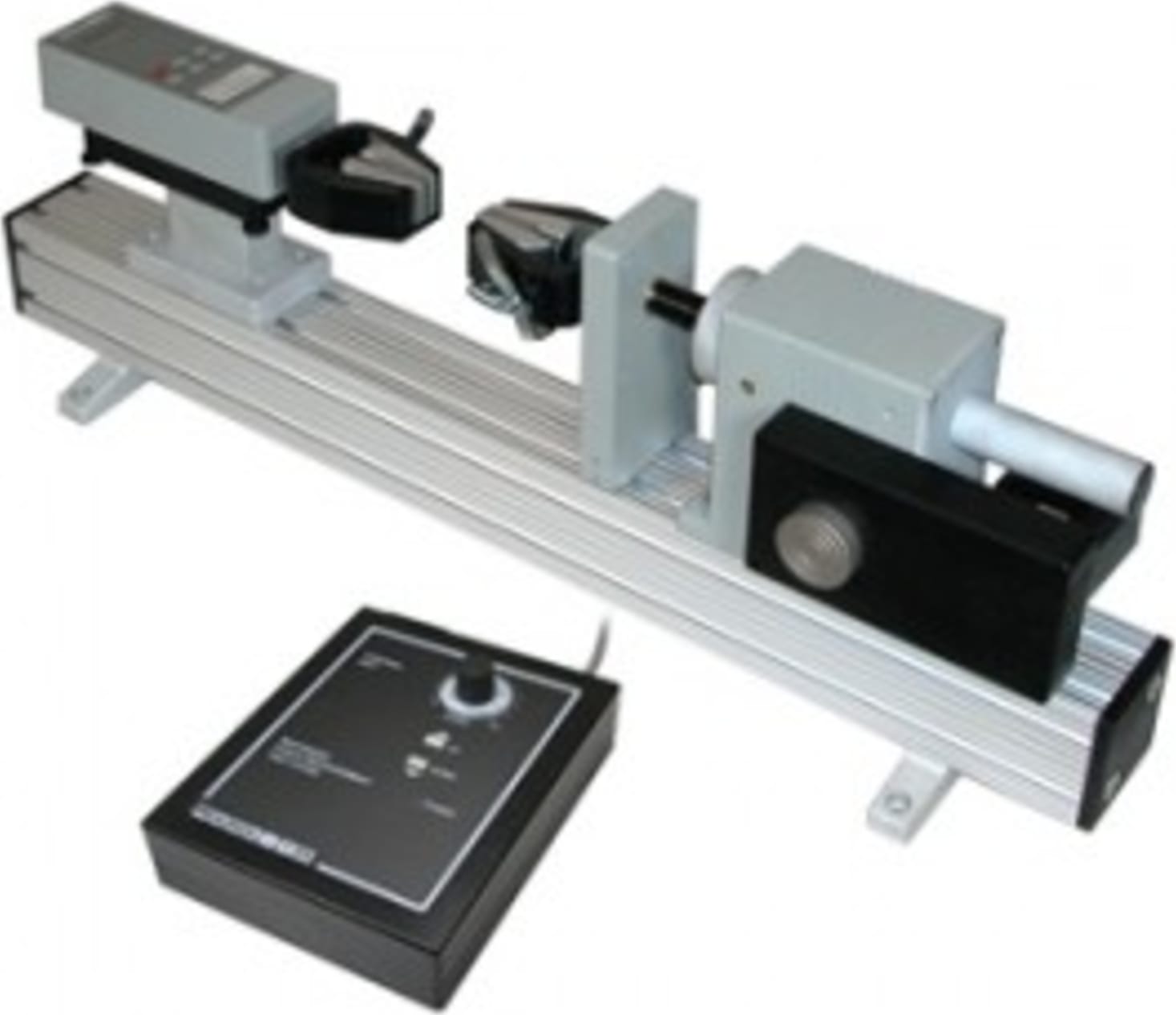

The TSFM500H is designed for compression and tension testing of springs, packaging, metals, fabrics, and other items requiring up to 500 lb of force. Generous clearance and throat depth accommodate a broad range of sample shapes and sizes. The stand features a remote control unit for added safety during testing. The TSFM500H’s durable and rigid column minimizes bend, making it particularly well suited for precision spring testing.

The operator can select from a speed range of 0.2 – 5.5 in/min. Customized speed ranges are available (contact Mark-10 for more information). Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing more precise and repeatable. Use any Mark-10 force gauge and force gripping fixtures to create a complete testing solution.

Available in vertical and horizontal orientations.

Optional equipment

• A wide range of force gauges and gripping fixtures
• Digital travel display 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection
• Limit switch kit
  Set of upper and lower adjustable solid state limit switches. Repeatable to within 0.001" [0.03 mm].
• Horizontal / wall mounting kit
  Set of mounting legs that attach to the test stand column in place of the base
• Overload protection module
  Protects the force gauge against accidental overloads during motorized tests. Adjustable from 20 - 110% of gauge's capacity. Compatible with all Mark-10 force gauges with outputs.
• Set point cable
  Stops test stand travel at programmable high and low set points for tension and compression forces, programmed on a compatible force gauge.
• Custom modifications
  Special modifications are available, including custom-designed fixtures, increased column length, and more. Call 1-888-MARK-TEN for more information.
• Custom speed ranges
  Contact Mark-10 for complete details.

For 220V operation, add suffix E to model number. Example: TSFM500HE

The TSFM500 / TSFM500H is supplied with four hooks (small, medium, large, and extra large), 1/2-20F adapter plate, 2" and 3" compression plates, two couplers (#10-32 coupler and 5/16-18), and wrench set.

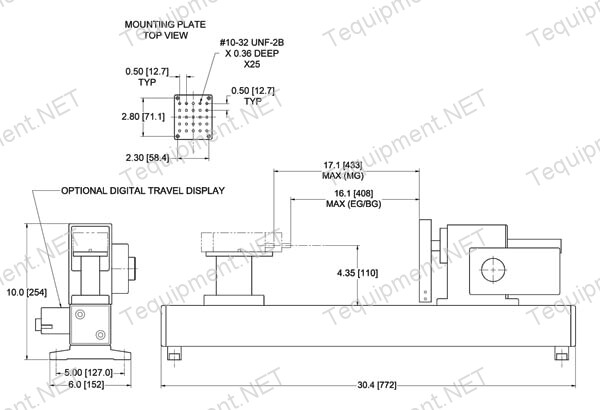

  Dimensions
