Test Stand for pull testing, compression testing

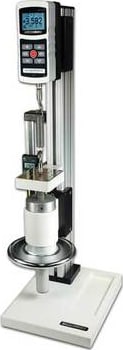

The TSC Force Measurement Test Stand is ruggedly built for testing up to 1,000 lb of compression or tension force.

A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.

The TSC / TSCH is supplied with a tool kit, medium hook, large hook, and a 2" diameter compression plate. Optional equipment

• A wide range of force gauges and gripping fixtures.
• Digital travel display
  6" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.001" [0.03 mm] accuracy, SPC output for automated data collection
• Horizontal / wall mounting kit
  Set of mounting legs that attach to the test stand column in place of the base
• Custom modifications
  Special modifications are available, including custom-designed fixtures, increased column length, and more.

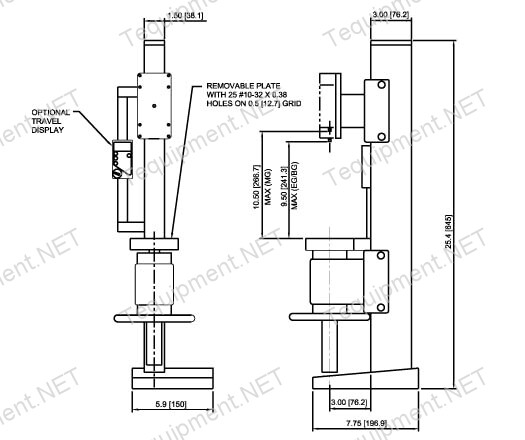

  Dimensions
