Tensile Tester, Compression Tester

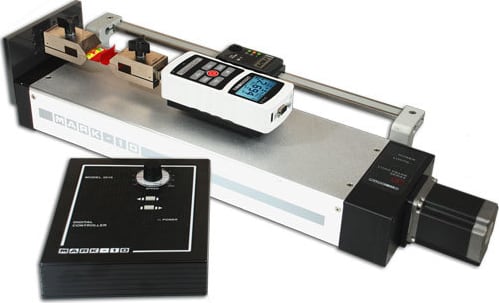

The new ESMHE is a 50 lb capacity horizontal test stand designed for tension, compression, and friction testing. A smooth top surface makes this tester particularly well suited for coefficient of friction testing. Other typical applications include the testing of sealed pouches, fabrics, tubing, sutures, and many other items in virtually every industry.

The tester features integrated limit switches for repetitive testing or other tests where travel limits are required. Modular design accommodates a wide variety of test sample shapes and sizes. The ESMHE uses a remote control unit, distancing the operator from the test for added safety and convenience. Use this test stand with a Mark-10 force gauge and grips to create a complete testing solution.

The ESMHE is supplied with a small hook, medium hook, 2" diameter compression plate, extension rod, and #10-32 coupler.

Optional equipment

• A wide range of force gauges and gripping fixtures
• Digital travel display
  12" [152 mm] travel, 0.0005" [0.01 mm] resolution, 0.002" [0.04 mm] accuracy, SPC output for automated data collection
• Overload protection module
  Protects the force gauge against accidental overloads during motorized tests. Adjustable from 20 - 110% of gauge's capacity. Compatible with all Mark-10 force gauges with outputs.
• Set point cable
  Stops test stand travel at programmable high and low set points for tension and compression forces, programmed on a compatible force gauge.
• Custom speed ranges
  Contact Mark-10 for complete details.Dimensions
