Mark-10 PTA - Plug and Test User-Configurable Adapter, with Software

Name: Mark-10 PTA - Plug and Test User-Configurable Adapter, with Software
Brand: Mark-10
SKU: Mark-10PTA
Price: 247.00 USD
Availability: InStock

0 reviews | Model: Mark-10 PTA

Images (5) | Videos (1)

Compare

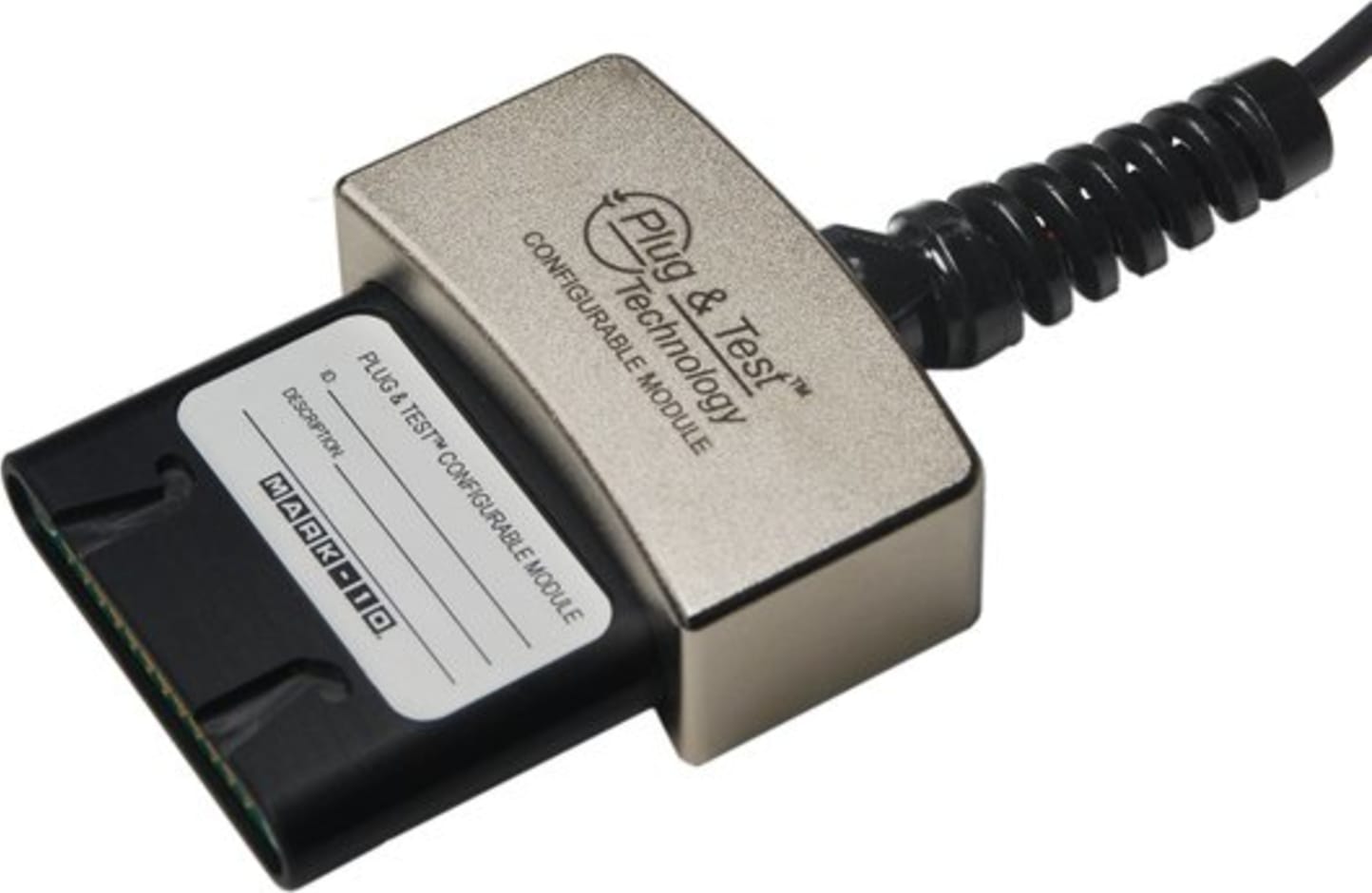

Plug and Test user-configurable adapter, with software

Compatible with strain gage-based load cells, force sensors, and torque sensors
Screw terminal block allows for easy connection of sensor wires
Software configuration utility is included, for easy programming of sensor capacity, resolution, and identification number
Program the adapter via USB or RS-232 through the indicator
Supplied with a strain relief, user-writeable identification label, and Resource CD with software
Designed to adapt customer-supplied load cells and torque sensors to our Models 5i and 3i indicators

View Product Details

List Price: $260.00

Your Price: $247.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Mark-10 PTA - Plug and Test User-Configurable Adapter, with Software

Connect common strain gauge-based load cells, force sensors, and torque sensors to our Models 5i and 3i indicators with this user-configurable adapter and software.

Sensor capacity and resolutions may be programmed via an included software utility, which includes a library of common force capacities from 0.12 to 750,000 lbF (0.5 N to 4,000 kN), and torque capacities from 10 ozFin to 40,000 lb-ft (7 Ncm to 57,000 Nm). An identification number may be programmed, which is displayed upon indicator power-up or the indicator’s Information screen.

Through Plug & TestTM technology, all configuration and calibration information is saved within the adapter. This flexibility allows for interchangeability between multiple sensors with both the 5i and 3i indicators.

Force Capacities and Resolution

Capacity							Resolution with model 5i indicator
lbF	ozF	kgF	gF	N	kN	mN	lbF	ozF	kgF	gF	N	kN	mN
0.12	2	-	50	0.5	-	500	0.00005	0.001	-	0.02	0.0002	-	0.2
0.25	4	-	100	1	-	1000	0.0001	0.002	-	0.05	0.0005	-	0.5
0.5	8	-	250	2.5	-	2500	0.0002	0.005	-	0.1	0.001	-	1
1	16	-	500	5	-	5000	0.0005	0.01	-	0.2	0.002	-	2
2	32	1	1000	10	-	-	0.001	0.02	0.0005	0.5	0.005	-	-
5	80	2.5	2500	25	-	-	0.002	0.05	0.001	1	0.01	-	-
10	160	5	5000	50	-	-	0.005	0.1	0.002	2	0.02	-	-
20	320	10	10000	100	-	-	0.01	0.2	0.005	5	0.05	-	-
25	400	10	10000	100	-	-	0.01	0.2	0.005	5	0.05	-	-
50	800	25	25000	250	-	-	0.02	0.5	0.01	10	0.1	-	-
75	1200	40	40000	400	-	-	0.05	0.5	0.02	20	0.2	-	-
100	1600	50	50000	500	-	-	0.05	1	0.02	20	0.2	-	-
150	2400	75	75000	750	-	-	0.1	2	0.05	50	0.5		-
200	3200	100	100000	1000	-	-	0.1	2	0.05	50	0.5		-
250	4000	100	-	1000	1.1	-	0.1	2	0.05	-	0.5	0.0005	-
300	4800	150	-	1500	1.5	-	0.2	5	0.1	-	1	0.001	-
500	8000	250	-	2500	2.5	-	0.2	5	0.1	-	1	0.001	-
750	12000	400	-	4000	4	-	0.5	10	0.2	-	2	0.002	-
1000	16000	500	-	5000	5	-	0.5	10	0.2	-	2	0.002	-
1500	24000	750	-	7500	7.5	-	1	20	0.5	-	5	0.005	-
2000	32000	1000	-	10000	10	-	1	20	0.5	-	5	0.005	-
2500	-	1000	-	10000	10	-	1	-	0.5	-	5	0.005	-
3000	-	1500	-	15000	15	-	2	-	1	-	10	0.01	-
5000	-	2500	-	25000	25	-	2	-	1	-	10	0.01	-
7500	-	4000	-	40000	40	-	5	-	2	-	20	0.02	-
10000	-	5000	-	50000	50	-	5	-	2	-	20	0.02	-
15000	-	7500	-	75000	75	-	10	-	5	-	50	0.05	-
20000	-	10000	-	100000	100	-	10	-	5	-	50	0.05	-
25000	-	10000	-	100000	100	-	10	-	5	-	50	0.05	-
30000	-	15000	-	150000	150	-	20	-	10	-	100	0.1	-
50000	-	25000	-	250000	250	-	20	-	10	-	100	0.1	-
75000	-	40000	-	400000	400	-	50	-	20	-	200	0.2	-
100000	-	50000	-	500000	500	-	50	-	20	-	200	0.2	-
150000	-	75000	-	750000	750	-	100	-	50	-	500	0.5	-
200000	-	100000	-	-	1000	-	100	-	50	-	-	0.5	-
250000	-	100000	-	-	1000	-	100	-	50	-	-	0.5	-
300000	-	150000	-	-	1500	-	200	-	100	-	-	1	-
500000	-	250000	-	-	2500	-	200	-	100	-	-	1	-
750000	-	400000	-	-	4000	-	500	-	200	-	2	-	-

Capacity					Resolution with model 3i indicator
lbF	kgF	gF	N	kN	lbF	kgF	gF	N	kN
0.12	-	50	0.5	-	0.0001	-	0.05	0.0005	-
0.25	-	100	1	-	0.0002	-	0.1	0.001	-
0.5	-	250	2.5	-	0.0005	-	0.2	0.002	-
1	-	500	5	-	0.001	-	0.5	0.005	-
2	1	1000	10	-	0.002	0.001	-	0.01	-
5	2.5	2500	25	-	0.005	0.002	-	0.02	-
10	5	5000	50	-	0.01	0.005	-	0.05	-
20	10	10000	100	-	0.02	0.01	-	0.1	-
25	10	10000	100	-	0.02	0.01	-	0.1	-
50	25	25000	250	-	0.05	0.02	-	0.2	-
75	40	40000	400	-	0.1	0.05	-	0.5	-
100	50	50000	500	-	0.1	0.05	-	0.5	-
150	75	75000	750	-	0.2	0.1	-	1	-
200	100	100000	1000	-	0.2	0.2	-	2	-
250	100	-	1000	1.1	0.2	0.2	-	2	-
300	150	-	1500	1.5	0.5	0.2	-	2	-
500	250	-	2500	2.5	0.5	0.2	-	2	-
750	400	-	4000	4	1	0.5	-	5	-
1000	500	-	5000	5	1	0.5	-	5	-
1500	750	-	7500	7.5	2	1	-	10	-
2000	1000	-	10000	10	2	1	-	10	-
2500	1000	-	10000	10	2	1	-	10	-
3000	1500	-	15000	15	5	2	-	20	-
5000	2500	-	25000	25	5	2	-	20	-
7500	4000	-	40000	40	10	5	-	50	-
10000	5000	-	50000	50	10	5	-	50	-
15000	7500	-	75000	75	20	10	-	100	-
20000	10000	-	100000	100	20	10	-	100	-
25000	10000	-	100000	100	20	10	-	100	-
30000	15000	-	150000	150	50	20	-	200	-
50000	25000	-	250000	250	50	20	-	200	-
75000	40000	-	400000	400	100	50	-	500	-
100000	50000	-	500000	500	100	50	-	500	-
150000	75000	-	750000	750	200	100	-	1000	-
200000	100000	-	-	1000	200	100	-	-	1
250000	100000	-	-	1000	200	100	-	-	1
300000	150000	-	-	1500	500	200	-	-	2
500000	250000	-	-	2500	500	200	-	-	2
750000	400000	-	-	4000	1000	500	-	-	5

Torque Capacities & Resolutions

Capacity
lbFin	ozFin	lbFft	Ncm	Nm	Nmm	kgFmm	gFcm	kgFm
-	10	-	7	-	70	7	700	-
-	20	-	14	-	140	14	1400	-
-	50	-	35	-	350	35	3500	-
-	100	-	70	-	700	70	7000	-
-	1000	-	700	-	7000	700	70000	-
12	192	1	135	1.35	-	-	-	-
20	320	1.5	220	2.2	-	-	-	-
25	400	2	290	2.9	-	-	-	-
50	800	4	570	5.7	-	-	-	-
100	1600	8	1150	11.5	-	-	-	-
150	-	12.5	1700	17	-	1700	-	-
200	-	16	2200	22	-	2200	-	-
250	-	20	2800	28	-	2800	-	-
400	-	32	4500	45	-	4500	-	-
500	-	40	5800	57	-	5800	-	-
600	-	50	6900	69	-	6900	-	-
1000	-	80	11500	115	-	11500	-	-
1500	-	125	17000	170	-	17000	-	-
2000	-	150	22000	220	-	22000	-	-
2500	-	200	29000	290	-	29000	-	-
5000	-	400	57000	570	-	58000	-	-
6000	-	500	69000	690	-	69000	-	-
10000	-	800	115000	1150	-	-	-	115
15000	-	1250	170000	1700	-	-	-	170
20000	-	2000	220000	2200	-	-	-	220
50000	-	4000	570000	5700	-	-	-	580
100000	-	8000	-	11500	-	-	-	1150
150000	-	12500	-	17000	-	-	-	1700
200000	-	15000	-	22000	-	-	-	2200
500000	-	40000	-	57000	-	-	-	5800

Resolution with model 5i indicator
lbFin	ozFin	lbFft	Ncm	Nm	Nmm	kgFmm	gFcm	kgFm
-	0.005	-	0.005	-	0.05	0.005	0.5	-
-	0.01	-	0.01	-	0.1	0.01	1	-
-	0.02	-	0.02	-	0.2	0.02	2	-
-	0.05	-	0.05	-	0.5	0.05	5	-
-	0.5	-	0.5	-	5	0.5	50	-
0.005	0.1	0.0005	0.1	0.001	-	-	-	-
0.01	0.2	0.001	0.1	0.001	-	-	-	-
0.01	0.2	0.001	0.2	0.002	-	-	-	-
0.02	0.5	0.002	0.5	0.005	-	-	-	-
0.05	1	0.005	0.5	0.005	-	-	-	-
0.1	-	0.01	1	0.01	-	1	-	-
0.1	-	0.01	1	0.01	-	1	-	-
0.2	-	0.02	2	0.02	-	2	-	-
0.2	-	0.02	2	0.02	-	2	-	-
0.2	-	0.02	2	0.02	-	5	-	-
0.5	-	0.05	5	0.05	-	5	-	-
0.5	-	0.05	5	0.05	-	5	-	-
1	-	0.1	10	0.1	-	10	-	-
1	-	0.1	10	0.1	-	10	-	-
1	-	0.1	20	0.2	-	20	-	-
2	-	0.2	20	0.2	-	50	-	-
5	-	0.5	50	0.5	-	50	-	-
5	-	0.5	50	0.5	-	-	-	0.05
10	-	1	100	1	-	-	-	0.1
10	-	1	100	1	-	-	-	0.1
20	-	2	200	2	-	-	-	0.5
50	-	5	-	5	-	-	-	0.5
100	-	10	-	10	-	-	-	1
100	-	10	-	10	-	-	-	1
200	-	20	-	20	-	-	-	5

Capacity						Resolution with model 3i indicator
lbFin	ozFin	Ncm	Nm	kgFmm	kgFm	lbFin	ozFin	Ncm	Nm	kgFmm	kgFm
-	10	7	-	7	-	-	0.01	0.01	-	0.01	-
-	20	14	-	14	-	-	0.02	0.02	-	0.02	-
-	50	35	-	35	-	-	0.05	0.05	-	0.05	-
-	100	70	-	70	-	-	0.1	0.1	-	0.1	-
-	1000	700	-	700	-	-	1	1	-	1	-
12	192	135	-	-	-	0.01	0.2	0.2	-	-	-
20	320	220	-	-	-	0.02	0.5	0.2	-	-	-
25	400	290	-	-	-	0.02	0.5	0.2	-	-	-
50	800	570	-	-	-	0.05	1	0.5	-	-	-
100	1600	1150	-	-	-	0.1	2	1	-	-	-
150	-	1700	-	1700	-	0.2	-	2	-	2	-
200	-	2200	-	2200	-	0.2	-	2	-	2	-
250	-	2800	-	2800	-	0.2	-	2	-	2	-
400	-	4500	-	4500	-	0.5	-	5	-	5	-
500	-	5800	-	5800	-	0.5	-	5	-	5	-
600	-	6900	-	6900	-	1	-	10	-	10	-
1000	-	11500	-	11500	-	1	-	10	-	10	-
1500	-	17000	-	17000	-	2	-	20	-	20	-
2000	-	22000	-	22000	-	2	-	20	-	20	-
2500	-	29000	-	29000	-	2	-	20	-	20	-
5000	-	57000	-	58000	-	5	-	50	-	100	-
6000	-	69000	-	69000	-	5	-	50	-	100	-
10000	-	115000	-	-	1150	10	-	100	-	-	0.1
15000	-	170000	-	-	1700	20	-	200	-	-	0.2
20000	-	220000	-	-	2200	20	-	200	-	-	0.2
50000	-	570000	-	-	5800	50	-	500	-	-	1
100000	-	-	11500	-	11500	100	-	-	10	-	1
150000	-	-	17000	-	17000	200	-	-	20	-	2
200000	-	-	22000	-	22000	200	-	-	50	-	2
500000	-	-	57000	-	57000	400	-	-	50	-	10
