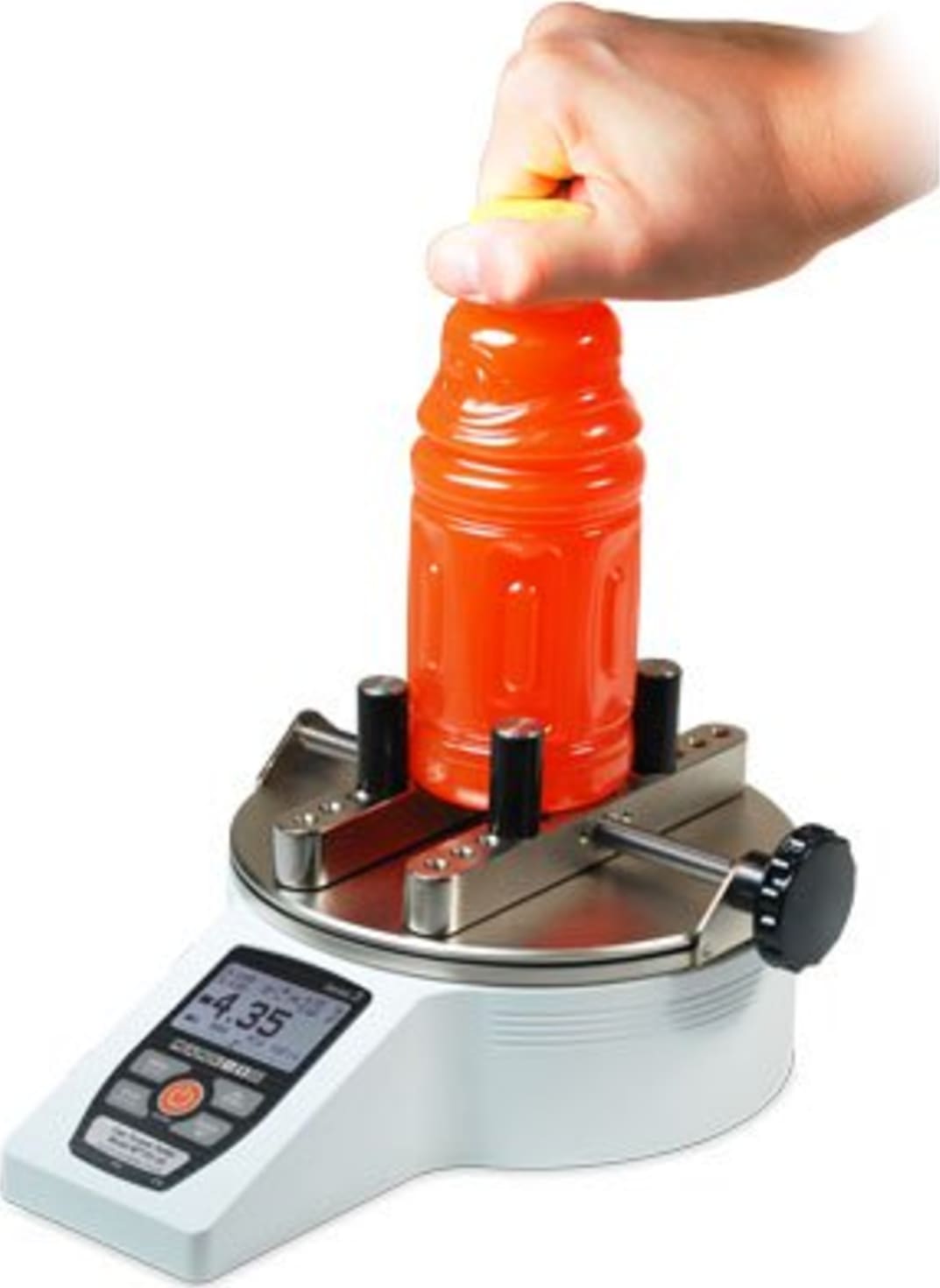

Cap Torque Tester
Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
Series TT01 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
![DataAnalysis-MESURgauge-Acquisition_small]() |
|
|
|
![Cap_Torque_Tester-TT01-CT006-OP]() |
| MESUR gauge Software |
|
|
|
Extended length posts |
MESURTMgauge is a measuring and analysis program designed to expand the functionality of force and torque measuring instruments.
sample break. |
|
|
|
2.5" (63 mm) and 4" (101 mm) lengths available. |
| |
|
|
|
|
![Cap_Torque_Tester-CT001-FlatJaws-]() |
|
|
|
![Cap_Torque_Tester-CT003-image]() |
| Flat rubber jaws |
|
|
|
Adjustable jaws |
| Set of rubber jaws for gripping square or odd shaped containers. |
|
|
|
Rubber-edged arms may be independently repositioned to accommodate unique samples. |
| |
|
|
|
|
![CT_with_case]() |
|
|
|
![Cap_Torque_Tester-AC1036-CalibrationKit-medium]() |
| Carrying case |
|
|
|
Calibration kit |
| Provides storage space for the TT01 tester, gripping jaws, AC adapter, and accessories. |
|
|
|
Complete set of brackets, cable, AC1036 and hardware for calibration of any Series TT01 torque tester. Weights not available from Mark-10. |
