Mark-10 MR06-200 Current Sensors

Name: Mark-10 MR06-200 Current Sensors
Brand: Mark-10
SKU: Mark-10MR06-200
Price: 1748.00 USD
Availability: InStock

0 reviews | Model: Mark-10 MR06-200

Compare

Wire pull force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN

Member of the Plug & Test family of interchangeable sensors and indicators
Ergonomic handles and convenient tensioning mechanism
Measures pull forces
NIST-traceable certificate of calibration with data included

View Product Details

List Price: $1,840.00

Your Price: $1,748.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Wire Crimp Pull Sensor Model

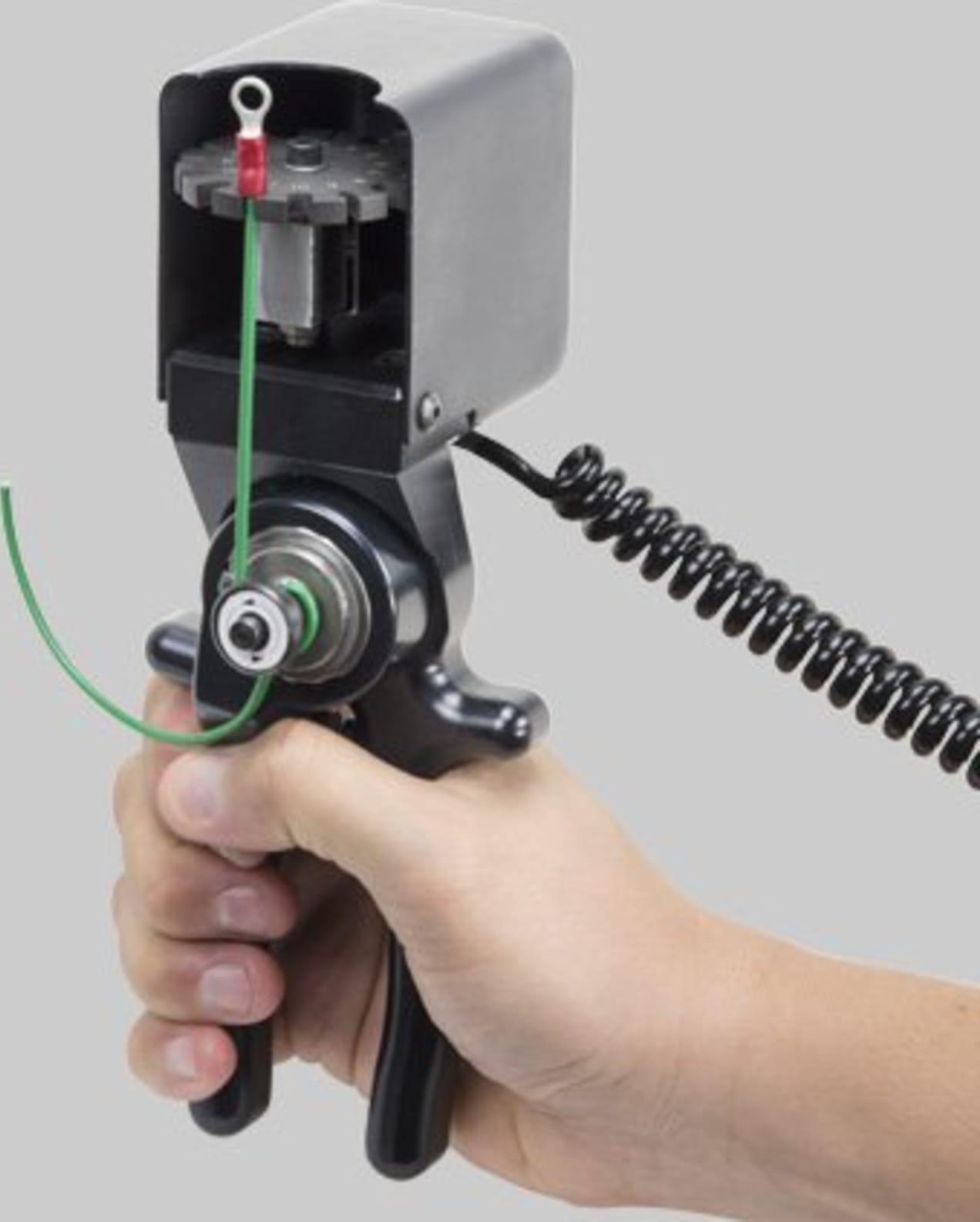

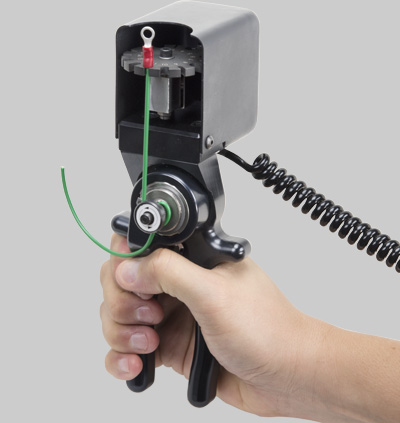

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diamaters, up to 0.25 in. (6.4 mm).

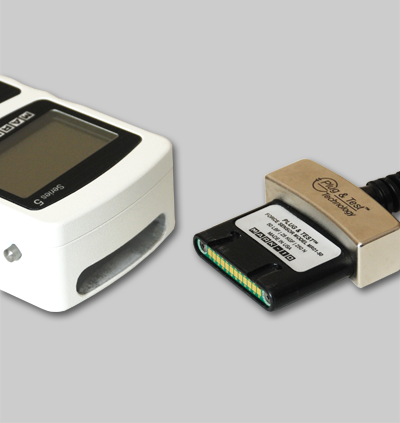

Appropriate Orientation of Plug & Test Connector

R06-200_5i-force-torque-indicator-3

Unique Plug & TestTM technology allows for interchangeable sensors to be used with a Mark- 10 indicator. All calibration and configuration data is saved in the smart connector.

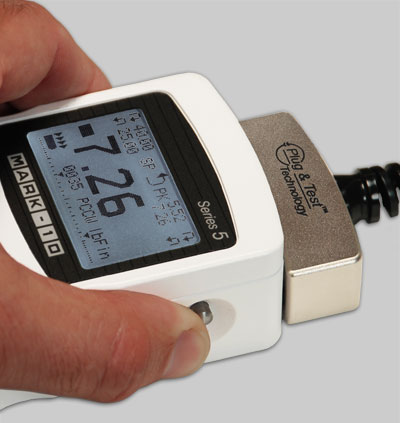

Plug & Test Connector

R06-200_5i-force-torque-indicator-7

The Plug & TestTM connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

Slot dimensions (in [mm])	0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]
Safe Overload	150% of full scale
Capacity x Resolution Model 7i & 5i	200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN
Capacity x Resolution Model 3i	200 x 0.2 lbF, 100 x 0.1 kgF, 1000 x 1 N
