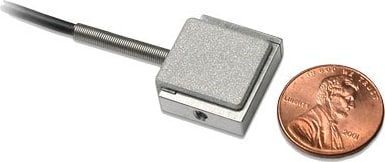

Mark-10 MR04-025 Plug and Test Force Sensor

Name: Mark-10 MR04-025 Plug and Test Force Sensor
Brand: Mark-10
SKU: Mark-10MR04-025
Price: 945.25 USD
Availability: InStock

0 reviews | Model: Mark-10 MR04-025

Compare

Force sensor, 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN (availability not guaranteed)

Member of the Plug & TestTM family of interchangeable sensors and indicators
Ultra-compact size
Measures tensile and compressive forces
NIST-traceable certificate of calibration with data included
Accuracy: ±0.2% of full scale + indicator
Weight: 0.015 lb (0.007 kg)
Warranty: 3 years

View Product Details

List Price: $995.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the Mark-10 MR04-025

Mark-10 AC1018 Mounting kit, R01/R03 to test stand

Catalog: AC1018

(0)

In Stock!

Add to Cart

Mark-10 MR04-025 Plug and Test Force Sensor

Measures tensile and compressive forces
NIST-traceable certificate of calibration with data included
Accuracy: ±0.2% of full scale + indicator
Weight: 0.015 lb (0.007 kg)

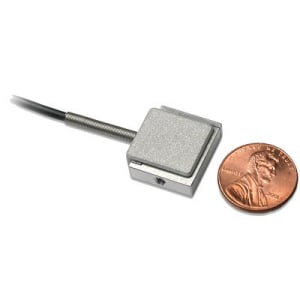

Series R04 smart sensors are designed for tension and compression measurement applications with tight space constraints. These extremely compact force sensors feature threaded holes on two sides, which can accept a variety of hooks and implements. Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 indicators (sold separately) through unique Plug & Test™ technology.

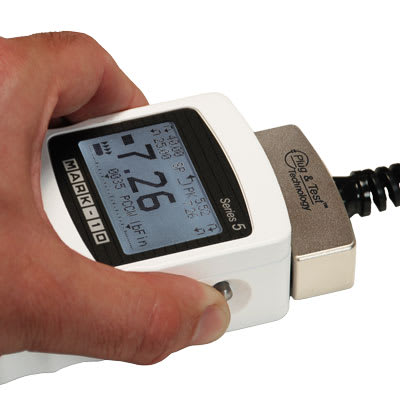

Unique Plug & Test TM technology allows for interchangeable sensors to be used with any Mark-10 indicator. All calibration and configuration data is saved in the smart connector.

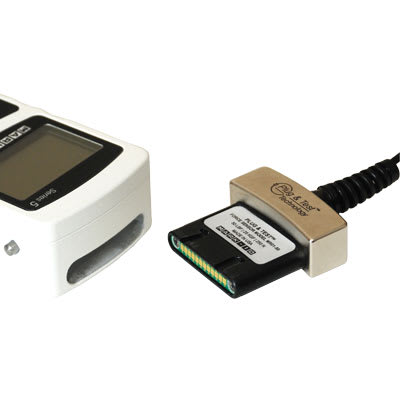

The Plug & Test TM connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

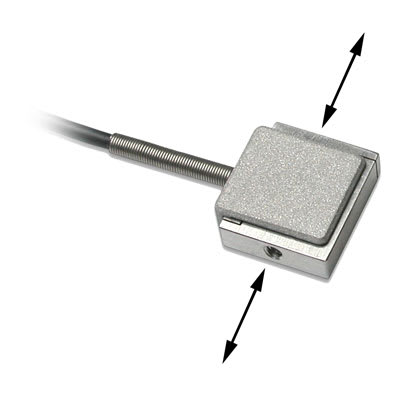

Force is applied to these surfaces. Threaded holes are supplied on both sides to accommodate various mounting configurations and attachments.

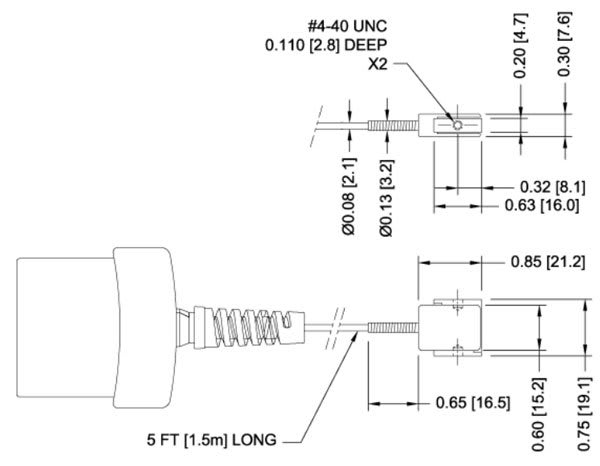

Dimensions in [mm]

General Specifications
Accuracy	±0.2% of full scale + indicator
Safe Overload	200% of full scale
Weight	0.015 lb [0.007kg]

Model	Capacity x resolution with Models 7i & 5i indicators
Model	lbF	ozF	gF	kgF	N	mN
MR04-025	0.25 x 0.0001	4 x 0.002	100 x 0.05	-	1 x 0.0005	1000 x 0.5
MR04-05	0.5 x 0.0002	8 x 0.005	250 x 0.1	-	2.5 x 0.001	2500 x 1
MR04-2	2 x 0.001	32 x 0.02	1000 x 0.5	1 x 0.0005	10 x 0.005	-
MR04-5	5 x 0.002	80 x 0.05	2500 x 1	2.5 x 0.001	25 x 0.01	-
MR04-10	10 x 0.005	160 x 0.1	5000 x 2	5 x 0.002	50 x 0.02	-
MR04-20	20 x 0.01	320 x 0.2	10000 x 5	10 x 0.005	100 x 0.05	-
MR04-50	50 x 0.02	800 x 0.5	25000 x 10	25 x 0.01	250 x 0.1	-
MR04-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.2	-

Model	Capacity x Resolution with Model 3i indicator
Model	lbF	gF	kgF	N
MR04-025	0.25 x 0.0002	100 x 0.1	-	1 x 0.001
MR04-05	0.5 x 0.0005	250 x 0.2	-	2.5 x 0.002
MR04-2	2 x 0.002	-	1 x 0.001	10 x 0.01
MR04-5	5 x 0.005	-	2.5 x 0.002	25 x 0.02
MR04-10	10 x 0.01	-	5 x 0.005	50 x 0.05
MR04-20	20 x 0.02	-	10 x 0.01	100 x 0.1
MR04-50	50 x 0.05	-	25 x 0.02	250 x 0.2
MR04-100	100 x 0.1	-	50 x 0.05	500 x 0.5

Model	Description
MR04-025	Force sensor, miniature, 0.25 lbF / 1 N
MR04-05	Force sensor, miniature, 0.5 lbF / 2.5 N
MR04-2	Force sensor, miniature, 2 lbF / 10 N
MR04-5	Force sensor, miniature, 5 lbF / 25 N
MR04-10	Force sensor, miniature, 10 lbF / 50 N
MR04-20	Force sensor, miniature, 20 lbF / 100 N
MR04-50	Force sensor, miniature, 50 lbF / 250 N
MR04-100	Force sensor, miniature, 100 lbF / 500 N

Test Equipment General Attributes
Country of Origin	United States
