Mark-10 MR01-2000-01 - Tension and Compression Force Sensor

Name: Mark-10 MR01-2000-01 - Tension and Compression Force Sensor
Brand: Mark-10
SKU: Mark-10MR01-2000-01
Price: 536.75 USD
Availability: InStock

0 reviews | Model: Mark-10 MR01-2000-01

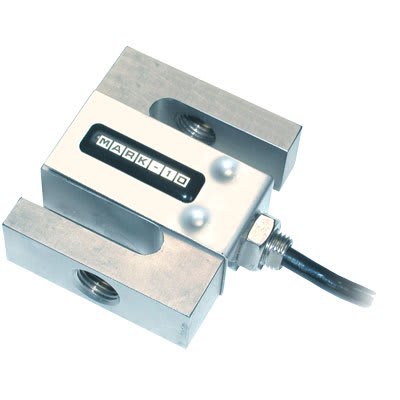

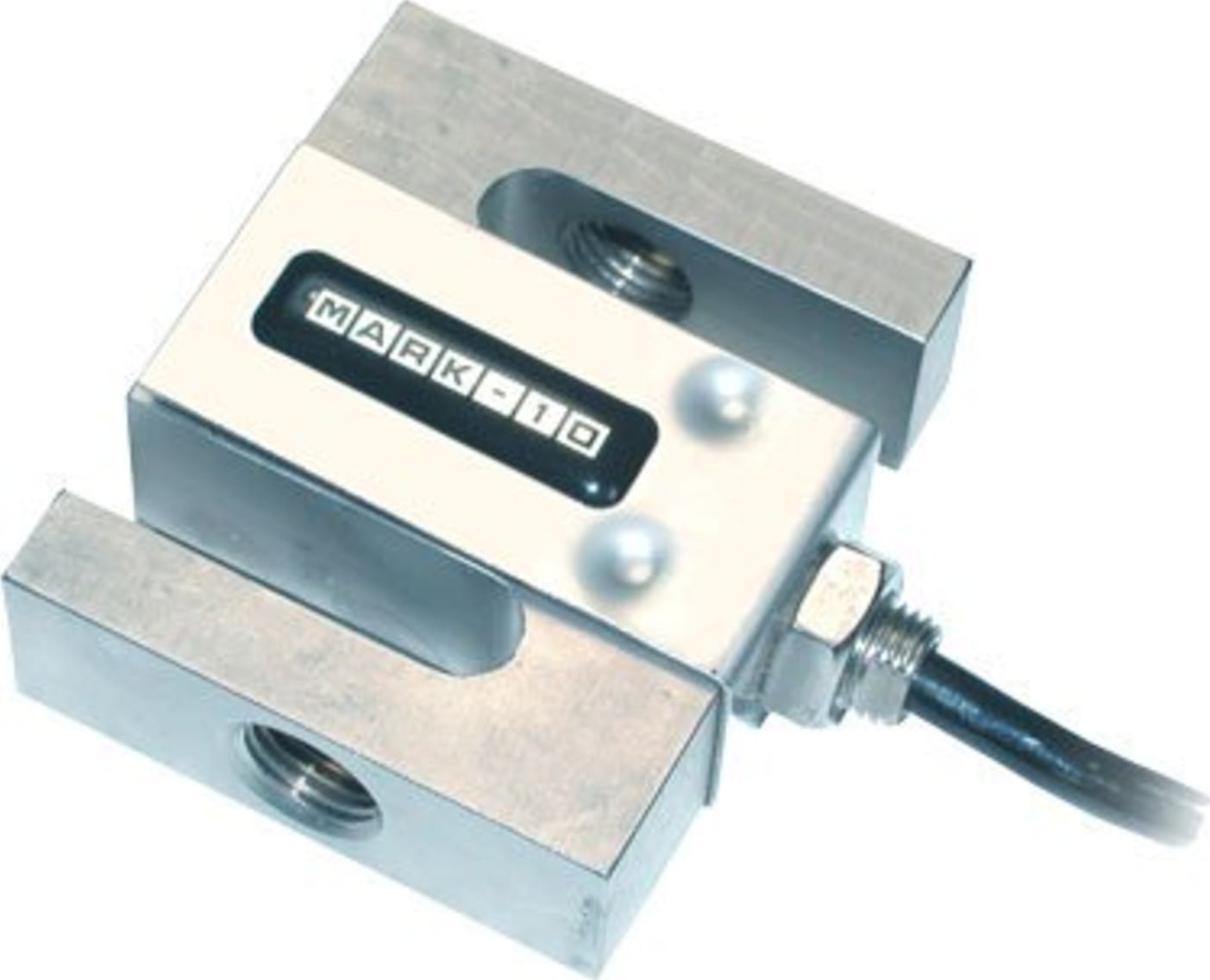

Mark-10 R01 Series Tension and Compression Force Sensor

Compare

Mark-10 Force Sensor 2000lbF 10 inch cable.

Mark-10 Force Sensor 2000lbF 10 inch cable.
Member of the Plug & Test family of interchangeable sensors and indicators
Measures tensile and compressive forces
Accuracy: ± 0.15% of full scale + indicator
Weight: From 1.9 to 3 lb (0.9 to 1.4 kg)
Warranty: 3 years
NIST-traceable certificate of calibration with data included

View Product Details

List Price: $565.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the Mark-10 MR01-2000-01

Mark-10 AC1018 Mounting kit, R01/R03 to test stand

Catalog: AC1018

(0)

In Stock!

Add to Cart

Mark-10 AC1062 Mounting kit, indicator / load cell to ESM303

Catalog: AC1062

(0)

In Stock!

Add to Cart

Mark-10 MR01-2000-01 - Tension and Compression Force Sensor

Mark-10 Force Sensor 2000lbF 10 inch cable.
Member of the Plug & Test family of interchangeable sensors and indicators
Measures tensile and compressive forces
Accuracy: ± 0.15% of full scale + indicator
Weight: From 1.9 to 3 lb (0.9 to 1.4 kg)
Warranty: 3 years
NIST-traceable certificate of calibration with data included

Series R01 rugged smart sensors are designed for measuring tension and compression force, with applications in virtually every industry. Durable S-Beam design with threaded holes on two sides allows for many configurations.

The sensor can be integrated into an existing system or mounted to a Mark-10 test stand. A shortened cable is available for mounting to an ESM1500LC test stand*. Capacities available from 50 to 10,000 lbF [250 N to 50 kN]. Compatible with Mark-10 indicators (sold separately) through unique Plug & TestTM technology.

General Specifications
Accuracy	±0.15% of full scale + indicator
Safe Overload	150% of full scale
Weight	1.9 to 3.0 lb [0.9 to 1.4 kg], depending on model

Model	Capacity x resolution with Models 7i & 5i indicators
Model	lbF	ozF	gF	kgF	N	kN
MR01-50	50 x 0.02	800 x 0.5	25000 x 10	25 x 0.01	250 x 0.1	-
MR01-100	100 x 0.05	1600 x 1	50000 x 20	50 x 0.02	500 x 0.5	-
MR01-200	200 x 0.1	3200 x 2	-	100 x 0.05	1000 x 0.5	1 x 0.0005
MR01-500	500 x 0.2	8000 x 5	-	250 x 0.1	2500 x 1	2.5 x 0.001
MR01-1000	1000 x 0.5	16000 x 10	-	500 x 0.2	5000 x 2	5 x 0.002
MR01-2000	2000 x 1	32000 x 20	-	1000 x 0.5	10000 x 5	10 x 0.005
MR01-5000	5000 x 2	-	-	2500 x 1	25000 x 10	25 x 0.01
MR01-10000	10000 x 5	-	-	5000 x 2	50000 x 25	50 x 0.02

Model	Capacity x Resolution with Model 3i indicator
Model	lbF	kgF	N	kN
MR01-50	50 x 0.05	25 x 0.02	250 x 0.2	-
MR01-100	100 x 0.1	50 x 0.05	500 x 0.5	-
MR01-200	200 x 0.2	100 x 0.1	1000 x 1	-
MR01-500	500 x 0.5	250 x 0.2	2500 x 2	-
MR01-1000	1000 x 1	500 x 0.5	5000 x 5	-
MR01-2000	2000 x 2	1000 x 1	10000 x 10	-
MR01-5000	5000 x 5	2500 x 2	-	25 x 0.02
MR01-10000	10000 x 10	5000 x 5	-	50 x 0.05

Model	A	B	C	D	E	F
MR01-50*	2.40 [61.0]	2.00 [50.8]	0.46 [11.7]	0.65 [16.5]	1/4-28 UNF	MR01-XXXXX: 20 ft [6 m] MR01-XXXX-1: 7.5 in [191 mm]
MR01-100*
MR01-200*
MR01-500*			0.71 [18.0]	0.90 [22.9]	1/2-20 UNF
MR01-1000*
MR01-2000*			0.96 [24.4]	1.15 [29.2]
MR01-5000	3.90 [99.1]	3.00 [76.2]			3/4-16 UNF
MR01-10000
* Add suffix “-1” for shortened cable, for use on the ESM1500LC test stand. Ex: MR01-1000-1. “-1” sensors include hardware for mounting to the ESM1500LC's crosshead.

Tech Specs

Test Equipment General Attributes
Country of Origin	United States
