This fixture is designed for applications in the packaging and food and beverage industries. Typical applications include the testing of adhesives, films, and packaging, such as foil seals found on yogurt containers, juice containers, and others.

A large flat working table with mounting holes accommodates a range of sample sizes. As the test stand crosshead moves vertically, the table moves horizontally, maintaining a 90° angle between the table and the direction of pull. The table is connected to the crosshead via a cable.

A unique limit switch option is available for motorized test stands to prevent cable breakage due to excessive movement.

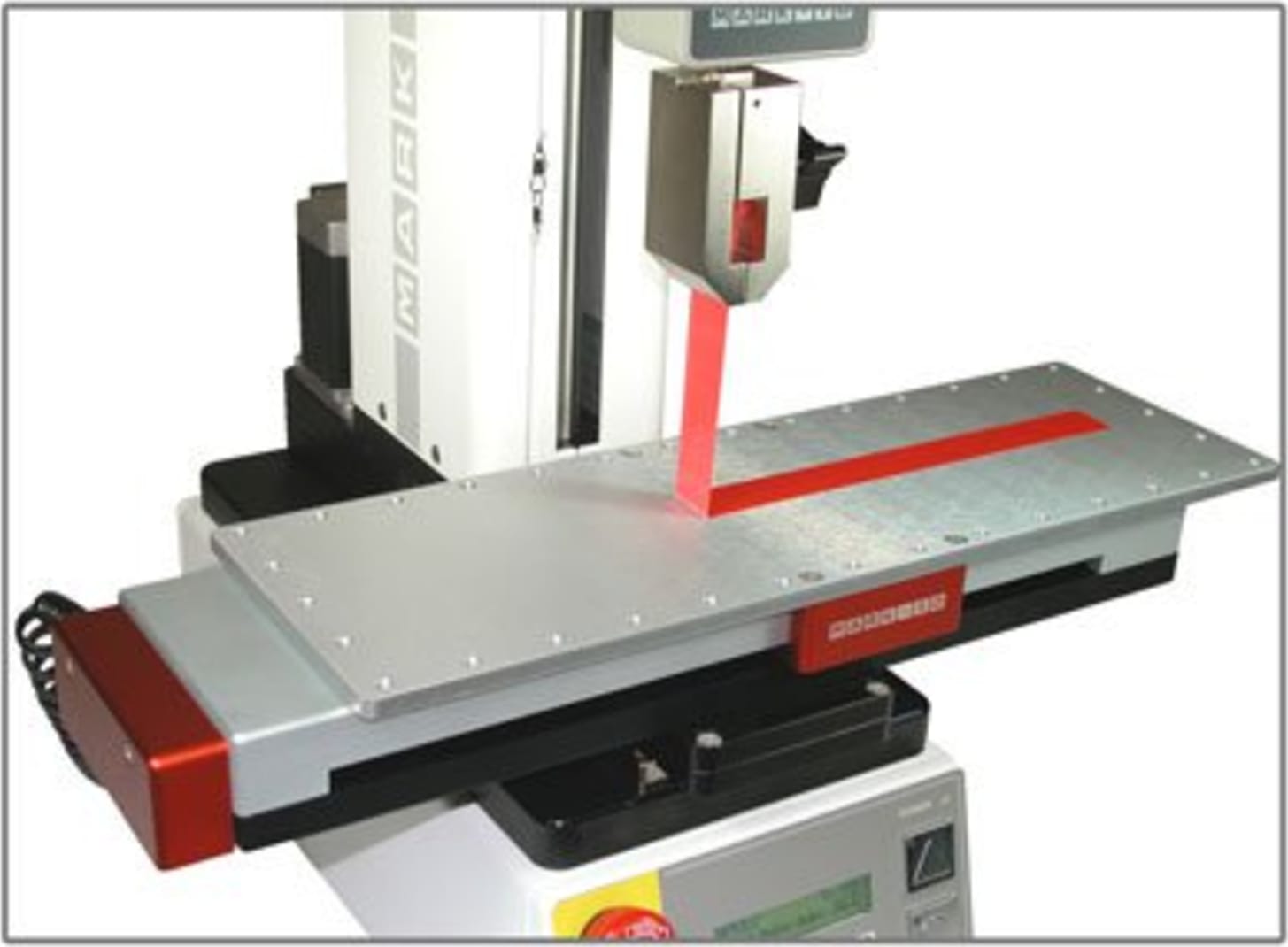

The G1045 is shown in a typical 90° peel test for a strip of adhesive tape. The fixture is mounted on an ESM301 motorized test stand with optional limit switch, digital force gauge, and G1008 film & paper grip.

Optional Equipment


Limit switch

Prevents cable breakage due to excessive movement. When the table reaches its limit of travel, test stand movement stops. Compatible with Mark-10 motorized test stands.






Swivel adapter

Swiveling action provides proper sample alignment in pull testing applications.
