Mark-10 ESM303-003 - Shield Safety

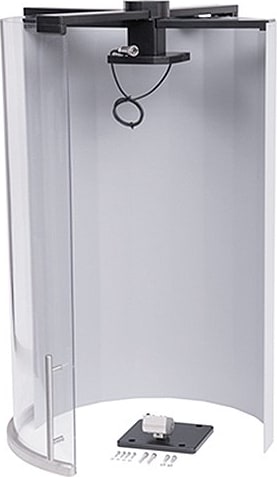

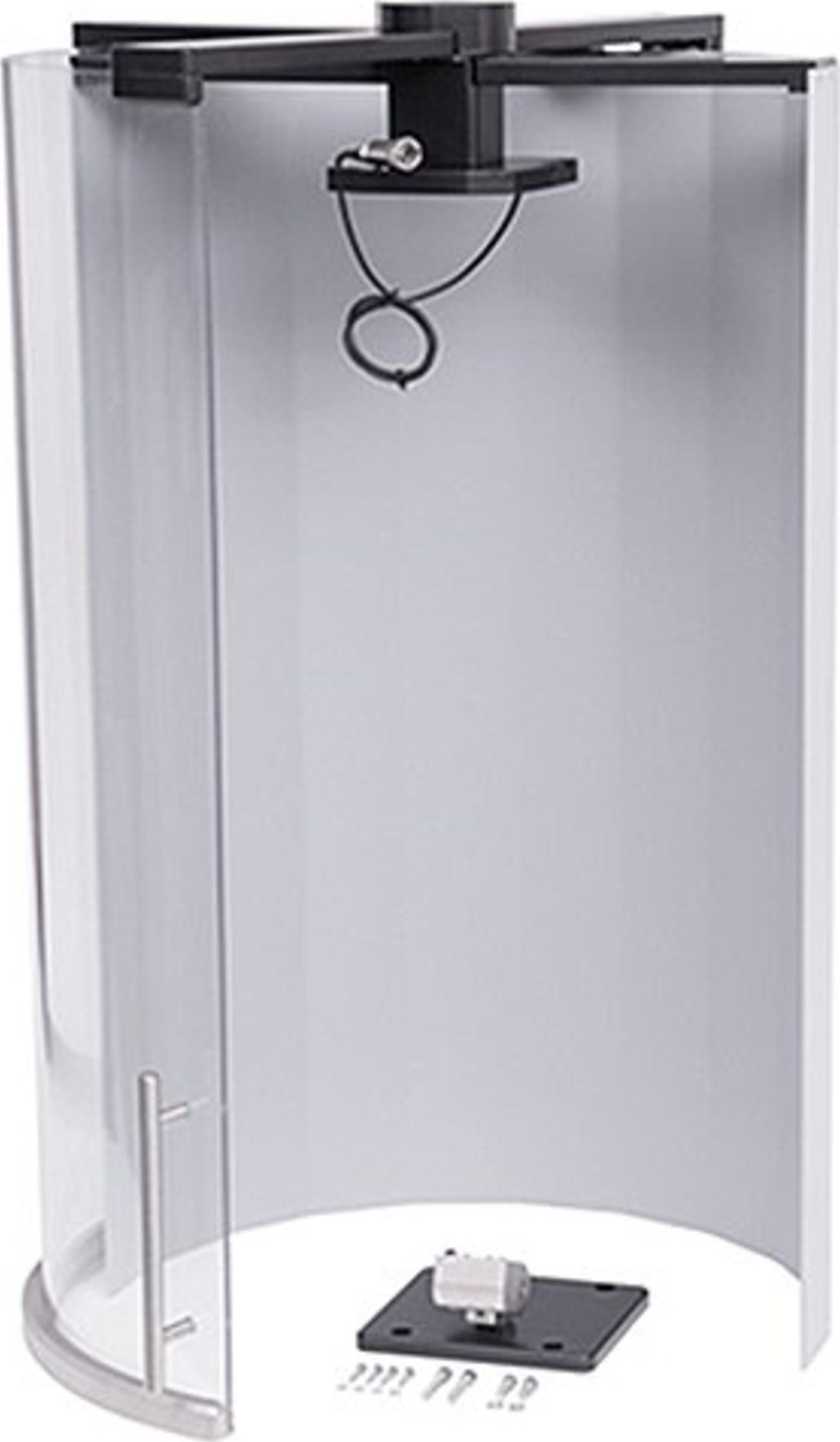

The ESM303-003 safety shield is designed for use with the Mark-10 ESM303 motorized test stand. When properly used, it can protect the operator against the dangers of airborne debris resulting from compression and tension force testing.

This safety shield attaches to an ESM303 test stand, providing pinch and sample debris protection for the operator. The shield is constructed of rugged PETG material. It rotates via ultra-smooth bearings in both the clockwise and counter-clockwise directions, guided into the open or closed positions with magnetic detents. An electrical interlock prevents test stand operation while the door is open.

For crosshead adjustment during sample loading, the FollowMe™ force-based positioning function is active even while the door is open. The FollowMeTM function is included with the shield, and does not need to be separately ordered with the test stand.
