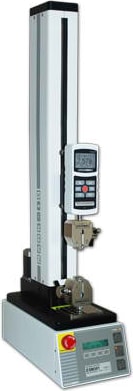

Mark-10 ESM301L-001 Integrated Travel Indicator With Rs-232 Output, For Esm301l

Name: Mark-10 ESM301L-001 Integrated Travel Indicator With Rs-232 Output, For Esm301l
Brand: Mark-10
SKU: Mark-10ESM301L-001
Price: 902.50 USD
Availability: InStock

0 reviews | Model: Mark-10 ESM301L-001

Compare

Integrated travel indication with RS-232 output, for ESM301L

Selectable speed units of measurement (in/min & mm/min)
LCD display with UP, DOWN, STOP, and emergency stop buttons and soft keys
Password protection of test parameters, to prevent unauthorized changes
Integrated mechanical limit switches
Removable fixture mounting plate with matrix of threaded holes
Stepper motor-driven, produces 0% speed variation with load
Mounting holes for bench mounting
Unique mechanical design significantly reduces column bending

View Product Details

List Price: $950.00

In Stock:

View Payment Options

Recommended for you

Motorized Force Test Stands

The ESM301 and the new ESM301L are highly configurable motorized test stands for tension and compression testing applications up to 300 lb (1.5 kN). The stands can be controlled from the front panel or via computer.

The ESM301/ESM301L is engineered on a unique modular platform, allowing for "build-your-own" configurability. Features can be ordered individually at time of order or activated in the field. Integrated travel indication, overload protection, and a host of programmable parameters makes the ESM301/ESM301L quite sophisticated, while its intuitive menu structure allows for quick, simple setup and operation. A password can be programmed to prevent unauthorized changes. With a rugged and modular design, the test stand is a compelling solution for applications in laboratory and production environments.

The ESM301 travel distance is 11.5", while the extended length ESM301L features travel distance of 18". All other specifications are the same.

Dimensions:

Advanced Motorized Force Test Stands
Model	ESM301	ESM301L
Load capacity:	200 lb (1 kN) @ >24 in/min (610 mm/min)	300 lb (1.5 kN) @ up to 24 in/min (610 mm/min)
Maximum travel distance:	11.5 in (292 mm)	18 in (457 mm)
Speed range:	Standard: 0.5 - 13 in/min (13 - 330 mm/min) Optional: 0.02 - 45 in/min (0.5 - 1100 mm/min)
Speed setting accuracy:	?0.2%
Speed variation with load:	?0% (stepper motor driven)
Limit switch repeatability:	0.001 in (0.03 mm)
Travel accuracy:	?0.002 in (0.05 mm)
Travel repeatability:	0.001 in (0.02 mm)
Travel resolution:	0.001 in / 0.02 mm
Power:	Universal input 80-240 VAC, 50/60 Hz
Weight:	34 lb (15.4 kg)	39.5 lb (23.7 kg)
Warranty:	3 years (see individual statement for further details)
Certification:	CE mark
