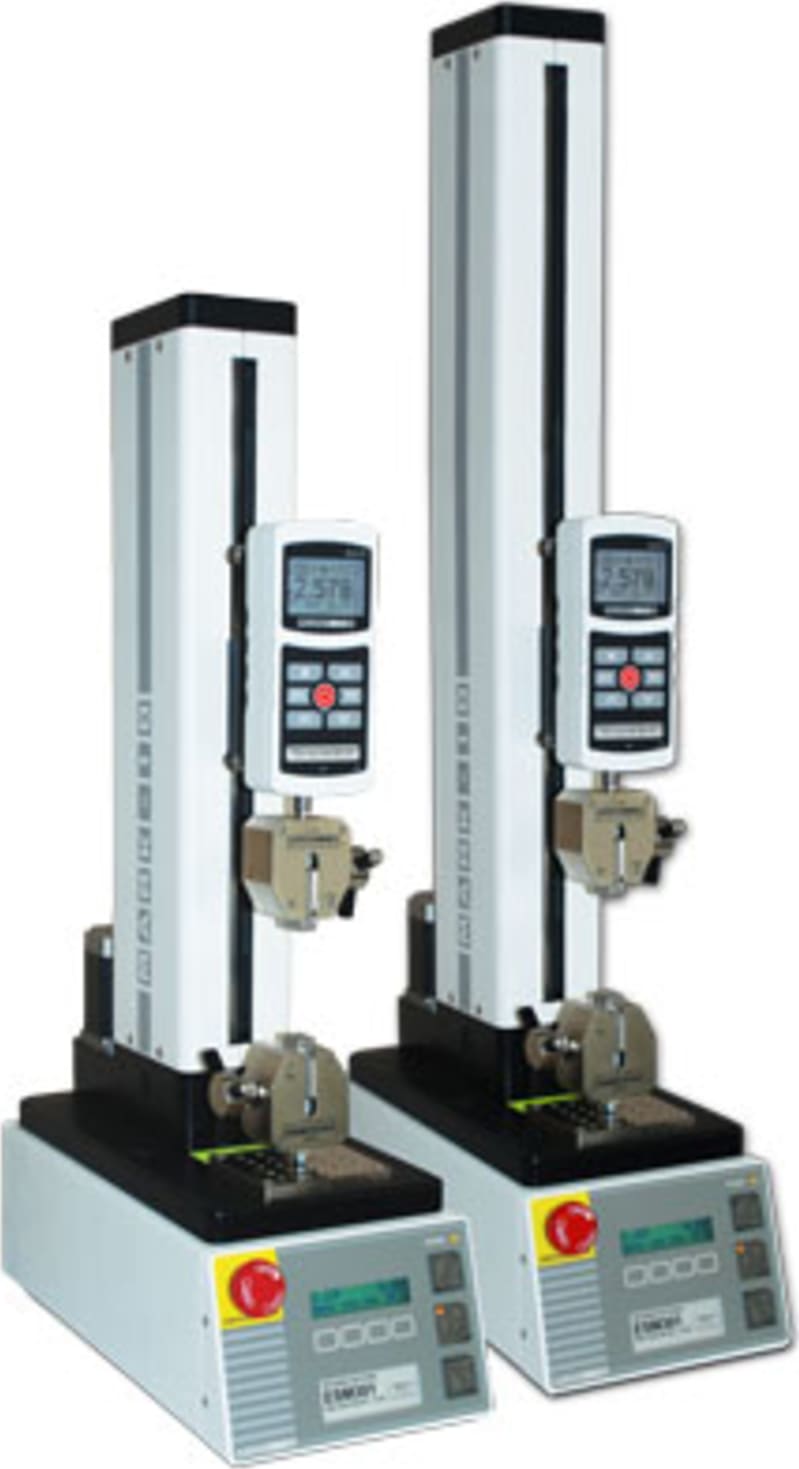

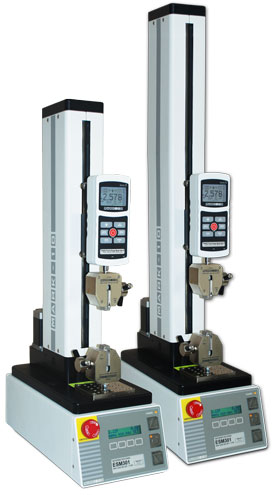

The ESM301 and extended length ESM301L are highly configurable motorized test stands for tension and compression testing applications up to 300 lbF (1.5 kN) for laboratory and production environments.

The stands can perform a wide range of tests, including break testing, cycling, limit testing to a load or distance, load holding, elongation testing, tensile testing, compression testing, and more. Satisfy various test methods through an easy-to-use menu, allowing the configuration of test speed, force and distance limits, cycling, preload, and many other functions. The stands can be controlled via its console or PC.

Functions are offered individually through a unique "build-your-own" configuration platform. Order any combination of functions to customize the stand to specific requirements. Functions not ordered originally can be activated in the field.

A password can be set to protect against unauthorized changes. Modular mechanical design allows the test frame and controller to be separated for various mounting configurations.

Hardware Options

• A wide range of force gauges and gripping fixtures
• Multi-function cables, gauge to controller (09-1162)- Connects Series 7, 5 and Series 4 force gauges to the controller. This single cable is used to transmit set points, overload signals, and force data.
• Serial cable, controller to PC (09-1056)- Sends force and travel data on a single cable via RS-232 to a PC.
• RS-232 to USB adapter (RSU100)
• Bench mounting kit (ESM301-003)- Consists of a set of mounting adapters, and four sets of hardware with Allen key to accommodate surfaces of various thickness. Recommended when ordering column extensions.
• Column extensions (ESM301-002-1, -2, -3)- A spacer is supplied between the base and the column, increasing clearance between the force gauge and base (does not increase travel distance). Available in 6" (150 mm), 12" (300 mm), and 24" (610 mm), and custom lengths. Bench mounting kit is recommended
• Frame-Controller connection cables (09-1137, -1, -2, -3)- Permit the removal of test frame from controller for alternative mounting configurations.
• Competitor force gauge mounting kits
• Eye End Adapters- Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges

Optional Functions

Travel indication(ESM301-001)
Travel is indicated on the front panel, and an RS-232 port is supplied. Position indication is provided via an internal linear scale, producing significantly higher accuracy than with conventional rotary encoder-based designs. Backlash and nonlinearity are virtually eliminated.

Computer control(EF010)
A bi-directional RS-232 port is provided to interface with a PC. Users can write a custom program utilizing a library of ASCII commands or control the stand via a PC using legacy Nexygen TCD software (not available from Mark-10).

Programmable travel limits(EF011)
The ESM301 can stop at or cycle between programmable upper and lower travel distances.

Overload protection(EF012)
Protects a force gauge against overload. Program the desired percentage of full scale of the gauge. Adjustable analog output voltage setting allows the ESM301 to interface with virtually any gauge with analog output.

Auto Return(EF013)
The crosshead moves to a limit switch, force set point, travel position, or break, then stops and reverses direction at full speed to the other limit.

Cycling / dwell time(EF014)
Same as auto-return, but with the ability to program up to 100,000 cycles. Programmable dwell time for upper and lower limits (set independently) can be set up for up to 10,000 seconds.

Independent Up and Down Speeds(EF016)
Configurable speeds for up and down directions.

Low Speed Extension(EF017)
Extends the speed range to 0.02 - 13 in/min (0.5 - 330 mm/min).

High Speed Extension(EF018)
Extends the speed range to 0.5 - 45 in/min (13 - 1100 mm/min).

Break Detection1(EF019)
Crosshead stops at a sudden drop in force. Programmable percentage of peak force.

Load Holding1(EF020)
Dynamically adjusts the crosshead position to maintain a programmed load for an indefinite or specified period of time.

Preload / Sample Touch(EF021)
Stops the crosshead and/or zeroes the travel display at an initial preload - useful in tensile, compression, spring, elongation, and other applications. Preload is programmable as a percentage of force gauge full scale. Three modes: (1) stop, (2) stop and zero, and (3) zero without stopping.
