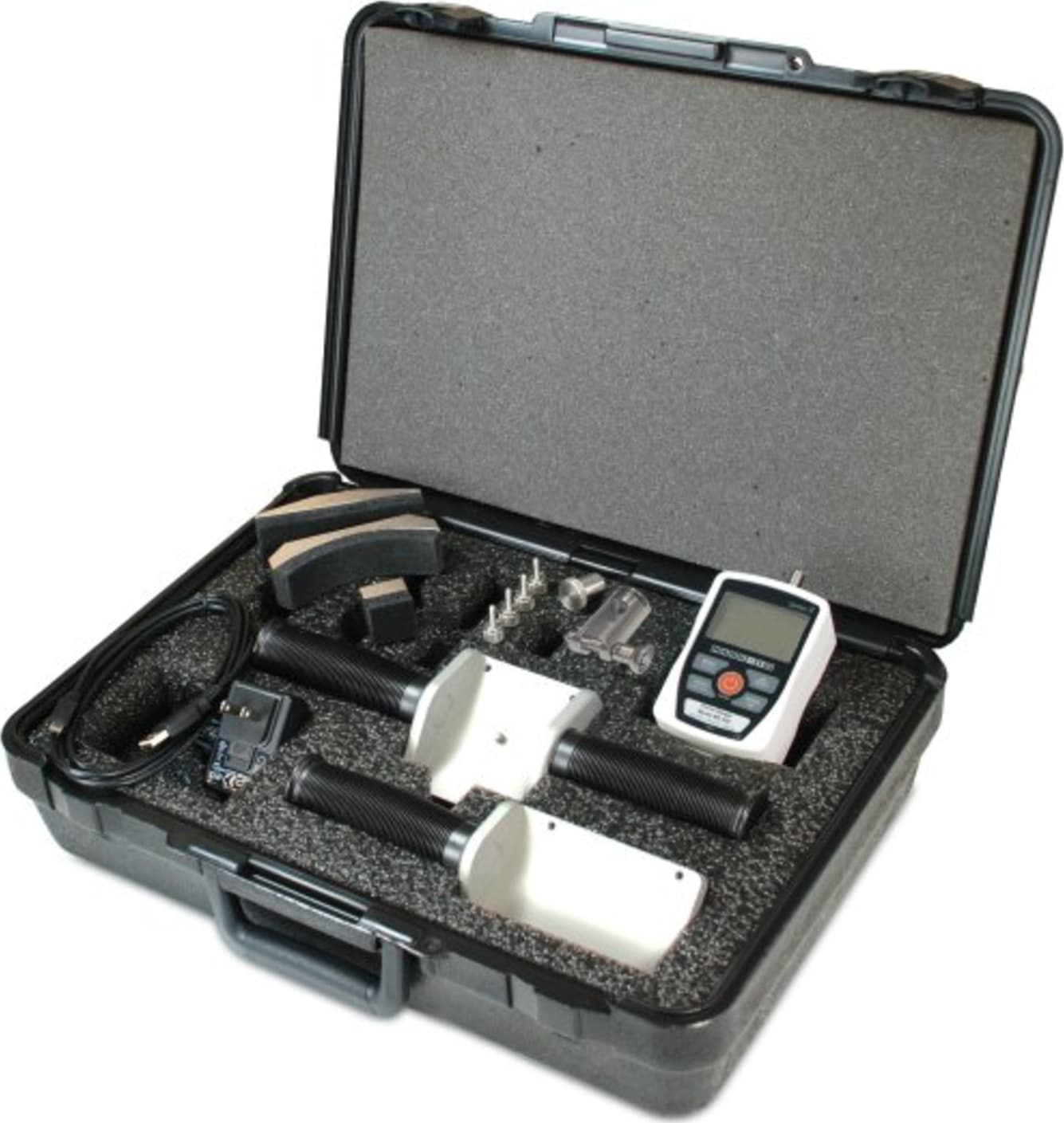

Mark-10 EK3-100 Basic Ergonomics Testing Kit with Series 3 Force Gauge, 100 lbF / 500 N

Name: Mark-10 EK3-100 Basic Ergonomics Testing Kit with Series 3 Force Gauge, 100 lbF / 500 N
Brand: Mark-10
SKU: Mark-10EK3-100
Price: 1083.00 USD
Availability: InStock

0 reviews | Model: Mark-10 EK3-100

Compare

Basic ergonomics testing kit w/Series 3 force gauge, 100 lbF / 500 N

100 lbF / 500 N, Basic Ergonomics Testing Kit with Series 3 Force Gauge
Digital force gauge Series 3
- ±0.3% accuracy
- USB output
- Compact design, easy to hold
- Measures in lbF, ozF, kgF, or N
- Peak force capture for push and pull forces
- Durable construction ensures longevity
- Battery or AC operation
MESUR™ Lite software
- Tabulates continuous or individual data points from the gauge. One-click export to Excel easily allows for further data manipulation.
USB Cable
- For data output to a PC
Double and Single-Handles
- Non-slip rubber handles for good grip and consistent test results.
Padded Attachments
- Flat, curved, and square padded attachments mount directly to the force gauge for conducting musculoskeletal strength analysis.
Clevis Grip
- Spring-loaded pin with ball plunger locks into place for added safety in pull tests.
Flat Attachment
- Round attachment for compression tests.

View Product Details

List Price: $1,140.00

Your Price: $1,083.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Mark-10 EK3-100 Basic ergonomics testing kit w/Series 3 force gauge, 100 lbF / 500 N	Mark-10 EK3-200 Basic ergonomics testing kit w/Series 3 force gauge, 200 lbF / 1000 N	Mark-10 EK3-500 Basic ergonomics testing kit w/Series 3 force gauge, 500 lbF / 2500 N
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Mark-10 EK3-100 Basic Ergonomics Testing Kit with Series 3 Force Gauge, 100 lbF / 500 N

Test push/pull strength and functional task requirements up to 500 lbF These kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution.

The kit includes a force gauge with data output, MESUR™ Lite data collection software, and a USB cable.

The kits are available in 100 lbF (500 N), 200 lbF (1,000 N), and 500 lbF (2,500 N) capacities.

Optional Equipment

MESUR™ gauge Software - tabulates and plots load vs. time, with additional test start and stop triggers and analysis tools. Also calculates statistics, generates reports, exports to Excel, and more.

Digital Force Gauges SERIES 3
Capacity & Resolution
Model	lbF	kgF	gF	N
M3-012	0.12 x 0.0001	-	50 x 0.05	0.5 x 0.0005
M3-025	0.25 x 0.0002	-	100 x 0.1	1 x 0.001
M3-05	0.5 x 0.0005	-	250 x 0.2	2.5 x 0.002
M3-2	2 x 0.002	1 x 0.001	-	10 x 0.01
M3-5	5 x 0.005	2.5 x 0.002	-	25 x 0.02
M3-10	10 x 0.01	5 x 0.005	-	50 x 0.05
M3-20	20 x 0.02	10 x 0.01	-	100 x 0.1
M3-50	50 x 0.05	25 x 0.02	-	250 x 0.2
M3-100	100 x 0.1	50 x 0.05	-	500 x 0.5
M3-200	200 x 0.2	100 x 0.1	-	1000 x 1
M3-500	500 x 0.5	250 x 0.2	-	2500 x 2
All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V), or 'A' for Australian plug (220V). Example: M3-20E, M3-100U, M3-500A
General Specifications
Accuracy	±0.3% of full scale
Sampling rate	2,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units	lbF, gF, kgF, N (depending on model)
USB Output	Configurable to 115,200 baud.
Safe overload	150% of full scale (display shows “OVER” at 110% and above)
Weight	M3-012 - M3-100: 0.7 lb [0.33 kg] M3-200 - M3-500: 0.9 lb [0.41 kg]
Included items	Carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™ gauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge)
Warranty	3 years (see individual statement for further details)

Tech Specs

Test Equipment General Attributes
Country of Origin	United States
