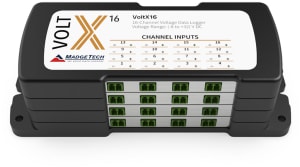

Madgetech VoltX Series DC Voltage Data Logger

16-channel, DC voltage data logger w/ 32V range

• Real-time Operation
• Programmable Engineering Units
• 24-bit Readings Provide High Resolution

The new VoltX Series consists of 4, 8, 12 and 16-channel, battery powered, DC voltage data logger with a reading rate of up to 4 Hz. Improvements include the elimination of an interface cable (uses standard USB-A to Micro USB), increased memory for more readings and increased download speed.

This easy-to-use device features an 18 month typical battery life, user replaceable battery and programmable engineering units. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title.

Using the MadgeTech Software, starting, stopping and downloading from the VoltX Series data loggers are simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.

MadgeTech 4 Software Features

Graph View

• Multiple graph overlay
• Statistics
• Digital calibration
• Zoom in/ zoom out
• Lethality equations (F0, PU)

• Mean Kinetic Temperature
• Full time zone support
• Data annotation
• Min./Max./Average lines
• Summary view

Cooling Flags

Export to Excel

Tabular Data View

Automation
