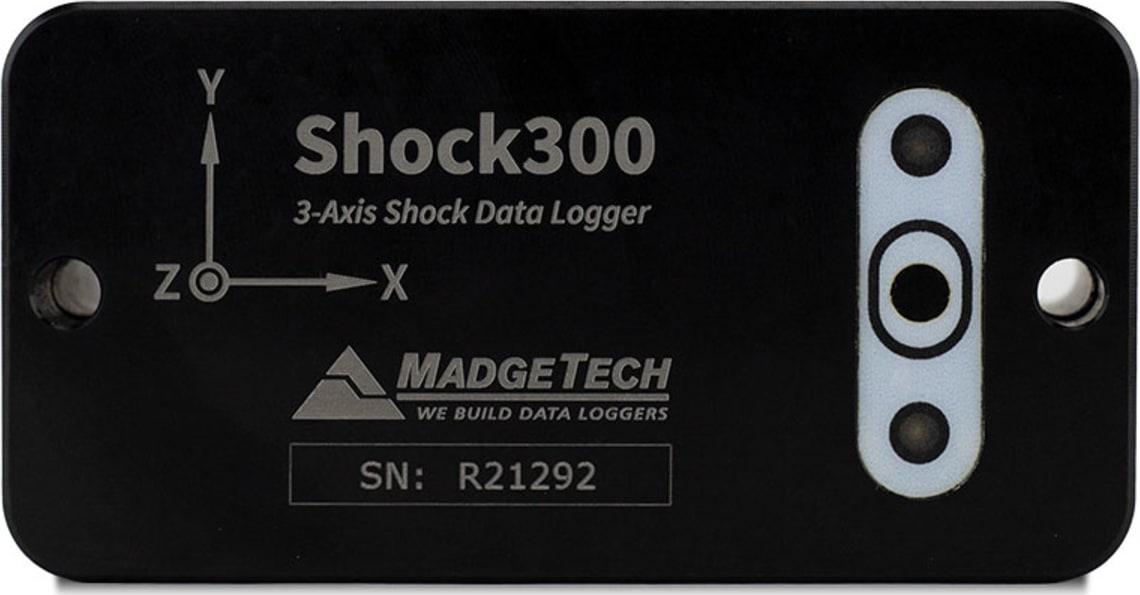

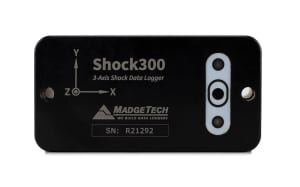

Madgetech Shock300 Tri-Axial Shock Data Logger with Three Built-In Acceleration Ranges

The Shock300 is a battery powered, stand alone 3-axis shock data logger. The Shock300 is specifically designed for documenting dynamic environments such as moving vehicles, trucks, containers, ships, etc. The device is also valuable in characterizing environments such as production and assembly lines of delicate electronics, IC fabrication, communications and computer components. This compact, portable, easy to use device will measure and record up to 4,192,254 measurements. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The Shock300 makes data retrieval quick and easy. Simply plug it into an empty USB port and our user- friendly software does the rest.

The Shock300 provides simple ordering as one model which provides three acceleration ranges. The ranges are implemented on separate low-g and high-g accelerometers for excellent resolution and accuracy.

• Electrical Protection Concepts: ISO/IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
• Equipment Protection Level: Ga – Gc, Zones 0-2
• Gas Group: IIC
• Temperature Class: T4

Applications

• Complete environmental shipment monitoring
• Shipping live cargo
• Aircraft turbulence measurement
• Endurance testing
• Assembly line monitoring
• Brake testing
• Laboratory drop testing
• Machinery monitoring
• Railcar coupling impacts

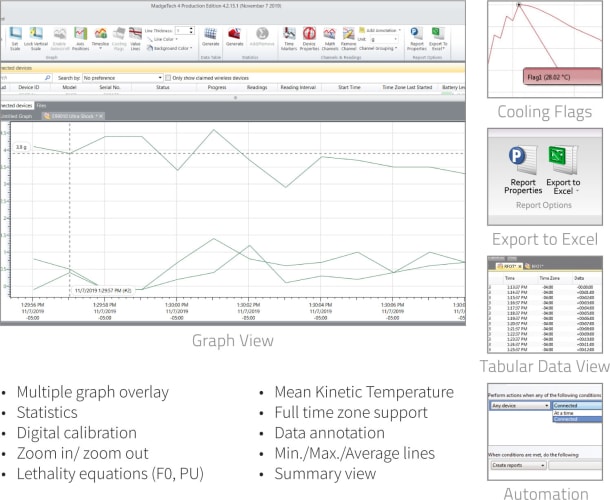

MadgeTech 4 Software Features
