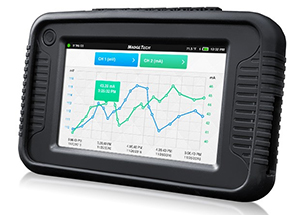

MadgeTech 902019-00 Portable Data Acquisition Logger

Name: MadgeTech 902019-00 Portable Data Acquisition Logger
Brand: MadgeTech
SKU: MADGETECH902024-00
Price: 999.00 USD
Availability: InStock

0 reviews | Catalog: 902024-00 | Model: MadgeTech 902024-00

Images (6) | Videos (1)

Compare

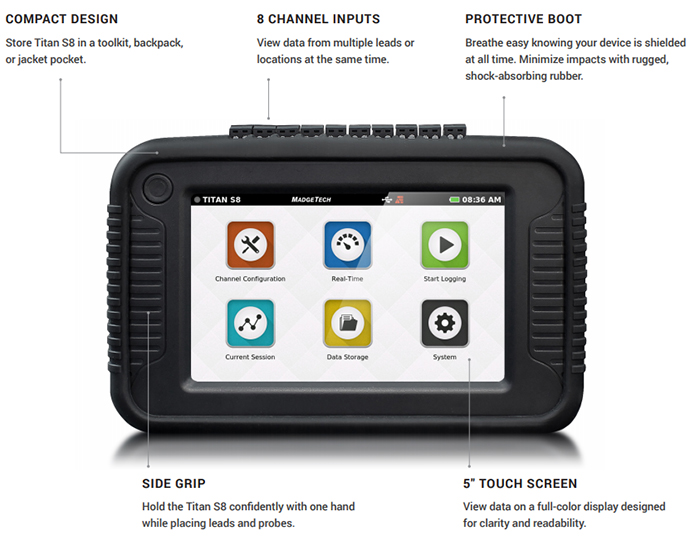

8 Channel, Portable Data Acquisition Logger with 5 inch Touch Screen

Compact design
8 channel inputs
Protective boot
Side grip
5" touch screen

View Product Details

Your Price: $999.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Madgetech 8 Ch, Portable Data Acquisition Logger
with 5" Touch Screen

Titan S8

The entire Titan S8 device is handheld, meaning powerful data measurement, equipment validation and process monitoring can travel wherever they are needed inside or outside of any facility. Titan S8 is a powerful and flexible as you need it to be at any time, for any application

The MadgeTech Titan S8 is a portable, multi-use industrial data logger with eight probe channels and a user-friendly touchscreen interface. This versatile logger supports thermocouple, RTD or thermistor probes to measure current, voltage, temperature and pulse in real time. This adaptability and power make Titan S8 the perfect companion for any industrial engineer, quality assurance professional, compliance officer or automotive technician.

Part of the Titan S8’s might comes from its independence. Unlike many data loggers, the Titan is a complete, all-in-one solution that does not require a PC or any downloaded software for operation. This means the device is truly ready for use at a second’s notice and will never leave users waiting because of upload times or a frustrating software interface.

Versatility

Perfect for those with a variety of responsibilities or validation tasks, the handheld Titan S8 provides dynamic, customizable solutions including programmable channel configurations, user-configurable engineering units and alarms for benchmark or undesirable readings. Any user-created settings can be stored within the logger, saving time and eliminating the need for constant reprogramming.

	HVAC Performance Room / Ambient Temperature Duct Temperature Air Flow & Pressure		Energy Audits Current/Voltage Fluctuations Energy Consumption Machine Run Time
	Automotive Safety Engineering Heat & Energy Transfer Material Processes Electrical Systems Analysis		Electornic Manufacturing Production Equipment Monitoring Temperature Stability Voltage & Current Troubleshooting
	Plant/Factory Performance Diagnose Power Issues Electrical Infrastructure Monitoring Optimize Performance		Laboratory & Life Sciences Equipment Validation Temperature Mapping Process Verification
	Industrial Equipment Repair Thermal & Electrical Diagnostics Verify Successful Repair Routine Maintainence		Food Safety Oven Mapping Process Monitoring HACCP Compliance

Technology

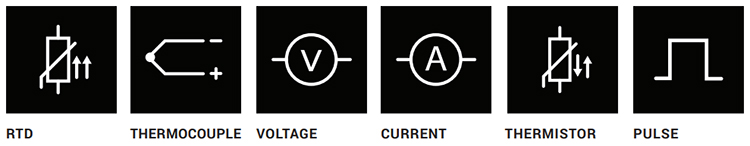

The unprecedented data acquisition power of the Titan S8 comes from its incredible versatility. This single device is compatible with a variety of the most commonly used probe types and can be configured to measure a wide range of key factors.

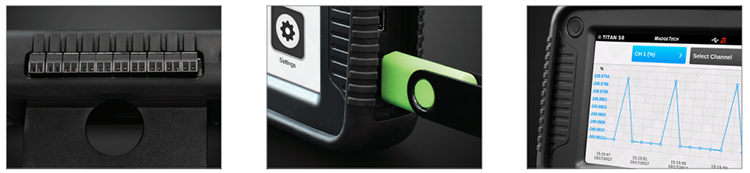

8 Inputs Channels Manage a variety of incoming data to study energy transfer and machine performance.	USB Data Download Extract data instantaneously for upload and analysis.	1GB Internal Memory Store up to 5,000,000 readings.

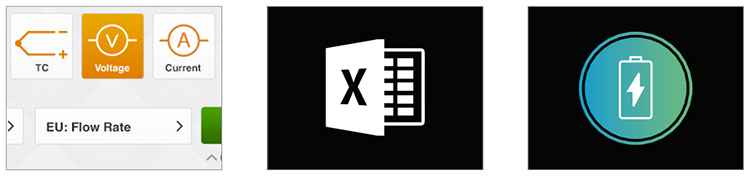

Enguneering Units Program Titan S8 to accept any units of measure.	No Required Software Analyze data in Microsoft Excel without the need for additional software.	Rechargeable Battery Rechargeable lithium ion battery designed to provide longer lasting power per charge.

Sensor

General Specifications
Dimensions	6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x 35.8 mm) Data logger only
Touch Screen Dimensions	5 inches
Number of Channels	8
Weight	1.3 lbs (20.8 oz)
IP Rating	IP20
Start Modes	Immediate Start & Delay Start
Memory	1,000,000 or 5,000,000 readings
Battery Type	Rechargeable 3.7 V Lithium Ion Battery Pack
Battery Life	Continuous on-screen sampling: 7–9 hours depending on display setting and reading rate Stand-by mode: 100 hours
Data Format	Exported .csv file format, .mtb or both
Time Accuracy	±1 minute/month
Operating Environment	0 °C to +50 °C (32 °F to +122 °F) 0 %RH to 95 %RH non-condensing
Enclosure Material	Polycarbonate, TPE Protective Boot
Calibration	Factory calibration is recommended annually
0 - 24 mA
Range	-5 mA to 50 mA
Resolution	0.0001 mA
Accuracy	±0.024 mA (0 to 24 mA)
Input Impedance	30 Ω
0 - 100 mV
Range	-100 mV to 2450 mV
Resolution	0.0001 mV
Accuracy	±0.1 mV (0 to 100 mV)
Input Impedance	1 GΩ
Maximum Voltage	3.0 V
0 - 10 V
Range	-0.5 V to 12.0 V
Resolution	0.0001 V
Accuracy	± 0.01 V (-0.5 V to 12.0 V)
Input Impedance	1 GΩ
Maximum Voltage	25 V
FREQUENCY / PULSE
Maximum Count	4,000,000,000
Maximum Frequency	25 KHz
Input Signal	0 V to 12 V
Input Impedance	58 KΩ
TEMPERATURE PT-100 (2-WIRE RTD) (0.00385 CURVE)
Range	-25 °C to +850 °C (Probe Dependent) (18.5 Ω to 390.5 Ω)
Resolution	0.01 °C
Accuracy	±0.1 °C (-200 °C to +400 °C) (Probe Dependent) ±0.034 Ω (18.5 Ω to 247.1 Ω
TEMPERATURE PT-100 (3-WIRE RTD) (0.00385 CURVE)
Range	-25 °C to +850 °C (Probe Dependent) (18.5 Ω to 390.5 Ω)
Resolution	0.01 °C
Accuracy	±0.1 °C (-200 °C to +400 °C) (Probe Dependent) ±0.034 Ω (18.5 Ω to 247.1 Ω)
TEMPERATURE PT-100 (4-WIRE RTD) (0.00385 CURVE)
Range	-25 °C to +850 °C (Probe Dependent) (18.5 Ω to 390.5 Ω)
Resolution	0.01 °C
Accuracy	±0.1 °C (-200 °C to +400 °C) (Probe Dependent) ±0.034 Ω (18.5 Ω to 247.1 Ω)
TEMPERATURE NTC-1 (2252)
Range	-25 °C to +150 °C (Probe Dependent) (29,380 Ω to 41.9 Ω)
Resolution	0.01 °C
Accuracy	±0.50% FSR (Probe Dependent)
TEMPERATURE NTC-2 (10K)
Range	-25 °C to +150 °C (Probe Dependent) (102,900 Ω to 238 Ω)
Resolution	0.01 °C
Accuracy	±0.50% FSR (Probe Dependent)
RTD Note (All RTD Configurations) Temperature Specifications based on ideal 100 Ω PT RTD Complaint with IEC 751(1983) and ITS-90. Accuracy based on 4-wire configuration.

Tech Specs

Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ
Type	RTD
Max Temperature	122 F (50 C)
Min Temperature	32 F
Power Source	Battery
Battery Life	100 HR
Input Source	External Probe
# Inputs/Channels	8
LCD Screen	Yes
Test Equipment General Attributes
IP Rating	IP20
Product Weight	1.3 LBS
Data Logging	Yes
HTS/Schedule B Number	9025.80.5000
ECCN Number	3A992.A
Battery Type	Li-ion
Country of Origin	United States
