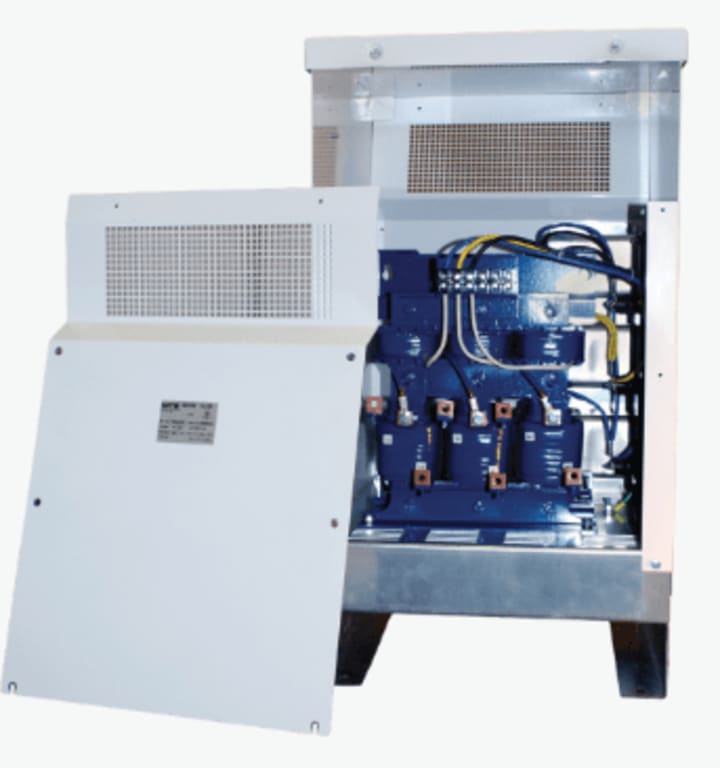

MTE Matrix AP - Harmonic Filter (380-415VAC / 50Hz)

0 reviews | Model: MTE Matrix AP 380-415 50Hz

Items in This Series



Product	MTE Matrix AP 380-415 50Hz Harmonic Filter (380-415VAC / 50Hz)	MTE Matrix AP 480VAC MTE Matrix AP Harmonic Filter (480VAC / 60Hz)	MTE Matrix AP 600VAC MTE Matrix AP Harmonic Filter (600VAC)	MTE Matrix AP 208-240VAC Harmonic Filter (208-240VAC / 60Hz)	MTE Matrix AP 480VAC Opt 002 MTE Matrix AP Harmonic Filter (480VAC) with Contactor for Cap ...	MTE Matrix AP 208-240VAC Opt2 Harmonic Filter (208-240VAC) with Contactor for Capacitor Di ...	MTE Matrix AP 380-415 50Hz Opt2 Harmonic Filter (380-415VAC) with Contactor for Capacitor ...	MTE Matrix AP 600VAC Opt 002 MTE Matrix AP Harmonic Filter (600VAC) with Contactor for Cap ...	MTE Matrix AP 480VAC Opt 012 MTE Matrix AP Harmonic Filter (480VAC) with Contactor with Co ...	MTE Matrix AP 600VAC Opt 012 MTE Matrix AP Harmonic Filter (600VAC) with Contactor with Co ...	MTE Matrix AP 480VAC Opt 009 MTE Matrix AP Harmonic Filter (480VAC) with Contactor with Ad ...	MTE Matrix AP 480VAC Opt 013 MTE Matrix AP Harmonic Filter (480VAC) with Filter bypass wit ...	MTE Matrix AP 690VAC 50Hz MTE Matrix AP Harmonic Filter (690VAC / 50Hz)
Price	Configurable	Configurable	Configurable	Configurable	Configurable	Configurable	Configurable	Configurable	Configurable	Configurable	Configurable	Configurable	Configurable
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

MTE Matrix AP

Input Voltage: 380 - 415V +/- 10%; 50 Hz; 3-phase
Load: 6-pulse rectifier only
Maximum THID: 8% @ 30% load; 5% @ full load
Efficiency: 97% - 99%
Three-year warranty

Harmonic Filter (380-415VAC / 50Hz)

Most traditional filters work fine at 100% power load, but severely underperform at lower loads. The Matrix AP’s patented Adaptive Passive Technology virtually eliminates harmonic distortion by adapting to varying power loads. It delivers better THID performance, increases energy efficiency, and allows you to meet IEEE-519 requirements.

The Matrix AP’s unique design generates less heat and is easy to install and maintain. Plus, it is generator compatible. With Matrix AP Harmonic Filters, power quality, energy efficiency and reduced downtime are easy to achieve. Matrix AP Harmonic Filters can be specified for use on the input of your VFD or other 6-pulse rectifier power supply to enable your system to meet the IEEE-519 requirements for harmonic distortion, regardless of power load.

Features patented Adaptive Passive Technology for superior harmonic mitigation and better THID performance over a wider load range.

Extends service life of electrical equipment, especially transformers and motors, due to the virtual elimination of CEMF and the skin effect.

Alleviates system downtime by preventing blown fuses and tripped circuit breakers.
