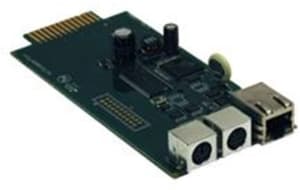

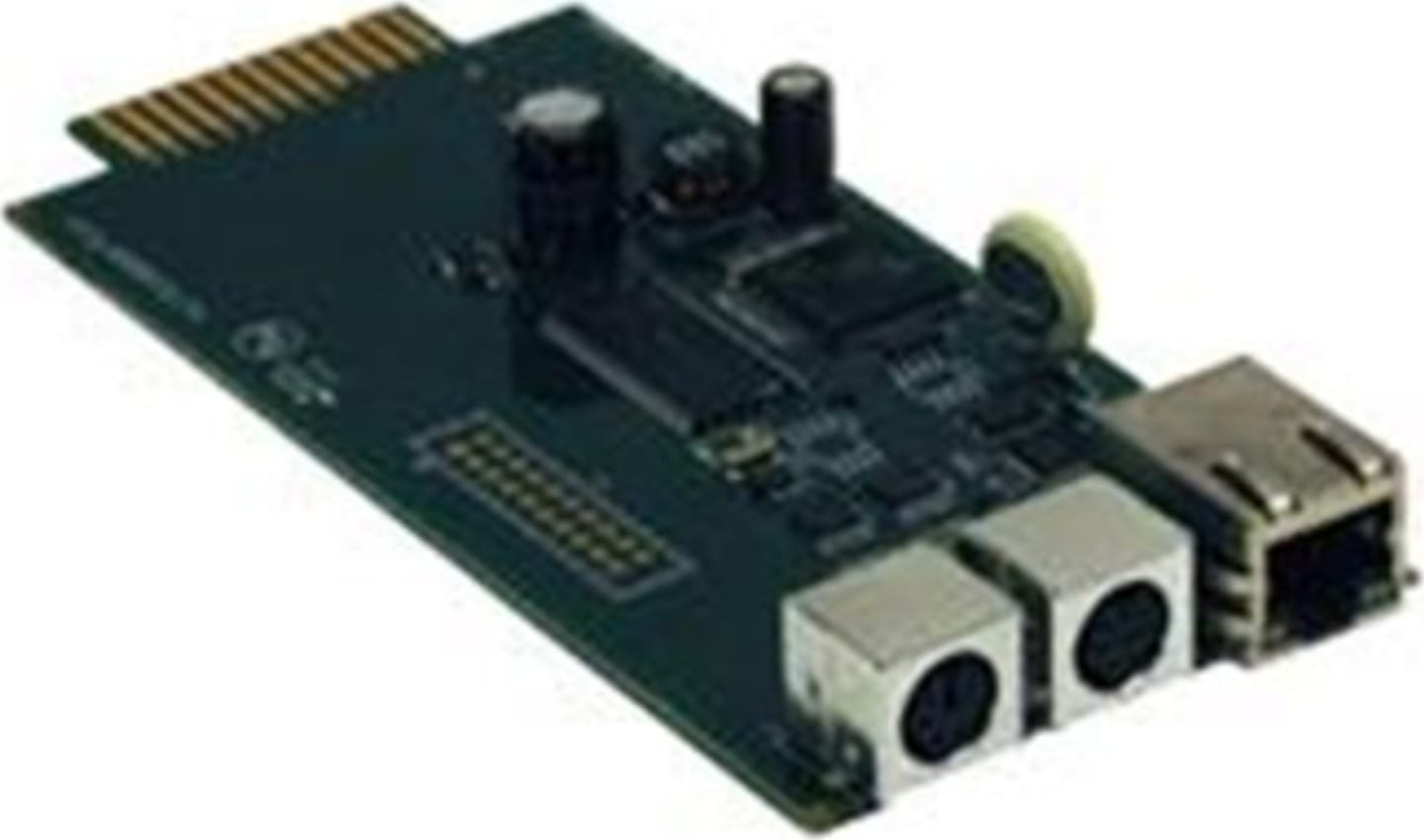

• SNMPWEBCARD web card for remote power/UPS monitoring
• Supports SNMPv3including SNMPv3 traps
• RADIUS Support (FreeRADIUSTekRADIUS)
• Supports IPv6
• Graphical User Interface supports Java 1.6 and 1.7
• Supports multiple user support
• Makes any slot-equipped Tripp Lite UPS a managed device on the network, controllable using SNMP network management platforms or a web browser
• Web interface provides remote viewing of current site electrical data, UPS self-test and alert logs, as well as logged power events such as blackouts, brownouts, overvoltages, and other electrical problems
• Offers the ability to control UPS output power and remote reboot of locked network devices without interrupting power to other loads when used with any Tripp Lite UPS equipped with load management receptacles
• DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses
• 10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network
• Real-time clock support maintains the time of day and date even if the UPS is shut down
• NTP (Network Time Protocol) support gives the card the ability to receive automatic updates to its real-time clock from a NTP server
• 2-tier level access allows an administrator and a guest to log into the web browser for monitoring and/or management of slot-equipped Tripp Lite UPS systems
• Multiple user support allows for viewing by a number of users at the same time
• Full Telnet access gives you the ability to remotley monitor and manage your UPS system via a TELNET session
• Optional SSL (Secure Socket Layer) security setting provides the capability to create an encrypted connection to the card via a web browser
• Offers the ability to shut down remote operating systems through your networks. (Supported operating systems must have Power Alert 12 installed)
• Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification sent to them as a result of a site electrical or UPS problem
• Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP
• RoHS Complaint
• 2-year product warranty

Applications

• Ideal for management & control of UPS and power data
