Liberty RG8-CMR-BLK Non-Plenum Cable

Name: Liberty RG8-CMR-BLK Non-Plenum Cable
Brand: Liberty
SKU: LibertyRG8-CMR-BLK
Price: 1999.84 USD
Availability: InStock

0 reviews | UPC: 601446005958 | Model: Liberty RG8-CMR-BLK

Compare

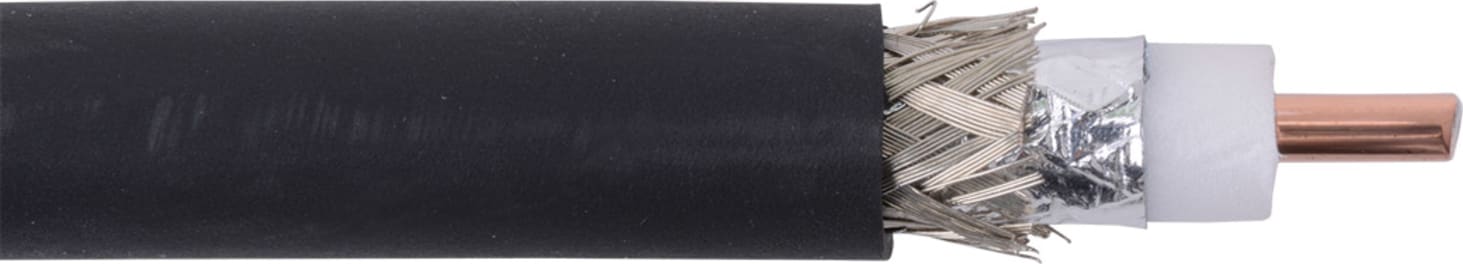

Black Microwave and Wireless RF400 RG8 Solid Dual Shield Cable

Cannot Ship Air

True RF-400 sized wireless broadcast cable
10 AWG solid copper clad aluminum conductor
Gas-injected cellular polyethylene dielectric
Dual shield 100% foil and 95% tinned copper braid
Flame rated PVC jacket
6.0 GHz sweep, very low loss, excellent VSWR
NEC CMR, CEC CMR FT4, sunlight resistant, RoHS compliant
1000 foot spools

View Product Details

Sign-in for EDU Pricing!

In Stock:

View Payment Options

List Price: $2,222.04

See Price

Request Quote

Recommended for you

Liberty RG8-CMR-BLK Accessories

Choose a Category

Accessories
Adapter Kits

for the Liberty RG8-CMR-BLK

Liberty 112563 BNC Crimp Plug for RG8 non-plenum solid cable

Catalog: 112563

(0)

In Stock!

Add to Cart

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

10 AWG solid core bare copper dual shielded RG8 coaxial cable. NEC type CMR and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820.

Applications:

Antenna pigtails, inventory control systems
Satellite radio cabling, Microwave signals
Wireless communications, instrumentation
Ham radio, CB radio, Cellular nodes

Conductor	10 AWG Solid copper clad aluminum conductors Diameter: 0.108" \| 2.74mm
Insulation	Foam polyethylene Wall thickness: 0.088" \| 2.25mm Diameter: 0.285" \| 7.24mm
Color Code	Natural
Shield	100% bonded aluminum/poly/aluminum 90% 24x9/34 AWG tinned copper braid shield
Jacket	UV stabilized polyvinyl chloride Colors: Black Wall thickness: 0.045" \| 1.14mm Diameter: 0.405" \| 10.29mm
Electrical	DC resistance: 1.39 Ω / 1000’ \| 4.56 Ω/KM Shield DCR: 1.65 Ω / 1000’ \| 5.41 Ω/KM Mutual capacitance: 23.5 pF/FT \| 77.1 pF/M Impedance: 50 ± 3 Ω Velocity of Propagation: 85% Voltage rating: 300V Cutoff frequency: 16.2 GHz
Regulatory	NEC: CMR 75°C CEC: CMG FT4 60°C Sunlight resistant EU RoHS 2002/95/EC Compliant
Packages	Reel: 1000’ \| 305M Weight: 83 Lbs/1000’ \| 124 Kg/KM
Installation	Pull Tension: 160 Lbs \| 712 N Bend radius: 4.05" \| 103mm unloaded Bend radius: 8.10" \| 206mm loaded
Applications	Riser Wireless Broadcast systems for RF400 sized cables Riser Antenna pigtails, Inventory control systems Riser Microwave, wireless microphones
Performance	16KW maximum power
Final Outside Diameter (inches)	0.405

Tech Specs

Test Equipment General Attributes
Unique Features	True RF-400 sized wireless broadcast cable 10 AWG solid copper clad aluminum conductor Gas-injected cellular polyethylene dielectric Dual shield 100% foil and 95% tinned copper braid Flame rated PVC jacket 6.0 GHz sweep, very low loss, excellent VSWR NEC CMR, CEC CMR FT4, sunlight resistant, RoHS compliant
Safety Approval	RoHS Safety Approval NEC CMR, CEC CMR FT4
Country of Origin	United States
