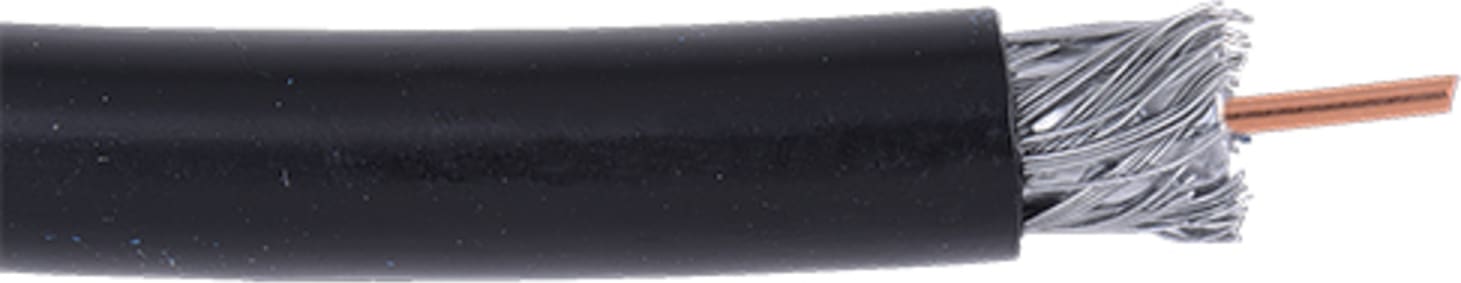

Liberty RG6-BC-CATV-DB - Black RG6 Bare Copper Cable Swept to 3.0 GHz Reel

Name: Liberty RG6-BC-CATV-DB - Black RG6 Bare Copper Cable Swept to 3.0 GHz Reel
Brand: Liberty
SKU: LibertyRG6-BC-CATV-DB
Price: 343.75 USD
Availability: InStock

0 reviews | UPC: 601446153437 | Model: Liberty RG6-BC-CATV-DB

Compare

Black RG6 Bare Copper Dual Shielded Coaxial Outside Plant Cable Swept to 3.0 GHz

18 AWG solid annealed bare copper conductor
Gas-injected cellular polyethylene dielectric
Dual shield foil + 60% aluminum + Floodant compound
Polyethylene jacket
3.0 GHz sweep for all CATV through DBS needs
Direct burial, sunlight resistant, RoHS compliant
1000 foot spools

View Product Details

Sign-in for EDU Pricing!

In Stock:

View Payment Options

List Price: $381.94

See Price

Request Quote

Recommended for you

Liberty RG6-BC-CATV-DB

Outside plant, direct burial
CATV/MATV and direct broadcast satellite (DBS)
Cable modem, DC pass circuits
High frequency RF modulated signals

Black RG6 Bare Copper Cable Swept to 3.0 GHz Reel

18 AWG solid core bare copper dual shielded RG6 CATV/DBS coaxial cable Sunlight resistant and suitable for direct burial. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820.

General Specifications
Conductor	18 AWG Solid annealed bare copper conductors Diameter: 0.040" \| 1.02mm
Electrical	DC resistance: 6.51 Ω / 1000’ \| 21.35 Ω/KM Shield DCR: 9.70 Ω / 1000’ \| 31.80 Ω/KM Mutual capacitance: 16.2 pF/FT \| 53.1 pF/M Impedance: 75 ± 3 Ω Velocity of Propagation: 82% Voltage rating: 300V SRL 5-2200 MHz: -20dB SRL 2.2-3 GHz: -17dB
Insulation	Foam polyethylene Wall thickness: 0.070" \| 1.78mm Diameter: 0.180" \| 4.57mm
Regulatory	Suitable for direct burial Sunlight resistant EU RoHS-2 2011/65/EU Compliant
Color Code	Natural
Packages	Reel: 1000’ \| 305M Weight: 25 Lbs/1000’ \| 38 Kg/KM
Assembly	N/A
Installation	Pull Tension: 68 Lbs \| 302 N Bend radius: 2.72" \| 70mm unloaded Bend radius: 5.44" \| 140mm loaded
Construct	Braid interstices flooded with water repellant silicone compound
Applications	Outside plant CATV and DBS modulated video Outside plant CATV and DBS where DC is required Outside plant Broadband video and cable modem
Shield	100% bonded aluminum/poly/aluminum 60% 16x4/34 AWG aluminum braid shield
Performance	CATV to 237 feet DBS to 158 feet
Jacket	Polyethylene Colors: Black Wall thickness: 0.030" \| 0.76mm Diameter:0.272" \| 6.91mm
Final Outside Diameter (inches)	0.272
