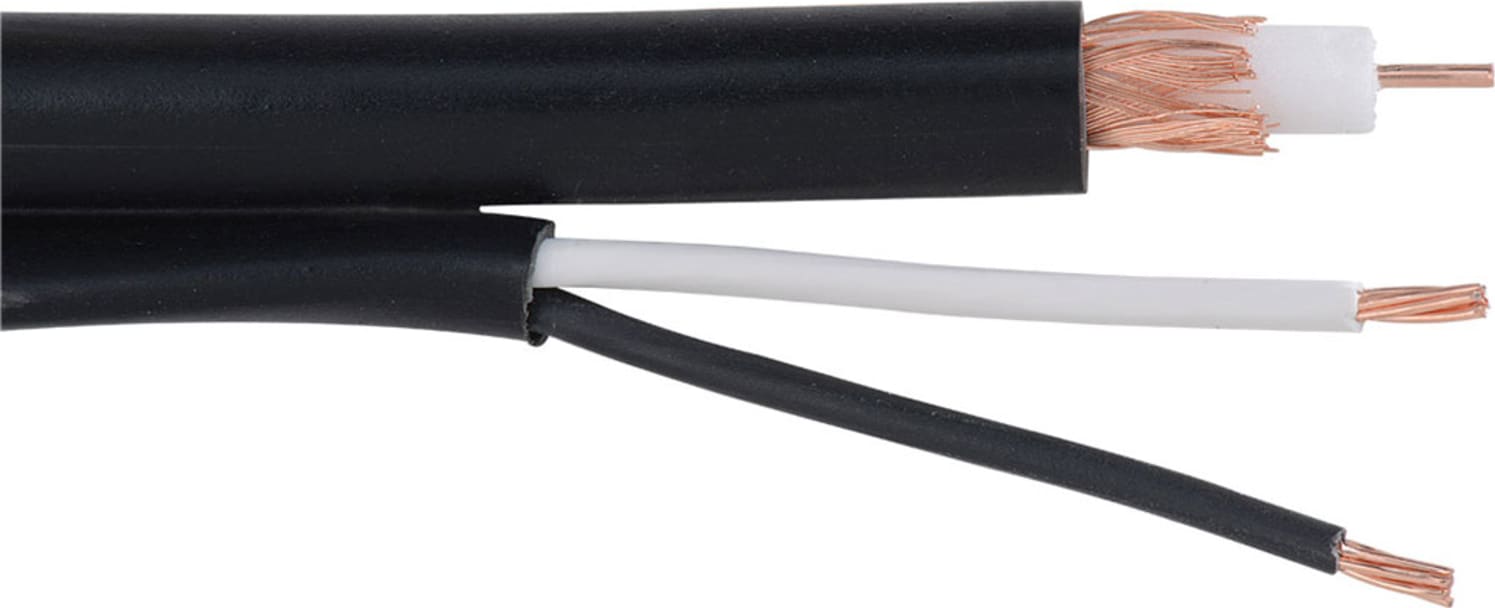

Liberty RG59CM-18-2C-500 Black Baseband with PTZ Video RG59 Non-plenum Coaxial Cable

Name: Liberty RG59CM-18-2C-500 Black Baseband with PTZ Video RG59 Non-plenum Coaxial Cable
Brand: Liberty
SKU: LibertyRG59CM-18-2C-500
Price: 588.60 USD
Availability: InStock

0 reviews | Model: Liberty RG59CM-18-2C-500

Compare

Black Baseband with PTZ Video RG59 Plenum Coaxial Cable

Cannot Ship Air

Black Baseband with PTZ video RG59 non-plenum coaxial cable
Made in USA
Siamese (SPT) or ZIP construction
RG59 20 AWG solid bare copper single shield video cable
Jacketed twisted, unshielded 18/2 stranded power pair
Both components joined by a web for easy separation
NEC CM, CEC CMG FT4, RoHS compliant

Applications

Security analog base band video, composite Video
Pan-tilt-zoom camera support and power

View Product Details

List Price: $654.00

In Stock:

View Payment Options

Recommended for you

Liberty RG59CM-18-2C-500 Black Baseband with PTZ Video RG59 Non-plenum Coaxial Cable

Composite cable 1 pair 18 AWG stranded, twisted and unshielded power pair with a 20 AWG RG59 CCTV coaxial cable in parallel and jacketed NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

General Specifications
Component 1:	RG59 coaxial cable 20 AWG solid annealed bare copper conductor Foamed polyethylene dielectric Wall thickness: 0.056" \| 1.42mm Diameter: 0.140" \| 3.56mm 95% 16x9/36 AWG bare copper braid shield Polyvinyl chloride jacket Thickness: 0.034" \| 0.86mm Diameter: 0.212" \| 5.38mm
Component 2:	18 AWG 2 conductor power cable 7-strand annealed bare copper conductors Semi rigid polyvinyl chloride insulation Wall thickness: 0.018" \| 0.457mm Diameter: 0.084" \| 2.14mm Polyvinyl chloride jacket Thickness: 0.014" \| 0.35mm Diameter: 0.160" \| 4.06mm
Color Code	18 AWG: Black, White
Assembly	A jacketed coaxial cable and a jacketed 18/2 power cable ran in parallel and joined by a web
Construct	N/A
Shield	See individual component descriptions
Jacket	Polyvinyl chloride Colors: Black Coax: Wall thickness: 0.014" \| 0.35mm Diameter: 0.212x0.380" \| 5.38x9.65mm
Electrical	DC resistance: 10.3 Ω / 1000' \| 33.9 Ω/KM Shield DCR: 2.70 Ω / 1000' \| 8.86 Ω/KM Mutual capacitance: 16.2 pF/FT \| 53.1 pF/M Impedance: 75 ± 3 Ω Velocity of Propagation: 84% Voltage rating: 300V SRL 5-300 MHz: -20dB 18 AWG DCR: 5.94 Ω / 1000' \| 19.48 Ω/KM Maximum current: 3.75A@25˚C
Regulatory	NEC: CM 75˚C CEC: CM 60˚C EU RoHS 2002/95/EC Compliant
Packages	Reel: 1000' \| 305M Weight: 46 Lbs/1000' \| 69 Kg/KM
Installation	Pull Tension: 66 Lbs \| 132 N Bend radius: 2.12" \| 54mm unloaded Bend radius: 4.24" \| 108mm loaded
Applications	General purpose security video and control General purpose Pan-Tilt-Zoom infrastructure cable
Performance	CCTV to 493 feet
Final Outside Diameter (inches)	.212x.380
