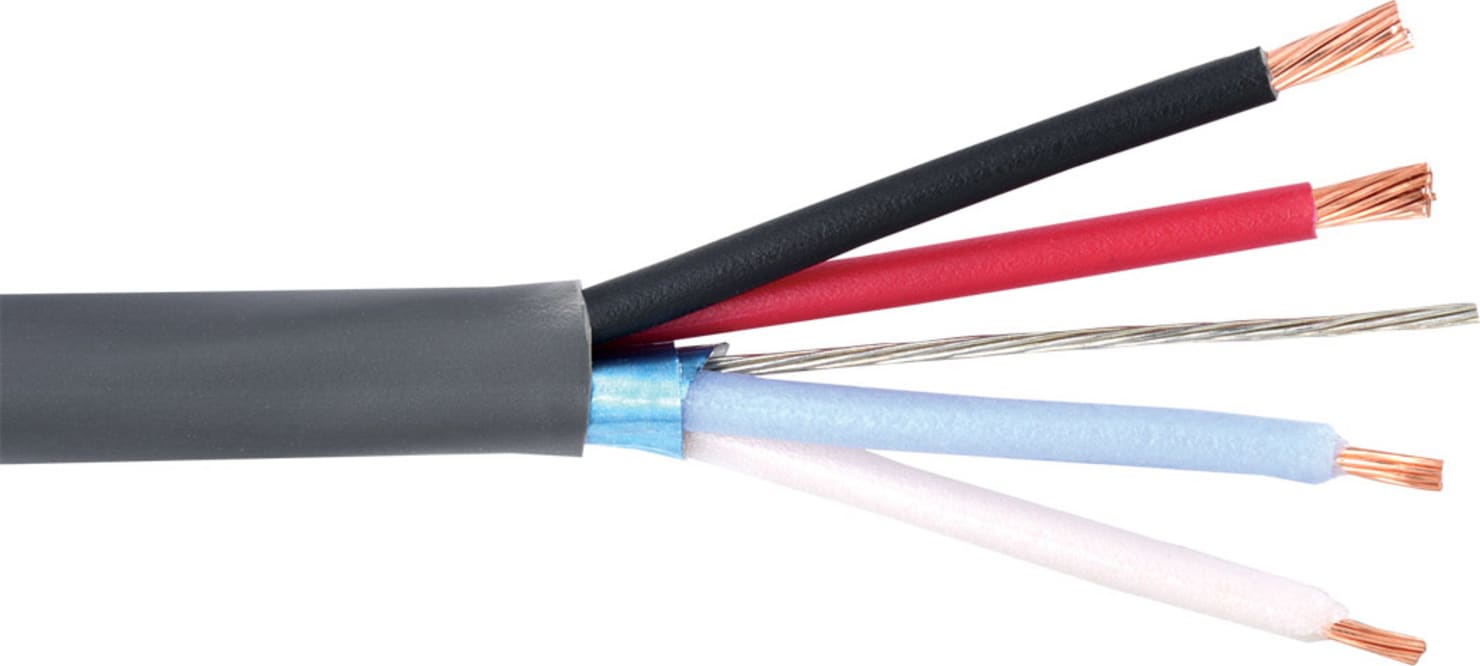

Liberty LLINX-D - Grey OEM Systems for Crestron LLINX 5e Composite Cable Reel

Name: Liberty LLINX-D - Grey OEM Systems for Crestron LLINX 5e Composite Cable Reel
Brand: Liberty
SKU: LibertyLLINX-D
Price: 1071.00 USD
Availability: InStock

0 reviews | UPC: 601446151891 | Model: Liberty LLINX-D

Compare

Grey OEM systems for Crestron LLINX-U and 2 U/UTP Category 5e composite cable

Cannot Ship Air

Data pair: 22 AWG 7-strand tinned copper conductors
Data pair: foamed FEP insulation for low capacitance
Data pair: 100% isolated foil shield with drain wire
Data pair: 105 Ohm, 12.5 pF/FT low capacitance
Power pair: 18 AWG 7-strand annealed bare copper conductor
Power pair: PL-PVC, plenum rated PVC alloy insulation
Data and power components cabled on a common axis
Ripcord
PL-PVC, plenum rated PVC alloy outer jacket
NEC CMP, CEC CMP FT6, RoHS compliant

Applications

Plenum OEM support for AMX/Crestron/Lutron systems
Plenum RS-232C, RS-422, RS-485 plus low voltage power
Plenum analog and digital audio
300 watt max power at 500 feet recommended

View Product Details

List Price: $1,190.00

In Stock:

View Payment Options

Recommended for you

Liberty LLINX-D - Grey OEM Systems for Crestron LLINX 5e Composite Cable Reel

The Liberty LLINX-D is Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and an 18 AWG stranded, twisted, and unshielded power pair overall jacketed NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Model: LLINX-D Specifications
Description	Grey OEM Systems Universal Control 22 AWG 1 Pair Shielded and 18 AWG 2 Conductor Composite Plenum Cable Reel
Electrical
22 AWG DCR	15.7 Ω / 1000' \| 51.5 Ω / KM
Shield DCR	22.5 Ω / 1000' \| 73.8 Ω / KM
Mutual capacitance	12.5 pF/FT \| 41.0 pF/M
Impedance	105 Ω
Velocity of Propagation	82%
Voltage rating	300V
18 AWG DCR	6.74 Ω / 1000' \| 22.11 Ω / KM
Maximum current	3.0A@25 °C
NEC	CMP 75 °C
CEC	CMP FT6 60 °C
Reel	1000' \| 305M
Weight	29 Lbs/1000' \| 44 Kg/KM
Conductor	22 AWG data pair 7-strand annealed bare copper conductors Foam fluorinated ethylene propylene Wall thickness: 0.019" \| 0.51mm Diameter: 0.068" \| 1.73mm 100% aluminum/poly shield foil in 24 AWG 7-strand tinned copper drain wire
Electrical	22 AWG DCR: 15.7 Ω / 1000' \| 51.5 Ω/KM Shield DCR: 22.5 Ω / 1000' \| 73.8 Ω/KM Mutual capacitance: 12.5 pF/FT \| 41.0 pF/M Impedance: 105 Ω Velocity of Propagation: 82% Voltage rating: 300V 18 AWG DCR: 6.74 Ω / 1000' \| 22.11 Ω/KM Maximum current: 3.0A@25°C
Insulation	18 AWG power pair 16-strand annealed bare copper conductors Diameter: 0.068" \| 1.73mm Plenum rated polyvinyl chloride Wall thickness: 0.009" \| 0.23mm Diameter: 0.065" \| 1.65mm
Regulatory	NEC: CMP 75°C CEC: CMP FT6 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Data pair: Blue, White Power pair: Red, Black
Packages	Reel: 1000' \| 305M Weight: 29 Lbs/1000' \| 44 Kg/KM
Assembly	Shielded data pair and power pair cabled on a common axis
Installation	Pull Tension: 40 Lbs \| 178 N Bend radius: 2.11" \| 54mm unloaded Bend radius: 4.22" \| 108mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F \| 0°C ambient temperature
Construct	Ripcord under jacket
Applications	LibertyLinx® universal system control cable Plenum RS-232C, RS-485 simplex data and control Plenum systems control and communication cable
Performance	18 AWG power: 500 feet maximum
