| I/O Connections |
| HDMI Input |
Four (4) HDMI Type A Receptacle Connector |
| Analog Audio In |
Four (4) 3 pole Euroblock Connectors |
| Supported Audio and Video |
| Maximum Video Compatibility |
Deep Color 48/36/30/24 Bit at 1080p, 3D |
| Video Compliance |
HDMI and HDCP (Selectable) |
| HDMI Audio Compatibility |
Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio |
| Analog to Digital Conversion Audio Format |
PCM 2 Channel 48kHz |
| Analog Audio |
| Performance per Channel |
Unbalanced Stereo Audio, -10 dBV nominal |
| Pinout (Left to Right) |
Left (+), Ground, Right (+) |
| Input Impedance |
>10kΩ |
| Frequency Response |
20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise |
< 0.002% from 20 Hz to 20 kHz |
| HDMI Signal Characteristics |
| Maximum Distance |
5 m (pre-made cable) |
| Bandwidth |
340 MHz (10.2 Gbps) |
| Gain |
0 dB |
| Resolution Range |
Up to 1920x1200 |
| Crosstalk |
< -50 dB at 5 KHz |
| Input Level |
TMDS 2.9V/3.3V |
| Chassis and Environmental |
| Construction |

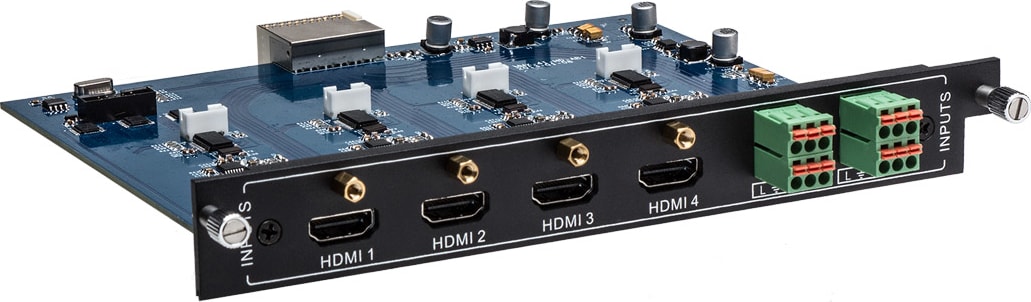

Plug-in card with keyed black metal plate |
| Shipping Weight |
0.45 kg (1 lbs.) |
| Operating Temperature |
0° to +40° C (+32° to +104° F) |
| Operating Humidity |
20% to 90%, Non-condensing |
| Storage Temperature |
-10° to +60° C (+14° to +140° F) |
| Storage Humidity |
20% to 90%, Non-condensing |
| Other |
| Warranty |
2 years |
| Matrix Switcher Compatibility |
FLX-88, FLX-1616, FLX-3232 |
