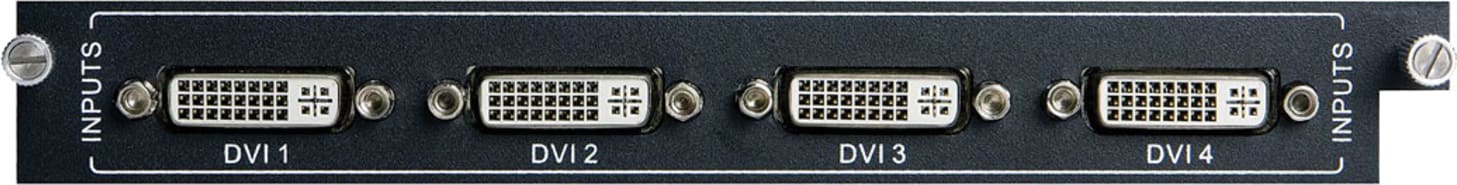

Liberty FLX-DI4 Input Card

Name: Liberty FLX-DI4 Input Card
Brand: Liberty
SKU: LibertyFLX-DI4
Price: 740.66 USD
Availability: InStock

0 reviews | UPC: 060144600044 | Model: Liberty FLX-DI4

Compare

Input Card for Card-Based Matrix Switcher - DVI-D

Single link DVI-D input card for FLX-8X8A, FLX-88, FLX-1616, FLX-3232
Four DVI-D inputs
HDMI and HDCP compliance
Applications:
- Designed for use with FLX-8X8A, FLX-88, FLX-1616, FLX-3232
- Ideal for the medical industry and other applications requiring high-definition locking connectors

View Product Details

List Price: $822.95

In Stock:

Recommended for you

I/O Connections
Single Link DVI Input	Four (4) Female DVI 24+5
Supported Video
Input Signal Types	Single Link DVI-D up to 1920x1200
Video Compliance	HDMI and HDCP
EDID and DDC	Actively Buffered; Supports DVI and HDMI standards
DVI Signal Characteristics
Maximum Distance	5 m (pre-made cable)
Bandwidth	340 MHz (10.2 Gbps)
Gain	0 dB
Resolution Range	640x480 - 1920x1200
Crosstalk	< -50 dB at 5 KHz
Input Level	TMDS 2.9V/3.3V
Chassis and Environmental
Construction	Plug-in card with keyed black metal plate
Shipping Weight	0.37 kg (0.81 lbs.)
Operating Temperature	0° to +40°C (+32° to +104°F)
Operating Humidity	20% to 90%, Non-condensing
Storage Temperature	-10° to +60°C (+14° to +140°F)
Storage Humidity	20% to 90%, Non-condensing
Other
Warranty	2 years
Matrix Switcher Compatibility	FLX-88, FLX-1616, FLX-3232
