| I/O Connections |
| HDBaseT Port |
Four (4) 8P8C port (Shielded RJ45) |
| Analog Audio Out |
Four (4) 3.5 mm TRS |
| RS232 |
Four (4) 3 pole Euroblock Connectors |
| Supported Audio, Video and Control |
| Maximum Video Compatibility at 70 m |
Deep Color 36/30/24 Bit at 1080p |
| Maximum Video Compatibility at 40 m |
Deep Color 48 Bit at 1080p, 3D |
| Video Compliance |
HDMI and HDCP |
| Embedded Audio |
Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio |
| RS232 Baud Rate |
Up to 115200 baud |
| Analog Audio |
| Performance per Channel |
Unbalanced Stereo Audio, -10 dBV nominal |
| Pinout |
TIP - Left (+), RING – Right (+), SLEEVE - Ground |
| Output Impedance |
50O |
| Frequency Response |
20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise |
< 0.002% from 20 Hz to 20 kHz |
| HDBaseT Signal Characteristics |
| Maximum Distance |
70 m |
| Cable Requirements |
Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern |
| Bandwidth |
10.2 Gbps |
| Gain |
0 dB – 10 dB at 100 MHz |
| Resolution Range |
800x600 – 1920x1200 |
| Signal to Noise Ratio (SNR) |
> 70 dB at 100 MHz over 100 m |
| Return Loss |
< -30 dB at 5 KHz |
| Total Harmonic Distortion (THD) |
< 0.005% at 1 KHz |
| Min-Max Signal Level |
< 0.3 V – 1.45 Vp-p |
| Differential Phase Error |
±10° at 135 MHz over 100 m |
| Chassis and Environmental |
| Construction |

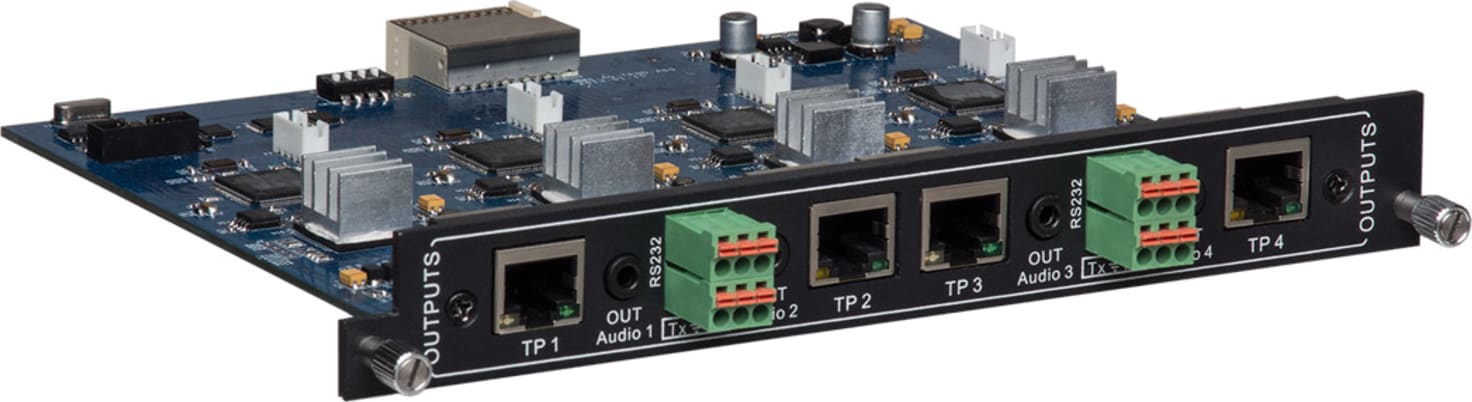

Plug-in card with keyed black metal plate |
| Shipping Weight |
0.43 kg (0.95 lbs.) |
| Operating Temperature |
0° to +40° C (+32° to +104° F) |
| Operating Humidity |
20% to 90%, Non-condensing |
| Storage Temperature |
-10° to +60° C (+14° to +140° F) |
| Storage Humidity |
20% to 90%, Non-condensing |
| Other |
| Warranty |
2 years |
| Matrix Switcher Compatibility |
FLX-88, FLX-1616, FLX-3232 |
| Compatible Receivers (A/V and Control) |
DIGI-HDE-R, DIGI-HD60C-R |
| Compatible Receivers (A/V Only) |
DIGI-HD70-R |
