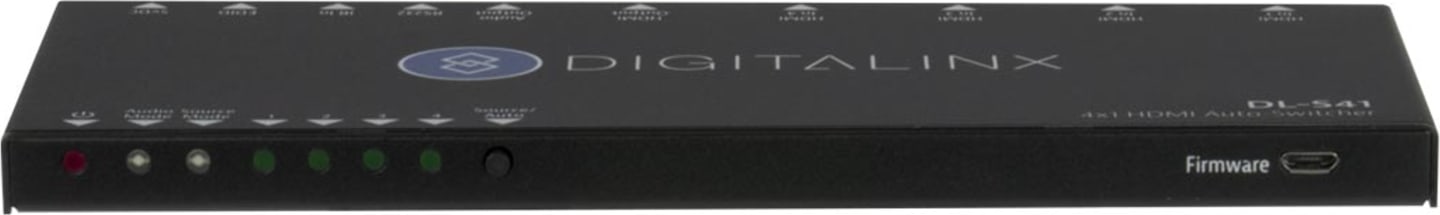

| Model: DL-S41 Specifications |
| I/O Connections |
| HDMI Inputs |
Four (4) HDMI Type A Receptacle |
| HDMI Output |
One (1) HDMI Type A Receptacle |
| Audio Output |
One (1) 3.5mm TRS Jack |
| IR Input |
One (1) 3.5mm TRS Jack |
| RS232 |
One (1) 3.5mm TRS Jack |
| EDID Selection |
Four (4) Position DIP Switch |
| 5v DC Power |
One (1) 2.35 mm Outside Diameter, 0.7 mm Inside Diameter Barrel (EIAJ-1) |
| Source/Auto Button |
One (1) 3 mm Microswitch |
| Firmware |
One (1) Micro USB Type B Receptacle |
| Supported Audio and Video |
| Maximum Video Compatibility |
Deep Color 48/36/30/24 Bit at 1080p, 3D, and 2160p/30 |
| Video Compliance |
HDMI, HDCP, CEC (Consumer Electronics Control), and ARC (Audio Return Channel) |
| Embedded Audio |
Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio |
| Input DDC Signal |
5.0 volts p-p (TTL) |
| Input Video Signal |
0.5 to 1.0 volts p-p |
| Maximum Passive HDMI Distance |
5 m (16 ft) |
| IR Carrier Frequency Range |
33-55kHz at 5 volts |
| RS232 Baud Rate |
9600 baud |
| Chassis and Environmental |
| Enclosure |
Painted aluminum |
| Dimensions (W x H x D) |
193 mm x 80 mm x 11 mm (7.60 in x 3.15 in x 0.43 in) |
| Shipping Weight |
0.82 kg (1.8 lbs.) |
| Operating Temperature (Environment) |
0° to +40° C (+32° to +104° F) |
| Operating Temperature (Chassis) |
31° C (88° F) (S); 38° C (100° F) (R) |
| Operating Humidity (Environment) |
20% to 90%, Non-condensing |
| Storage Temperature (Environment) |
-10° to +60° C (+14° to +140° F) |
| Storage Humidity (Environment) |
20% to 90%, Non-condensing |
| Power, ESD, and Regulatory |
| Maximum Power Consumption |
5 watts |
| Power Supply Input Voltage |
100-240v AC at 50/60 Hz at 0.5 A |
| Power Supply Output Rating |
5v DC at 1 A |
| ESD Protection |
15kV |
| Device Regulatory |
CE, RoHS |
| Power Supply Regulatory |
CE, RoHS, TUV, UL, SGS |
| Other |
| Standard Warranty |
2 Years |
| Diagnostic Indicators |
Power, Audio Mode, Source Mode, Selected Input |
| Included Items |
Installation guide, power supply, AC adapters (AU, EU, UK, and US), RS232 cable, IR receiver, IR remote with battery, rubber feet, mounting "L" brackets (2 ea), mounting screws (4 ea) |
