| General Specification |
| I/O Connections |
| HDMI |
Inputs Four (4) HDMI Type A Receptacle |
| VGA |
Inputs Two (2) Female HD15-F Connector |
| Analog Audio Inputs |
Two (2) 3.5mm TRS Jack |
| HDMI Output |
One (1) HDMI Type A Receptacle |
| Digital (Optical) Audio Output |
One (1) EIAJ Optical Connector |
| Analog Audio Outputs |
One (1) 3.5mm TRS Jack, One (1) 3-Pole/3.5mm Euroblock |
| IR Input |
One (1) 3.5mm TRS Jack |
| RS232 |
One (1) 3-Pole/3.5mm Euroblock |
| 5V DC Power |
One (1) Threaded Barrel (5.5 mm OD; 2.6 mm ID) |

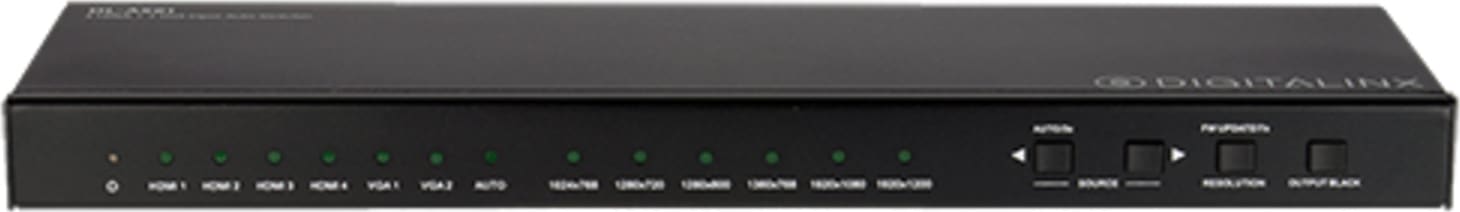

| Front Panel Control |
Four (4) Pushbuttons |
| Firmware |
One (1) USB Type A Receptacle |
| Supported Audio, Video, and Control |
| Supported Input Resolutions (HDMI/DVI) |
800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz,
1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz,
1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz,
1365x1024@60Hz, 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz,
1600x1200@85Hz, 1680x1050@60Hz, 1792x1344@60Hz, 1856x1392@60Hz, 1856x1392@75Hz, 1920x1080@60Hz,
1920x1200@60Hz, 1920x1440@60Hz, 3840x2160@24Hz, 3840x2160@30Hz, 3840x2160@25Hz, 4096x2160@24Hz,
4096x2160@25Hz, 4096x2160@30Hz |
| Supported Input Resolutions (VGA) |
800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz,
1280x768@60Hz, 1280x768@75Hz, 1280x960@60Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1365x1024@60Hz,
1365x1024@75Hz, 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz,
1680x1050@60Hz, 1792x1344@60Hz, 1920x1080@60Hz, 1920x1200@60Hz |
| VGA Scaling Resolutions |
1024x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1920x1080@60Hz, 1920x1200@60Hz |
| Video Compliance |
HDMI, HDCP |
| HDMI EDID |
Pass-through from Display, 1080p/PCM 2ch, 1080p/PCM 6ch, 1080p3D/PCM 6ch, 1080i/PCM 2 ch, 4k@30/PCM 2ch |
| VGA EDID |
1360x768 |
| Embedded Audio Input/Output |
Up to PCM 6 channel |
| Digital (Optical) Audio Output |
PCM: 6 channel (5.1) at 16, 20, or 24 bit |
| Analog Audio Frequency Response |
20Hz-20KHz |
| Analog Audio Input Impedance |
>10k ohm |
| Analog Audio Output Impedance |
50 ohm |
| Input DDC Signal |
5.0 volts p-p (TTL) |
| Input Video Signal |
0.5 to 1.0 volts p-p |
| Maximum Passive HDMI Distance |
5 m (16 ft) |
| IR Carrier Frequency Range |
33-55kHz at 5 volts |
| RS232 Baud Rate |
9600 baud |
| Chassis and Environmental |
| Enclosure |
Painted aluminum |
| Dimensions (H x W x D) |
28 mm x 350 mm x 110 mm (1.10 in x 13.78 in x 4.33 in) |
| Shipping Weight |
0.82 kg (1.8 lbs.) |
| Operating Temperature (Environment) |
0° to +40° C (+32° to +104° F) |
| Operating Temperature (Chassis) |
31° C (88° F) (S); 38° C (100° F) (R) |
| Operating Humidity (Environment) |
20% to 90%, Non-condensing |
| Storage Temperature (Environment) |
-10° to +60° C (+14° to +140° F) |
| Storage Humidity (Environment) |
20% to 90%, Non-condensing |
| Power, ESD, and Regulatory |
| Maximum Power Consumption |
3.8 watts |
| Power Supply Input Voltage |
100-240v AC at 50/60 Hz at 0.45 A |
| Power Supply Output Rating |
5V DC at 3 A |
| ESD Protection |
15kV |
| Device Regulatory |
CE, FCC, RoHS |
| Power Supply Regulatory |
CE, RoHS, UL, SGS, FCC |
| Other |
| Standard Warranty |
2 Years |
| Diagnostic Indicators |
Power, Selected Input, VGA Output Resolution |
| Included Items |
Installation guide, power supply, AC adapters (AU, EU, UK, and US), RS232 cable, IR receiver, IR remote with batteries,
rubber feet, mounting “L” brackets (2 ea), mounting screws (4 ea) |
