Liberty CEBUS-2N2 - Blue Structured Solutions Jacketed Composite Cable Reel

0 reviews | UPC: 601446158395 | Model: Liberty CEBUS-2N2

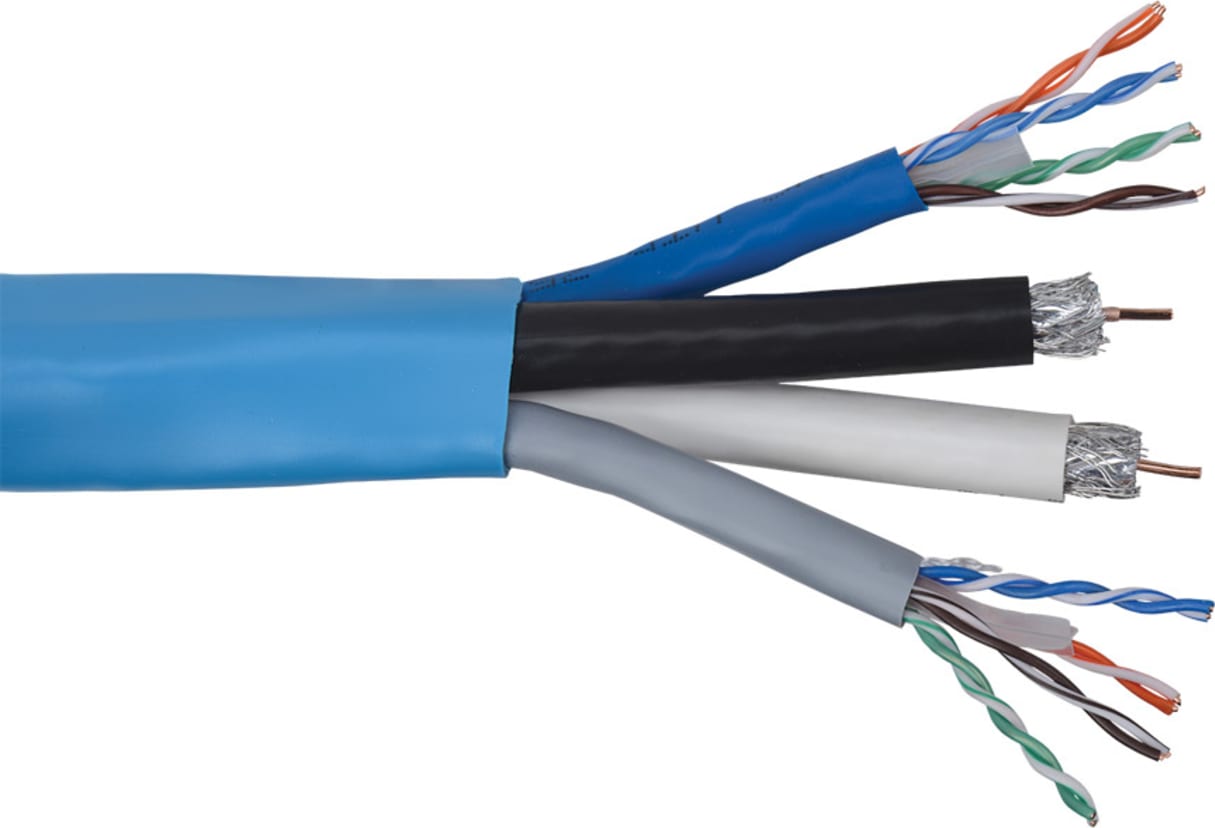

CEBUS-2N2 Main Image

Compare

Blue Structured Solutions 2 RG6Q BC +2 Category 6 UTP Jacketed Composite Cable

Cannot Ship Air

Structured composite 2 network and 2 coaxial cable
2 category 6 U/UTP LAN plus 2 RG6 Quad shield DBS coax cables
All 4 components cabled and overall jacketed
550 MHz category 6 and 3.0 GHz coaxial sweep test
Flame rated PVC jacket
NEC CM, CEC CMG FT4, RoHS compliant
500 foot spools
Applications:
- Horizontal LAN 10/100/1000BaseT Ethernet
- Audio, Video, Infrared, IP Control, CATV, DBS
- Balun infrastructure, Voice, Voice over IP
- PoE, HDBaseT, Analog and Digital Media

View Product Details

Sign-in for EDU Pricing!

In Stock:

View Payment Options

List Price: $2,334.38

Recommended for you

Liberty CEBUS-2N2 Accessories

Choose a Category

Adapter Kits

for the Liberty CEBUS-2N2

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Liberty CEBUS-2N2 - Blue Structured Solutions Jacketed Composite Cable Reel

Composite cable consisting of (2) Quad shield CATV/DBS RG6 coaxial cables and (2) UTP Category 6 cables under one jacket NEC type CMG and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Component 1
U/UTP category 6 cable
23 AWG solid annealed bare copper conductor
High density polyethylene
Diameter	0.040" \| 1.02mm
Polyvinyl chloride jacket
Thickness	0.020" \| 0.50mm
Diameter	0.228" \| 5.8mm
Component 2
RG6 quad shield coaxial cable
18 AWG solid annealed bare copper conductor
Foam polyethylene dielectric
Diameter	0.180" \| 4.57mm
100% APA tape and 60% 34 AWG aluminum braid
100% APA tape and 40% 34 AWG aluminum braid
Polyvinyl chloride jacket
Thickness	0.025" \| 0.64mm
Diameter	0.287" \| 7.30mm
Color Code
Category 6 jackets	Blue, Gray
Pair 1	Orange, White/orange stripe
Pair 2	Blue, White/blue stripe
Pair 3	Green, White/green stripe
Pair 4	Brown, White/brown stripe
RG6 Quad jackets	White, Black
Assembly
2 coaxial cables and 2 category 6 cables cabled on a common axis and overall jacketed
Construct
Ripcord under jacket
Jacket
Polyvinyl chloride
Colors	Blue
Wall thickness	0.032" \| .81mm
Diameter	0.701" \| 17.8mm
Electrical
Cat 6 DC resistance	22.31 Ω / 1000’ \| 73.20 Ω/KM
Mutual capacitance	14.0 pF/FT \| 45.92 pF/M
Impedance	100 ± 15 Ω
Mutual capacitance	14.0 pF/FT \| 45.92 pF/M
Impedance	100 ± 15 Ω
Propagation Delay (Skew)	45ns/100m MAX
Voltage rating	300V
RG6 quad DCR	6.5 Ω / 1000’ \| 21.32 Ω/KM
Impedance	75 Ω
Velocity of Propagation	82%
SRL 5-2200 MHz	-20dB
SRL 2.2-3 GHz	- 17dB
Regulatory
ANSI/TIA-568C Category 6
NEC	CMG 75°C
CEC	CMG FT4 60°C
EU RoHS 2002/95/EC Compliant
Packages
Reel	500’ \| 152M
Weight	173 Lbs/1000’ \| 258 Kg/KM
Installation
Pull Tension	250 Lbs \| 1112 N
Bend radius	7.01" \| 178mm unloaded
Bend radius	14.02" \| 356mm loaded
Applications
Smart home systems structured wiring support cable General purpose CATV/DBS, cable modem General purpose LAN, voice, and infrared General purpose BALUN support and media transmission
Performance
LAN: 300 feet
Passive Baluns up to 2500 feet
CATV to 236 feet
Final Outside Diameter (inches)	0.701

Tech Specs

Accessories/Cables - Misc Template
Cable Type	RG6, Round
Test Equipment General Attributes
Unique Features	Structured composite 2 network and 2 coaxial cable 2 category 6 U/UTP LAN plus 2 RG6 Quad shield DBS coax cables All 4 components cabled and overall jacketed
Warranty	2 YEARS
Warranty Details	Liberty AV Solutions warrants that all products sold will be free from defects in material and workmanship for two years from date of purchase. Liberty AV Solutions, at its option and/or expense, will replace or repair products that are proven to be defective. This warranty does not apply to any failure or damage due to misapplication, lack of proper maintenance, abuse, improper installation, or abnormal conditions of temperature, moisture, or corrosive matter, or alteration or repair by others in such manner which in Liberty's judgment adversely affects the product. This warranty constitutes the sole and exclusive remedy of the buyer and exclusive liability of Liberty AV Solutions, and is in lieu of any and all other warranties, expressed, implied or statutory as to merchantability, fitness for purpose sold, description, quality, productiveness or any other matter.
Safety Approval	RoHS Safety Approval NEC CM, CEC CMG FT4
Country of Origin	United States
