Liberty 24-4P-P-L6-EN-BLUSCS - Category 6 U/UTP EN Series 23 AWG 4 Pair Unshielded Cable (Blue)

Name: Liberty 24-4P-P-L6-EN-BLUSCS - Category 6 U/UTP EN Series 23 AWG 4 Pair Unshielded Cable (Blue)
Brand: Liberty
SKU: Liberty24-4P-P-L6-EN-BLUSCS
Price: 512.00 USD
Availability: InStock

0 reviews | Model: Liberty 24-4P-P-L6-EN-BLUSCS

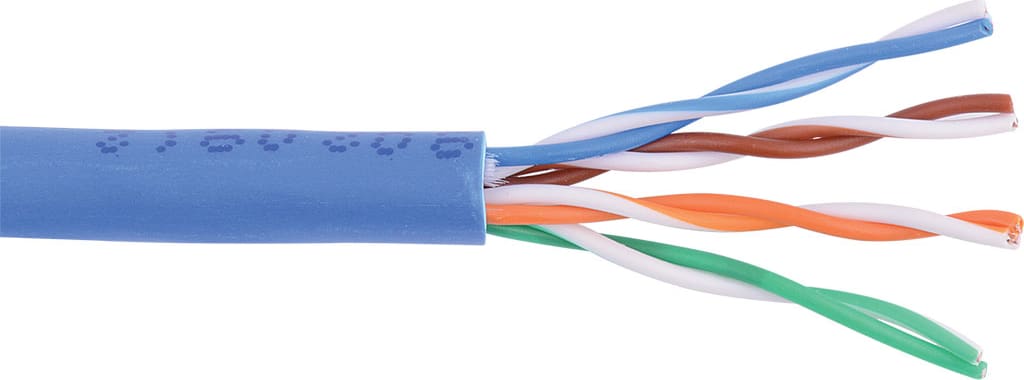

Liberty 24-4P-P-L6-EN-BLUSCS Blue Category 6 U/UTP

Compare

Blue Category 6 U/UTP EN Series 23 AWG 4 Pair Unshielded Cable

Blue Category 6 U/UTP EN series 23 AWG 4 pair unshielded cable
Solid annealed bare copper conductors
Fluoropolymer insulation
4 pairs twisted in varying lays and cabled
Plenum rated PVC jacket
TIA/EIA-568-C Category 6 and tested to 550 MHz
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools, Nested boxes, or Cool Spool Boxes

Applications

Horizontal LAN 10/100/1000BaseT Ethernet
Audio, Video, Infrared, IP Control
Balun infrastructure, Voice, Voice over IP
PoE, HDBaseT, Analog and Digital Media

View Product Details

List Price: $568.00

In Stock:

View Payment Options

Recommended for you

Liberty 24-4P-P-L6-EN-BLUSCS Blue Category 6 U/UTP EN Series 23 AWG 4 Pair Unshielded Cable Cool Spool

4 pair 23 AWG solid, twisted, and unshielded cable NEC type CMP and CEC type CMP FT6. Third party verified to ANSI/TIA-568C Category 6 performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

General Specifications
Conductor	23 AWG Solid annealed bare copper conductors Diameter: 0.0226" \| 0.574mm
Electrical	DC resistance: ≤ 20.12 Ω / 1000’ \| 65.99 Ω/KM DCR Unbalance: ≤ 5.0% Capacitance: 14.0 pF/FT \| 45.9 pF/M Impedance: 100 ± 15 Ω Propagation Delay (Skew): 45ns/100m MAX Velocity of Propagation: 71% Voltage rating: 300V Pair to ground capacitance Unbalance: ≤ 330 pF/100M Maximum current: 1.4A@25°C
Insulation	Fluorinated ethylene propylene Wall thickness: 0.008" \| 0.20mm Diameter: 0.0386" \| 0.981mm
Regulatory	ANSI/TIA-568-C Category 6 NEC: CMP 75°C CEC: CMP FT6 60°C EU RoHS-2 2011/65/EU Compliant
Color Code	Pair 1: Orange, White/orange stripe Pair 2: Blue, White/blue stripe Pair 3: Green, White/green stripe Pair 4: Brown, White/brown stripe
Packages	Reel: 1000’ \| 305M Weight: 33 Lbs/1000’ \| 50 Kg/KM
Assembly	Pairs twisted in varying lay lengths Each pair in a fluoropolymer X separator interstice Installation Pull Tension: 25 Lbs \| 111 N Bend radius: 2.20" \| 56mm unloaded Bend radius: 4.40" \| 112mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F \| 0°C ambient temperature
Construct	Ripcord under jacket
Applications	Plenum LAN systems 10/100/1000BaseT Plenum Phone, Voice, Video over IP and security video Plenum BALUN support and media infrastructure Plenum Infrared, audio
Shield	N/A
Performance	LAN: 300 feet Passive Baluns up to 2500 feet
Jacket	Plenum rated polyvinyl chloride Colors: Blue, White, Green, Yellow Wall thickness: 0.019" \| 0.483mm Diameter: 0.220" \| 5.59mm
Final Outside Diameter (inches)	0.22
